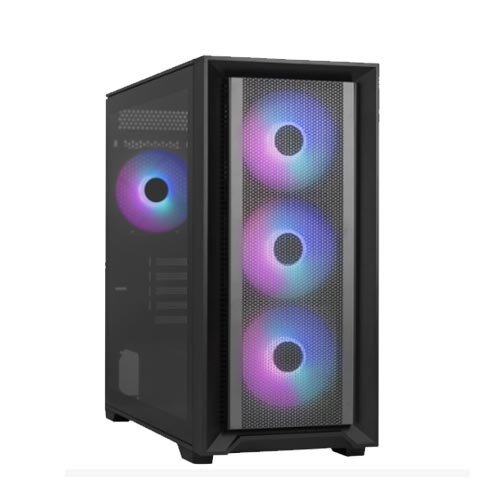

Aerocool Tern Mini Mid Tower Cabinet
Overview :
Compact case with high-end component support and extensive cooling options
Tern Mini features a ventilated front panel that fit well on a work desk or in your battlestation, but this case is more than just a pretty face. With pre-installed ARGB or FRGB fans, 11 total fan slots, and full support for all of your high-end components, Tern Mini is a statement case for any PC enthusiast.

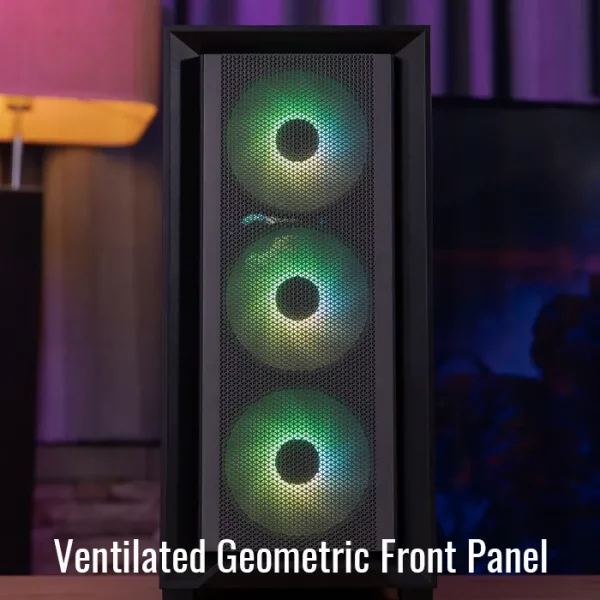

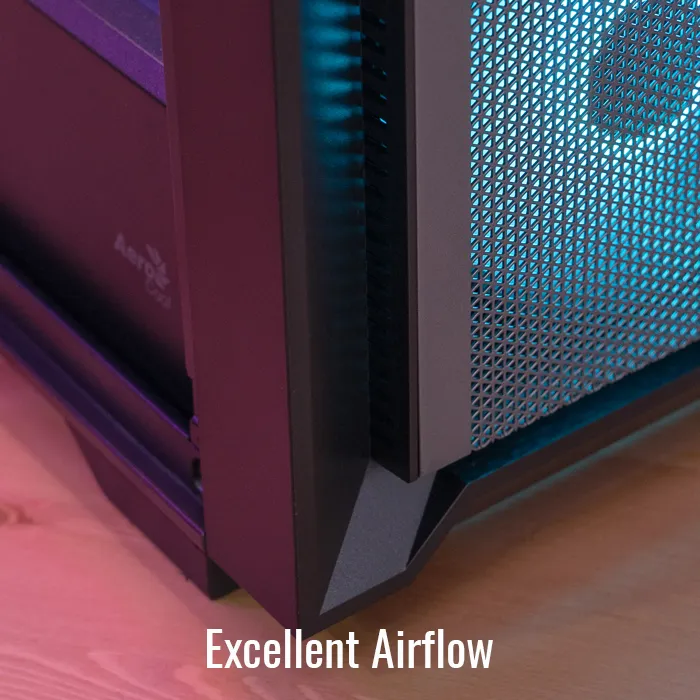

- Sleek black finish and ventilated geometric front panel for a modern look and smooth airflow
- Full tempered glass side panel for easy viewing

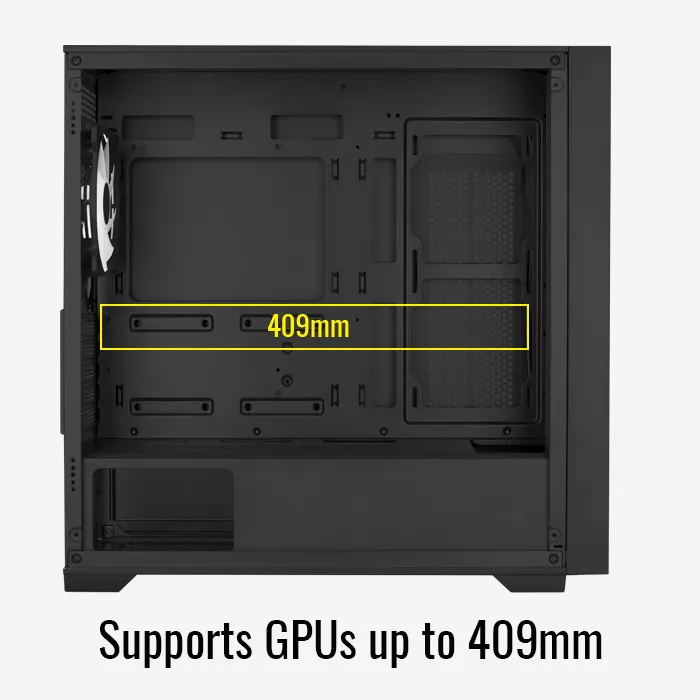

- Accommodates high-end GPUs up to 409mm

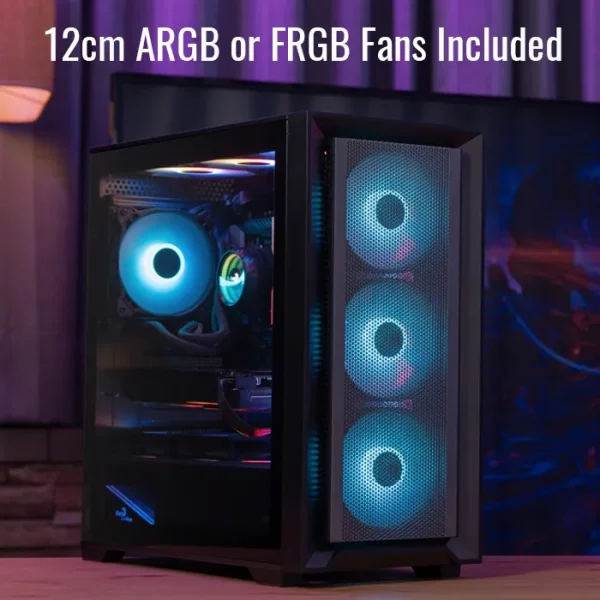

- ARGB or FRGB 120mm fans included for ample airflow and personalized lighting
- Includes 5-port PWM ARGB control hub for a customized experience (Tern Mini-BK-v2 only)

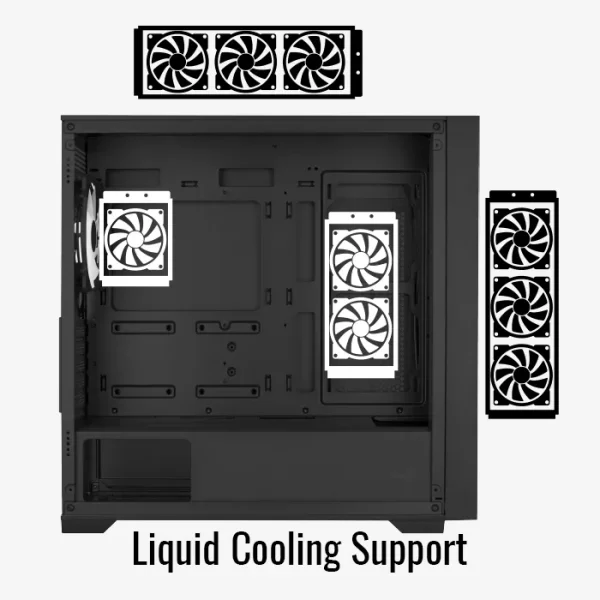

- Top and front liquid cooling 360mm support; side support up to 240mm
- Versatile motherboard compatibility: Micro ATX/mini-ITX
- Easy-to-clean magnetic filter at top, front and side for dust filtration
- Up to 11 front, top, side, rear, and under-GPU fan slots
- Neat cable management with 24mm depth
Specification :
| Model | Tern Mini-BK |
| Case Type | Mini Tower |
| Color | Black |
| Body Material | SPCC |
| Front Panel Material | ABS + SPCC |
| Steel Thickness | 0.6mm |
| Motherboards | Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 210 x 435 x 415 mm (W x H x D) |
| Case Dimensions (Overall) | 210 x 450 x 463 mm (W x H x D) |
| 3.5” Drive Bays | 2 Max. (1x 3.5” and 1 x 3.5”/2.5″) |
| 2.5” Drive Bays | 3 Max. (2 x 2.5” and 1 x 2.5”/3.5”) |
| Expansion Slots | 5 |
| GPU Clearance | Supports GPU up to 409mm (without side fan and front radiator) |
| CPU Cooler Clearance | Supports CPU cooler up to 162mm |
| Air Cooling | Front: 120mm x 3 or 140mm x 2 (Max.) |
| Tern Mini-BK-V1:Included FRGB 120mm x 3 | |
| Tern Mini-BK-V2:Included ARGB 120mm x 3 | |
| Top: 120mm x 3 or 140mm x 2 (Max.) | |
| Side: 120mm x 2 (Max.) | |
| Rear: 120mm x 1 (Max.) | |
| Tern Mini-BK-V1: Included FRGB 120mm x 1 | |
| Tern Mini-BK-V2: Included ARGB 120mm x 1 | |
| PSU Shroud: 120mm x 2 (Max.) | |
| Liquid Cooling | Front: 120/240/280/360mm Radiator (Optional) |
| Top: 120/240/280/360mm Radiator (Optional) | |
| Side: 120/240mm Radiator (Optional) | |
| Rear: 120mm Radiator (Optional) | |
| I/O Ports | USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic. |
| Internal Cable Management Depth | 24mm |
| Power Supply | ATX PSU (Including cables, up to 220mm) (Optional) |
