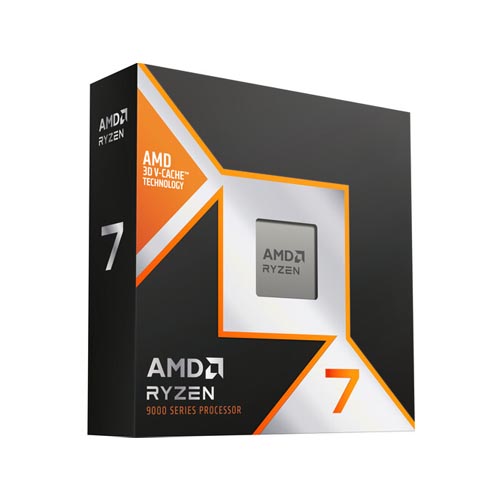

AMD Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor 100-100001084WOF
Overview :
For gamers looking to upgrade their socket AM5 motherboards, the Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor is ready to let you boost frame rates and graphics settings in the latest triple-A titles. Like other X3D CPUs, the 9800X3D features AMD 3D V-Cache technology designed to boost gaming performance by positioning its 96MB of ultra-fast stacked L3 cache close to the cores. Built upon Zen 5 architecture and providing eight-core, sixteen-thread processing, the 9800X3D can achieve a 4.7 GHz base clock speed, with a max boosted clock of 5.2 GHz. Other advanced technologies that are supported include PCIe 5.0 for high-end graphics cards and SSDs, and up to 192GB of speedy DDR5-5600 memory.
AMD EXPO
Ryzen-optimized AMD EXPO (Extended Profiles for Overclocking) profiles provide a user-friendly method to overlocking your DDR5 memory when using the Ryzen 7 9800X3D with your socket AM5, increasing software load speeds and boosting overall gaming performance.
Additional Features
Unlocked to support CPU overclocking
120W TDP (Thermal Design Power) with no active cooling provided
Integrated Radeon graphics
Increase CPU speed with Precision Boost 2
Specification :
| General | |
| CPU Model | AMD Ryzen 7 9800X3D |
| CPU Socket | AM5 |
| Manufacturing Process | 4 nm |
| Maximum Number of PCIe Lanes | 28 (Revision 5.0) |
| Unlocked | Yes |
| Performance | |
| Number of Cores | 8 |
| Number of Threads | 16 |
| Base Clock Speed | 4.7 GHz |
| Maximum Boost Speed | 5.2 GHz |
| Dedicated Neural Processor Unit (NPU) | No |
| L3 Cache | 96 MB |
| Memory Support | |
| Maximum Capacity | 192 GB |
| Memory Support | DDR5 Up to MT/s |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Power | |
| Thermal Design Power (TDP, Max) | 120 W |
| Included Thermal Solution | No |
| Maximum Temperature | 203°F / 95°C |
| Thermal Monitoring Technologies | No |
| Technology | |
| AES Support | Yes |
| Extension | AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: AMD-V |
| Performance Technologies | AMD EXPO, Precision Boost 2 |
| Integrated Graphics | |
| Integrated Graphics | AMD Radeon |
| Output Support | DisplayPort |
