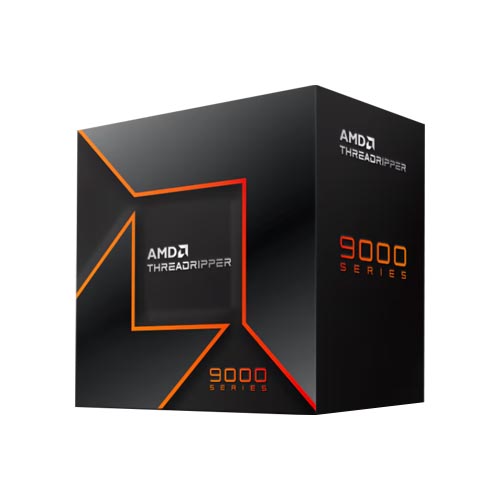

AMD Ryzen Threadripper 9960X Workstation Processor 100-100001595WOF
Overview :
Designed to Deliver. Built for Breakthroughs. The World’s Fastest Workstation Processor.
Specification :
| General Specifications | |
| Name | AMD Ryzen™ Threadripper™ 9960X |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 9000 Series |
| Form Factor | Desktops |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Shimada Peak |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 24 |
| Multithreading (SMT) | Yes |
| # of Threads | 48 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 1920 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 5 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Socket | sTR5 |
| Supporting Chipsets | TRX50 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 – 64-Bit Edition |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 92 , 88 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 4 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 6400 MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Product IDs | |
| Product ID Boxed | 100-100001595WOF |
| Security, Virtualization, and Manageability | |
| DASH support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor Support | Yes |
| Windows Secure Boot Support | Yes |
| UEFI Secure Boot Support | Yes |
| Windows Device Guard Support | Yes |
| Guest Mode Execution (GMET) Trap Support | Yes |
| Virtualization-Based Security (VBS) Support | Yes |
| Windows Secured-Core PC Support | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) Support | Yes |
| AMD-V Nested Paging (RVI) Support | Yes |
| AMD AVIC (Interrupt Virtualization) Support | Yes |
| AMD-Vi (I/O MMU Virtualization) Support | Yes |
| Second Level Address Translation (SLAT) Supported | Yes |
| Advanced Encryption Standard New Instructions (AES-NI) | Yes |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| FIPS Certification | In Review |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
