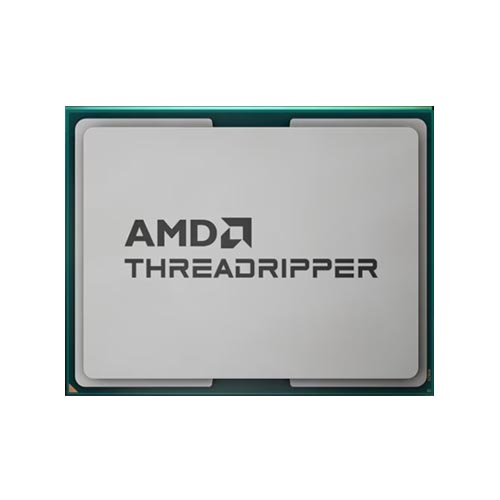

AMD Ryzen Threadripper 9970X Workstation Processor Tray 100-100001594
Overview :
Designed for enthusiasts, creators, and professionals who require workstation-grade performance, the AMD Ryzen Threadripper 9970X 4.0 GHz 32-Core sTR5 Processor provides improved core counts, massive memory bandwidth, and next-gen platform capabilities. The processor features 32 cores and is built using the 4nm Zen 5 architecture with the sRT5 socket.
With a 4.0 GHz base clock speed and 128MB of L3 cache, this processor significantly reduces rendering times for 8K video, high-res photos, and 3D models. You can also overclock this processor up to 5.4 GHz. This CPU supports up to a total of 92 PCIe 5.0 lanes, 88 of which are usable. It also supports quad-channel 6400 MT/s DDR5 ECC RAM for fast multitasking. Whether you’re rendering cinematic VFX, simulating real-world physics, or locally fine-tuning billion-parameter AI models, the Ryzen Threadripper 9970X is built to break bottlenecks and accelerate innovation.
Please note that a CPU cooler is NOT included.
This processor does not come with integrated graphics and requires a dedicated graphics card (sold separately).
AMD EXPO
The AMD Extended Profiles for Overclocking (AMD EXPO Technology) was developed to allow for user-friendly memory overclocking support of all types of memory, giving users an easy path to accelerated power to achieve accelerated memory in their system.
Additional Details
This processor offers 32 cores (64 threads), which enables efficient content creation, rapid compiling, and local AI training without the need to offload to the cloud, which can help reduce cost, latency, and improve privacy.
Specification :
| General Specifications | |
| Name | AMD Ryzen™ Threadripper™ 9970X |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 9000 Series |
| Form Factor | Desktops |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Shimada Peak |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 32 |
| Multithreading (SMT) | Yes |
| # of Threads | 64 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 4 GHz |
| L1 Cache | 2560 KB |
| L2 Cache | 32 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 5 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Socket | sTR5 |
| Supporting Chipsets | TRX50 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 – 64-Bit Edition |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 92 , 88 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 4 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 6400 MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Product IDs | |
| Product ID Boxed | 100-100001594WOF |
| Product ID Tray | 100-000001594 |
| Security, Virtualization, and Manageability | |
| DASH support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor Support | Yes |
| Windows Secure Boot Support | Yes |
| UEFI Secure Boot Support | Yes |
| Windows Device Guard Support | Yes |
| Guest Mode Execution (GMET) Trap Support | Yes |
| Virtualization-Based Security (VBS) Support | Yes |
| Windows Secured-Core PC Support | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) Support | Yes |
| AMD-V Nested Paging (RVI) Support | Yes |
| AMD AVIC (Interrupt Virtualization) Support | Yes |
| AMD-Vi (I/O MMU Virtualization) Support | Yes |
| Second Level Address Translation (SLAT) Supported | Yes |
| Advanced Encryption Standard New Instructions (AES-NI) | Yes |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| FIPS Certification | In Review |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
