Antec AX90 ARGB (ATX) Mid Tower Cabinet Black
Overview :
The AX90 Black is a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously
Features:
Unique Design & Powerful Heat Dissipation
The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.

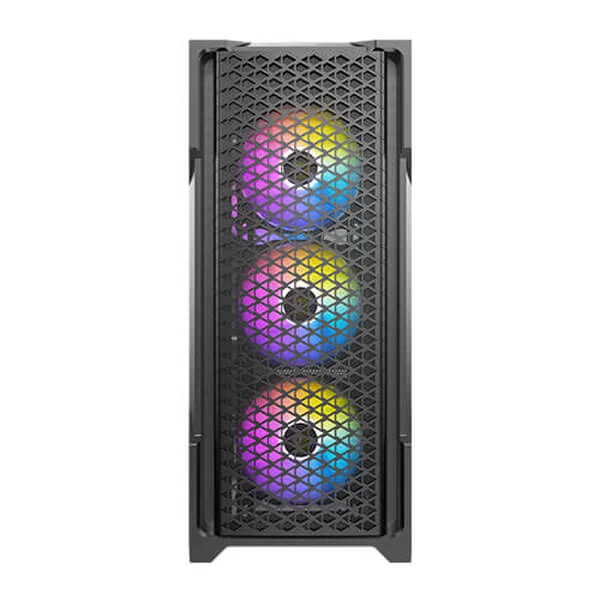

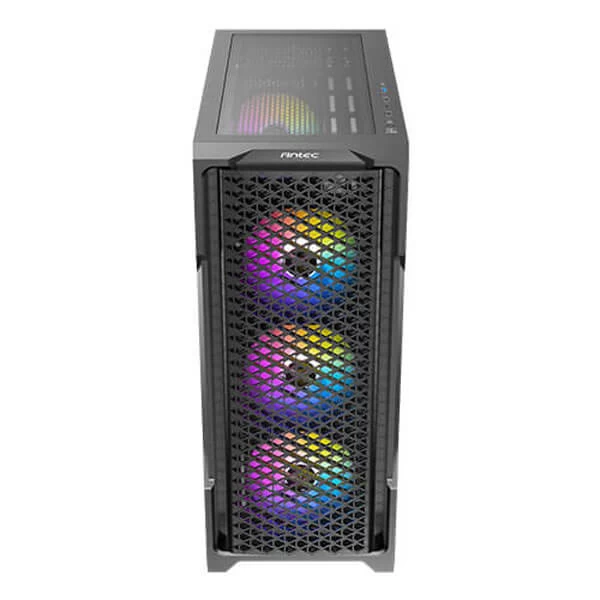

Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
MAXIMUM COOLING POTENTIAL
The spacious interior can accommodate both front and upper radiators up to 360mm.
Powerful Cooling
Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.
High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.
Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Specification :
| Model | AX90 |
| Color | Black |
| Fan | |
| Dimensions | 473 x 210 x 486mm(DWH) |
| Form Factor | Mid Tower |
| Materials | Steel Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO |
| Side Panel | 4MM Tempered glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ /2.5″ | 02-Jan |
| 2.5″ | 2 |
| Fan | |
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power supply | 2 x 120mm |
| Side | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm ARGB fans in front 1x 120mm ARGB fan in rear |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Side | 120 / 240mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Length | ≤ 385mm |
| Max CPU Cooler Height | ≤ 160mm |
| Max PSU Length | (Include cable) ≤ 220mm(with HDD) |
| (Include cable) ≤ 410mm(without HDD) | |
| Miscellaneous | |
| Dust Filter | Front / Top / Bottom / Right Hand Side |
| Warranty | 1 Years |
