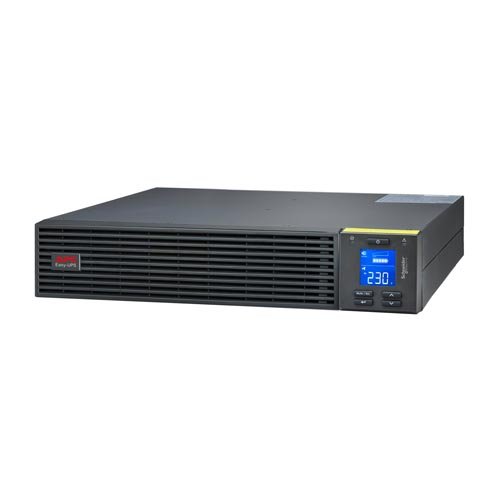

APC SRV3KL-IN 3KVA/2400W Rackmount 2U
Overview :
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management.
Specification :
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V |
| 240 V | |
| Input Connection Type | IEC 60320 C20 |
| Input protection type | Circuit breaker |
| Switching current capacity | 20 A |
| Input voltage limits | 110…280 V half load |
| 160…280 V full load | |
| Network frequency | 40…70 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Output voltage | 220 V |
| 240 V | |
| Rated power in W | 2400 W |
| rated power in VA | 3000 VA |
| Output connection type | 4 India 3-pin 6A |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 03:01 |
| Harmonic distortion | 3% |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2400 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Efficiency | 90 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBCV202 |
| Graphs | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Complementary | |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid external included |
| Control panel | Multifunction LCD status and control console |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port |
| USB port | |
| Available expansion slot | |
| Surge energy rate | 600 J |
| Number of rack unit | 2U |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Colour | Black (RAL 7010) |
| Height | 88 mm |
| Width | 438 mm |
| Depth | 632 mm |
| Net weight | 28 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | No |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted with kit sold separately |
| Max runtime | 3 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Environment | |
| Product certifications | BIS |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…60 °C |
| Storage altitude | 0…15000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 910 Btu/h |
| Operating altitude | 0…3000 m |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Extended runtime | 0 |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery charger power | 60 W rated |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.8 cm |
| Package 1 Width | 79.4 cm |
| Package 1 Length | 57 cm |
| Package 1 Weight | 32 kg |
| Contractual warranty | |
| Warranty (in months) | 24 |
