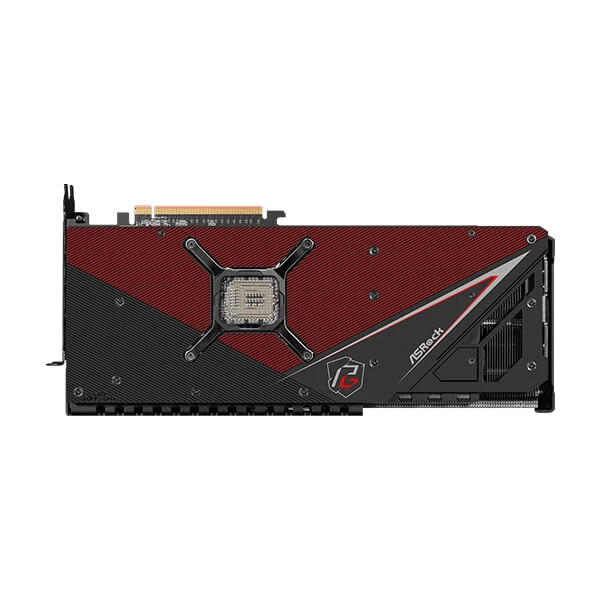

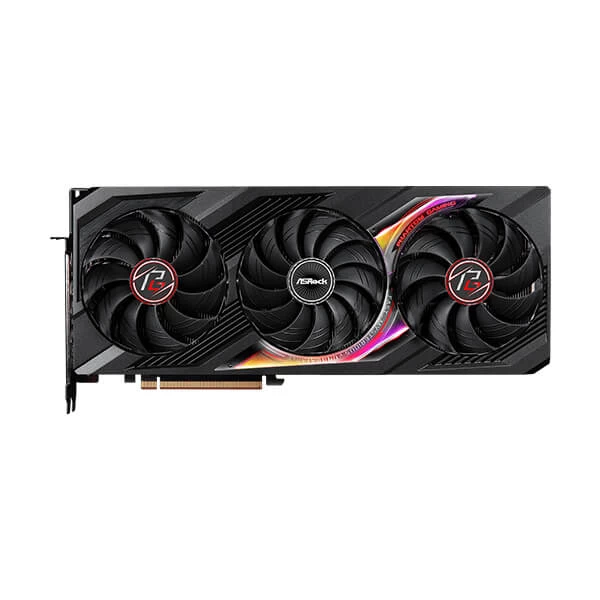

Asrock AMD Radeon RX 7900 XTX Phantom Gaming 24GB OC Graphic Card RX7900XTX PG 24GO
Overview :
Clock: GPU / Memory
Boost Clock*: Up to 2615MHz / 20Gbps
Game Clock**: 2455MHz / 20Gbps
Key Specifications
AMD Radeon™ RX 7900 XTX GPU
24GB GDDR6 on 384-Bit Memory Bus
96 AMD RDNA™ 3 Compute Units (With Rt Ai Accelerators)
96MB AMD Infinity Cache™ Technology
PCI® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Ring Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Specification :
| Graphics Engine | AMD Radeon™ RX 7900 XTX |
| Bus Standard | PCI® Express4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 24GB |
| Engine Clock | Boost Clock*: Up to 2615 MHz |
| Game Clock**: 2455 MHz | |
| *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. | |
| **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 6144 |
| Memory Clock | 20 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | 3 x DisplayPort™ 2.1* |
| 1 x HDMI™ 2.1 | |
| *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously. | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 1000W |
| Power Connector | 3 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 330 x 140 x 57.6 mm, 2.8-slot |
| Net Weight | 1550 g |
