ASRock B550M WiFi SE AMD Motherboard
Overview :
ASRock B550M WiFi SE supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors and supports DDR4 4733+ (OC).HDMI as Graphics Output Options. Intel 802.11ac WiFi Module + Bluetooth 4.2 connectivity
Features:
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek Gigabit LAN
Intel® 802.11ac WiFi Module + Bluetooth 4.2
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Specification :
| Model | B550M WiFi SE |
| Unique Feature | ASRock Super Alloy |
| XXL Aluminum Alloy Heatsink | |
| Premium 50A Power Choke | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| 2oz Copper PCB Intel® 802.11ac WiFi | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* |
| Digi Power design | |
| 8 Power Phase design | |
| Chipset | AMD PRO565 |
| Memory | Dual Channel DDR4 Memory Technology |
| 4 x DDR4 DIMM Slots | |
| AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* | |
| Max. capacity of system memory: 128GB | |
| Supports Extreme Memory Profile (XMP) memory modules | |
| 15μ Gold Contact in DIMM Slots | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Supports “Plug and Play” | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB Voltage Multi-adjustment | |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.1 | |
| Supports HDCP 2.3 with HDMI 2.1 Port | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port | |
| Supports Microsoft® PlayReady | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| PCB Isolate Shielding | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Realtek RTL8111H | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Wireless LAN | Intel® 802.11ac WiFi Module |
| Supports IEEE 802.11a/b/g/n/ac | |
| Supports Dual-Band (2.4/5 GHz) | |
| Supports high speed wireless connections up to 433Mbps | |
| Supports Bluetooth 4.2+ High speed class II | |
| Slots | AMD Ryzen series CPUs (Vermeer and Matisse) |
| – 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* | |
| AMD Ryzen series APUs (Cezanne and Renoir) | |
| – 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* | |
| AMD Ryzen series APUs (Picasso) | |
| – 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* | |
| – 1 x PCI Express 3.0 x1 Slot | |
| – Supports AMD Quad CrossFireX™ and CrossFireX™ | |
| – 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module | |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso) | |
| Connector | 1 x COM Port Header |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 2 x RGB LED Headers* | |
| 2 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |

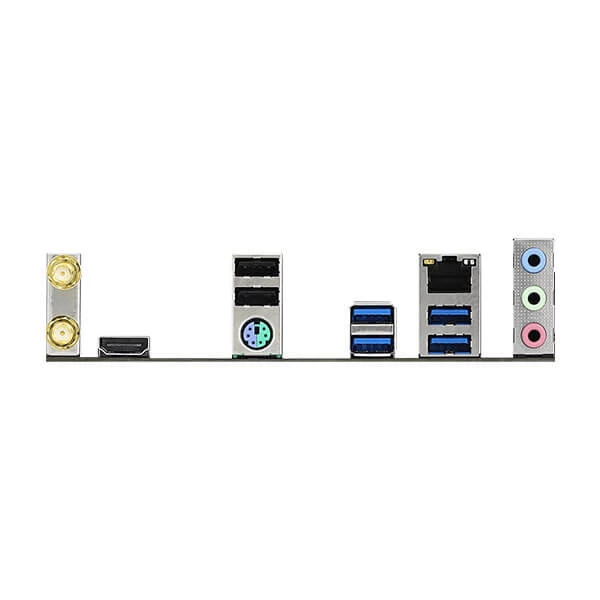

| Rear Panel I/O | 2 x Antenna Ports |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| ASRock Motherboard Utility (A-Tuning) | |
| ASRock Polychrome SYNC | |
| ASRock XFast LAN | |
| UEFI | |
| ASRock Full HD UEFI | |
| ASRock Instant Flash | |
| Accessories | 1 x I/O Shield |
| 1 x User Manual | |
| 2 x SATA Data Cables | |
| 2 x ASRock WiFi 2.4/5 GHz Antennas | |
| 1 x Screw for M.2 Socket | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans | |
| Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Solid Capacitor design | |
| 2oz Copper PCB | |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
