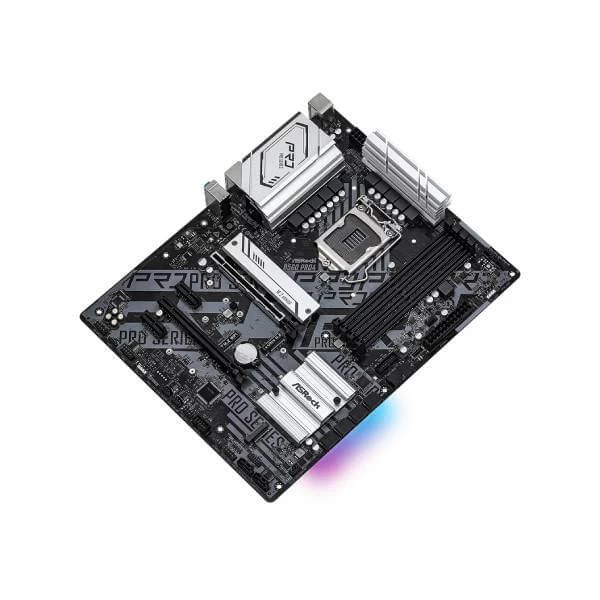

ASRock B560 Pro4 LGA 1200 Intel B560 ATX Intel Motherboard
Overview :
- Intel B560
- Supports 10th Gen Intel Core Processors
- Supports 11th Gen Intel Core Processors
- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800 (OC)*
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600 (OC)*
- * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666.
- * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
- * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
Specification :
| Brand | ASRock |
| Model | B560 Pro4 |
| Supported CPU | |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Gen Intel Core Processors |
| Supports 11th Gen Intel Core Processors | |
| Chipsets | |
| Chipset | Intel B560 |
| Memory | |
| Number of Memory Slots | 4×288pin |
| Memory Standard | 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800 (OC)* |
| 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600 (OC)* | |
| * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666. | |
| * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 4.0 x16 | 11th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))* |
| 10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))* | |
| * Supports NVMe SSD as boot disks | |
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)** |
| 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
| 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** | |
| ** Supports Intel Optane Technology (M2_2) | |
| ** Supports NVMe SSD as boot disks | |
| ** Supports ASRock U.2 Kit | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel I219V |
| Max LAN Speed | 10/100/1000Mbps |
| Rear Panel Ports | |
| Back I/O Ports | 3 x Antenna Mounting Points |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connectors | |
| Other Connectors | 1 x COM Port Header |
| 1 x SPI TPM Header | |
| 1 x Chassis Intrusion and Speaker Header | |
| 2 x RGB LED Headers | |
| * Support in total up to 12V/3A, 36W LED Strip | |
| 2 x Addressable LED Headers | |
| * Support in total up to 5V/3A, 15W LED Strip | |
| 1 x CPU Fan Connector (4-pin) | |
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) | |
| Physical Spec | |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Features | |
| Features | ASRock Super Alloy |
| Premium 50A Power Choke | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology | |
| ASRock Steel Slot | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| Packaging | |
| Package Contents | Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables | |
| 4 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket |
