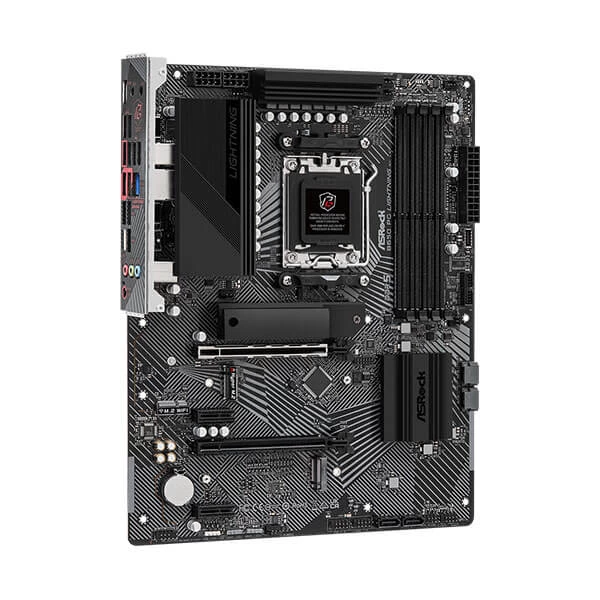

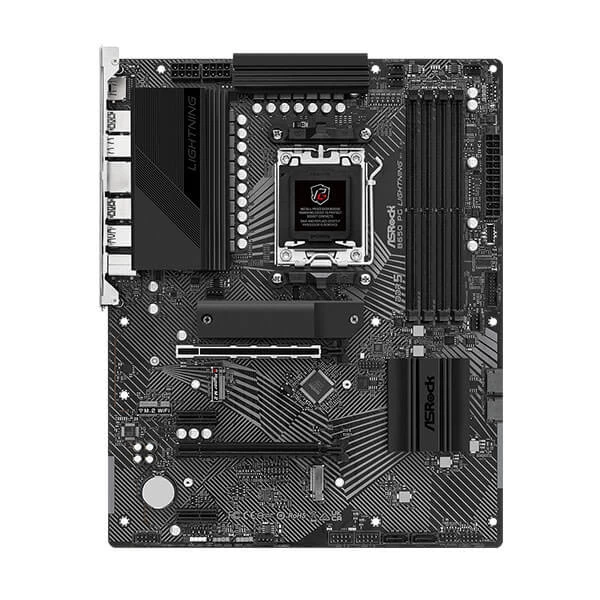

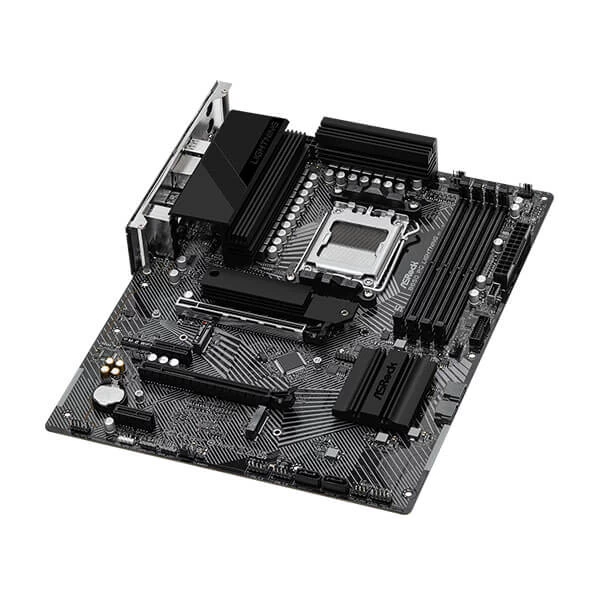

ASRock B650 PG Lightning Motherboard
Overview :
- B650 PG Lightning
- Supports AMD Ryzen™ 7000 Series Processors
- 14 2 1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400 (OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2
- Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB
- 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
Specification :
Unique Feature | Superb Productivity – |
PCIe Gen5 (M.2) – | |
Dual Channel DDR5 | |
Rock-Solid Durability – | |
14 2 1 Power Phase, 60A SPS | |
Pre-Installed I/O Shield | |
Ultrafast Connectivity | |
2.5G LAN | |
ASRock Lightning Gaming Ports EZ Update | |
BIOS Flashback Button | |
ASRock Auto Driver Installer EZ Troubleshooter | |
ASRock Post Status Checker | |
CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
Chipset | AMD B650 |
Memory | Dual Channel DDR5 Memory Technology – |
4 x DDR5 DIMM Slots – | |
Supports DDR5 non-ECC, un-buffered memory up to 6400 (OC)* – Max. | |
capacity of system memory: 128GB* – | |
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
Nahimic Audio | |
LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
Dragon RTL8125BG Supports Phantom Gaming LAN Software | |
Smart Auto Adjust Bandwidth Control | |
Visual User Friendly UI | |
Visual Network Usage Statistics | |
Optimized Default Setting for Game, Browser, and Streaming Modes | |
User Customized Priority Control | |
Slots | CPU: – |
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode | |
Chipset: | |
1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode | |
2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4) | |
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
Storage | CPU: – |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode | |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
Chipset: – | |
1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode* – | |
4 x SATA3 6.0 Gb/s Connectors | |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
USB | 1 x USB 3.2 Gen2x2 Type-C (Rear) |
1 x USB 3.2 Gen2 Type-C (Front) | |
9 x USB 3.2 Gen1 (7 Rear, 2 Front) | |
8 x USB 2.0 (4 Rear, 4 Front) | |
Connector | 1 x SPI TPM Header |
1 x Power LED and Speaker Header | |
1 x RGB LED Header | |
3 x Addressable LED Headers | |
1 x CPU Fan Connector (4-pin) | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
1 x 24 pin ATX Power Connector | |
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
1 x Front Panel Audio Connector | |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver) | |
Rear Panel I/O | 2 x Antenna Mounting Points |
1 x HDMI Port | |
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) | |
7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub) | |
4 x USB 2.0 Ports | |
1 x RJ-45 LAN Port | |
1 x BIOS Flashback Button | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |
Software and UEFI | Software – |
ASRock Motherboard Utility (Phantom Gaming Tuning) – | |
ASRock Phantom Gaming LAN Software | |
ASRock Polychrome SYNC UEFI – ASRock Full HD | |
UEFI – | |
ASRock Auto Driver Installer | |
ASRock Instant Flash | |
Accessories | 1 x User Manual |
2 x SATA Data Cables | |
3 x Screws for M.2 Sockets | |
Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
8 Layer PCB | |
OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | FCC, CE |
ErP/EuP ready (ErP/EuP ready power supply is required) | |
Warranty | 3 Years |
