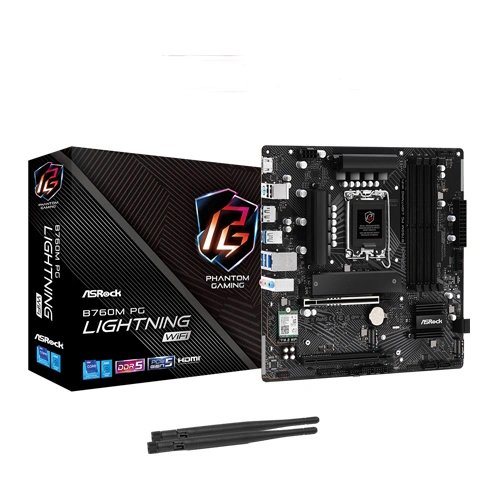

ASRock B760M PG Lightning WIFI M-ATX Motherboard
Overview :
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN, 802.11ax WiFi 6E + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Fan-Tastic Tuning
ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Specification :
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| Graphics Port | 1 x HDMI 2.1,1 x DisplayPort 1.4 |
| Expansion Slots | CPU: |
| 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| Chipset: | |
| 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
| Supports AMD CrossFire | |
| Back Panel I/O Ports | 2 x Antenna Ports |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen1 Type-C Port | |
| 3 x USB 3.2 Gen1 Type-A Ports | |
| 2 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connector | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
