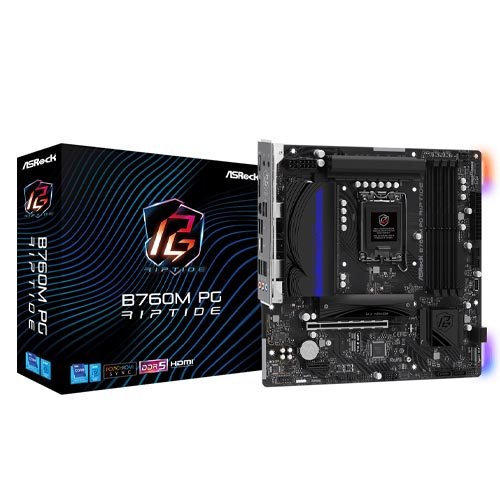

Asrock B760M PG Riptide Intel B760 Micro ATX Motherboard
Overview :
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 14 1 1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (4 Rear, 2 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Specification :
| Model | |
| Brand | ASRock |
| Model | B760M PG Riptide |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) |
| Chipsets | |
| Chipset | Intel B760 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 6800 (OC)* |
| 1DPC 1R Up to 6800 MHz (OC), 4800 MHz Natively. | |
| 1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively. | |
| 2DPC 1R Up to 5600 MHz (OC), 4000 MHz Natively. | |
| 2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively. | |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| PCI Express x1 | 1 x PCIe 4.0 x1 Slot (PCIE2) * |
| * Supports NVMe SSD as boot disks | |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | CPU: |
| 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| * Supports Intel Volume Management Device (VMD) | |
| * Supports NVMe SSD as boot disks | |
| SATA RAID | 0/1/5/10 |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Dragon RTL8125BG |
| Max LAN Speed | 2.5Gbps |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Mounting Points |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen1 Type-C Port | |
| 3 x USB 3.2 Gen1 Type-A Ports | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) | |
| Other Connectors | 1 x eDP Signal Connector |
| 1 x SPI TPM Header | |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin) *** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) **** | |
| 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) ***** | |
| 1 x Front Panel Audio Connector | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Power Pin | 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| Windows Compatibility | |
| Windows 11 | Supported |
| Features | |
| Features | Superb Productivity |
| Dual Channel DDR5 | |
| Rock-Solid Durability | |
| 14 1 1 Power Phase | |
| Pre-Installed I/O Shield | |
| Ultrafast Connectivity | |
| 2.5G LAN | |
| EZ Update | |
| ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| ASRock Post Status Checker | |
| Packaging | |
| Package Contents | 1 x User Manual |
| 2 x SATA Data Cables | |
| 2 x Screws for M.2 Sockets |
