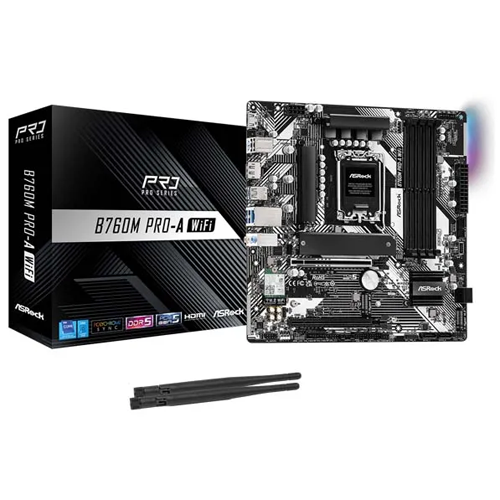

ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Intel Motherboard
Overview :
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN
- Killer 802.11axe WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer
Specification :
| Brand | ASRock |
| Color | Black |
| Model | B760M Pro-A Wi-Fi |
| Unique Feature | |
| Superb Productivity | – PCIe Gen5 (Graphic) |
| – Dual Channel DDR5 | |
| Rock-Solid Durability | – Server-Grade Low-Loss PCB |
| – 7+1+1 Power Phase, Dr. MOS for V Core +GT | |
| Ultrafast Connectivity | – 2.5G LAN, 802.11ax Wi-Fi 6E Module |
| EZ Update | ASRock Auto Driver Installer |
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| – Supports Intel® Hybrid Technology | |
| – Supports Intel® Turbo Boost Max 3.0 Technology | |
| – Supports Intel® Thermal Velocity Boost (TVB) | |
| – Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel® B760 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* | |
| – Max. capacity of system memory: 256GB | |
| – Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) |
| – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Dragon RTL8125BG | |
| – Supports Dragon 2.5G LAN Software | |
| – Smart Auto Adjust Bandwidth Control | |
| – Visual User Friendly UI | |
| – Visual Network Usage Statistics | |
| – Optimized Default Setting for Game, Browser, and Streaming Modes | |
| – User Customized Priority Control | |
| Wireless LAN | – 802.11axe Wi-Fi 6E Module |
| – Supports IEEE 802.11a/b/g/n/ac/ax/axe | |
| – Supports Dual-Band 2×2 160MHz with extended 6GHz band* support | |
| – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| – Supports Bluetooth 5.3 + High speed class II | |
| – Supports MU-MIMO | |
| – Supports Killer LAN Software | |
| * Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
| A 6GHz compatible router is required for 6E functionality. | |
| Slots | CPU: |
| – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| Chipset: | |
| – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* | |
| – 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 (Integrated Wi-Fi/BT) | |
| – Supports AMD CrossFire™ | |
| * Supports NVMe SSD as boot disks | |
| Storage | CPU: |
| – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 4 x SATA3 6.0 Gb/s Connectors | |
| *Supports Intel® Volume Management Device (VMD) | |
| Supports NVMe SSD as boot disks | |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | Chipset: |
| – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) | |
| – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
| – 6 x USB 2.0 (2 Rear, 4 Front) | |
| * All USB ports support ESD Protection | |
| Connector | – 1 x SPI TPM Header |
| – 1 x Chassis Intrusion and Speaker Header | |
| – 1 x RGB LED Header* | |
| – 3 x Addressable LED Headers** | |
| – 1 x CPU Fan Connector (4-pin)*** | |
| – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| – 1 x 24 pin ATX Power Connector | |
| – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| – 1 x Front Panel Audio Connector | |
| – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| – 1 x Front Panel Type C USB 3.2 Gen1 Header | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | – 2 x Antenna Ports |
| – 1 x PS/2 Mouse/Keyboard Port | |
| – 1 x HDMI Port | |
| – 1 x DisplayPort 1.4 | |
| – 1 x USB 3.2 Gen1 Type-C Port | |
| – 3 x USB 3.2 Gen1 Type-A Ports | |
| – 2 x USB 2.0 Ports | |
| – 1 x RJ-45 LAN Port | |
| – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock Dragon 2.5G LAN Software | |
| – Killer Control Center | |
| – ASRock Polychrome SYNC* | |
| UEFI | |
| – ASRock EZ Mode | |
| – ASRock Full HD UEFI | |
| – ASRock My Favorites in UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| – ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Accessories | – 1 x User Manual |
| – 1 x I/O Shield | |
| – 2 x SATA Data Cables | |
| – 2 x SMA Wi-Fi Antenna Cables | |
| – 2 x ASRock Wi-Fi 2.4/5/6 GHz Antennas | |
| – 1 x Plastic Cover for Wi-Fi Module | |
| – 3 x Screws for M.2 Sockets | |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Operating System | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
