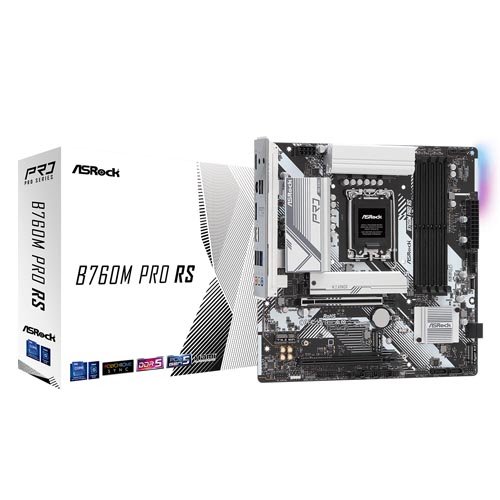

Asrock B760M Pro RS Intel B760 Micro ATX Motherboard
Overview :
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 1 1 Power Phase, Dr.MOS for VCore GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Specification :
Unique Feature | Superb Productivity |
PCIe Gen5 (Graphics) | |
Dual Channel DDR5 | |
Rock-Solid Durability | |
7 1 1 Power Phase, 50A Dr.MOS for VCore GT | |
Pre-Installed I/O Shield | |
Ultrafast Connectivity | |
2.5G LAN EZ Update | |
ASRock Auto Driver Installer | |
EZ Troubleshooter | |
ASRock Post Status Checker | |
CPU | Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
Supports Intel® Hybrid Technology | |
Supports Intel® Turbo Boost Max 3.0 Technology | |
Supports Intel® Thermal Velocity Boost (TVB) | |
Supports Intel® Adaptive Boost Technology (ABT) | |
Chipset | Intel® B760 |
Memory | Dual Channel DDR5 Memory Technology |
4 x DDR5 DIMM Slots | |
Supports DDR5 non-ECC, un-buffered memory up to 7200 (OC)* | |
Max. capacity of system memory: 192GB | |
Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
*1DPC 1R Up to 7200 MHz (OC), 4800 MHz Natively. | |
1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively. | |
2DPC 1R Up to 5600 MHz (OC), 4000 MHz Natively. | |
2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively. | |
BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics | Intel® Xe Graphics Architecture (Gen 12) |
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
Nahimic Audio | |
LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
Dragon RTL8125BG | |
Supports Dragon 2.5G LAN Software | |
Smart Auto Adjust Bandwidth Control | |
Visual User Friendly UI | |
Visual Network Usage Statistics | |
Optimized Default Setting for Game, Browser, and Streaming Modes | |
User Customized Priority Control | |
Slots | CPU: |
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
Chipset: | |
1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* | |
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
Supports AMD CrossFire™ | |
*Supports NVMe SSD as boot disks | |
Storage | CPU: |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
Chipset: | |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
4 x SATA3 6.0 Gb/s Connectors | |
*Supports Intel® Volume Management Device (VMD) | |
Supports NVMe SSD as boot disks | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) |
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
6 x USB 2.0 (2 Rear, 4 Front) | |
* All USB ports support ESD Protection | |
Connector | 1 x SPI TPM Header |
1 x Chassis Intrusion and Speaker Header | |
1 x RGB LED Header* | |
3 x Addressable LED Headers** | |
1 x CPU Fan Connector (4-pin)*** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
1 x 24 pin ATX Power Connector | |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x Front Panel Audio Connector | |
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
1 x Front Panel Type C USB 3.2 Gen1 Header | |
*Supports in total up to 12V/3A, 36W LED Strip | |
**Support in total up to 5V/3A, 15W LED Strip | |
***CPU_FAN1 supports the fan power up to 1A (12W). | |
****CPU_FAN2/WP supports the fan power up to 2A (24W). | |
*****CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Rear Panel I/O | 2 x Antenna Mounting Points |
1 x PS/2 Mouse/Keyboard Port | |
1 x HDMI Port | |
1 x DisplayPort 1.4 | |
1 x USB 3.2 Gen1 Type-C Port | |
3 x USB 3.2 Gen1 Type-A Ports | |
2 x USB 2.0 Ports | |
1 x RJ-45 LAN Port | |
HD Audio Jacks: Line in / Front Speaker / Microphone | |
Software and UEFI | Software |
ASRock Motherboard Utility (A-Tuning) | |
ASRock Dragon 2.5G LAN Software | |
ASRock Polychrome SYNC* | |
UEFI | |
ASRock EZ Mode | |
ASRock Full HD UEFI | |
ASRock My Favorites in UEFI | |
ASRock Auto Driver Installer | |
ASRock Instant Flash | |
ASRock Easy RAID Installer | |
*These utilities can be downloaded from ASRock Live Update & APP Shop. | |
Accessories | 1 x User Manual |
2 x SATA Data Cables | |
4 x Screws for M.2 Sockets | |
1 x Standoff for M.2 Socket | |
Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | FCC, CE |
ErP/EuP ready (ErP/EuP ready power supply is required) |
