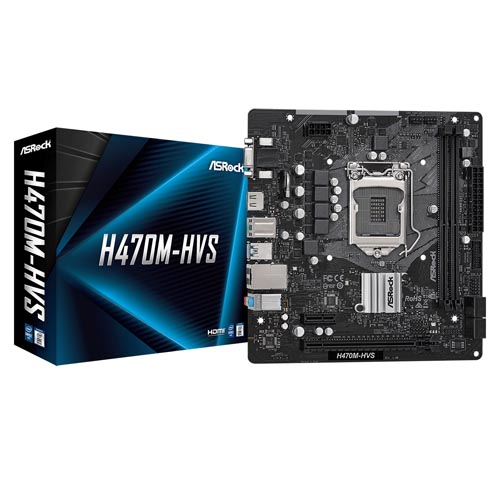

Asrock H470M-HVS Intel H470 Micro ATX Motherboard
Overview :
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options : HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
Specification :
| Unique Feature | ASRock Super Alloy |
| Sapphire Black PCB | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| CPU | Supports 10th Gen Intel Core Processors (Socket 1200) |
| 5 Power Phase design | |
| Chipset | Intel H470 |
| 2 x DDR4 DIMM Slots | |
| Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| Supports Intel Extreme Memory Profile (XMP) 2.0 | |
| *Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| SMBIOS 2.7 Support | |
| Graphics | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** |
| Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc | |
| Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) | |
| Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port | |
| **VP9 10bit and VC-1 are for decode only. | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Supports Wake-On-LAN | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | 1 x PCI Express 3.0 x16 Slot* |
| 1 x PCI Express 3.0 x1 Slot | |
| *Supports NVMe SSD as boot disks | |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug |
| Connector | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port |
| 1 x D-Sub Port | |
| 1 x HDMI Port | |
| 4 x USB 2.0 Ports (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | |
| Software | ASRock Motherboard Utility (A-Tuning) |
| ASRock XFast LAN | |
| UEFI | ASRock EZ Mode |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans | |
| CASE OPEN detection | |
| CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment | |
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm |
| Solid Capacitor design | |
| OS | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) |
