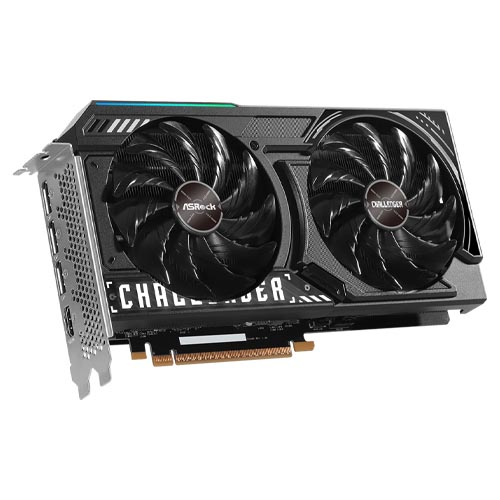

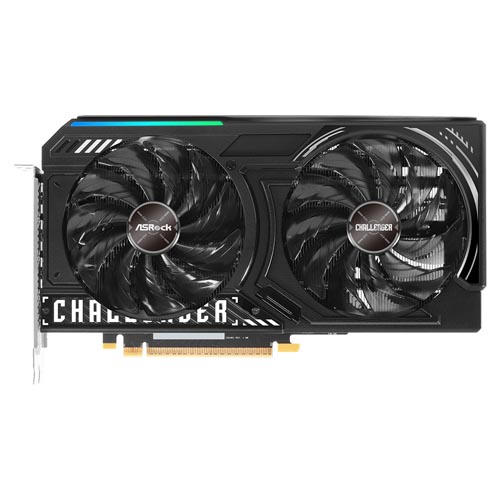

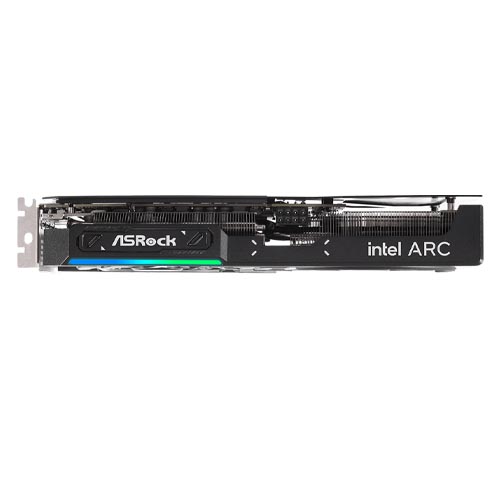

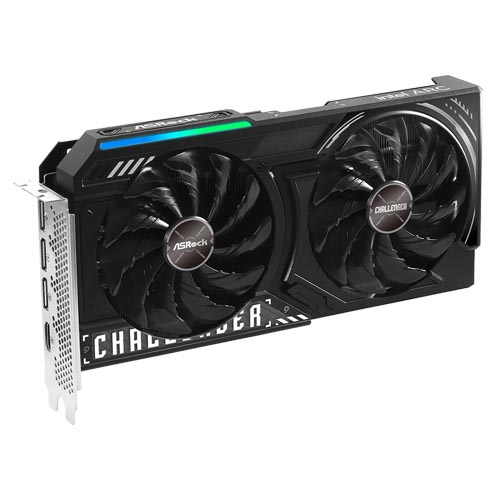

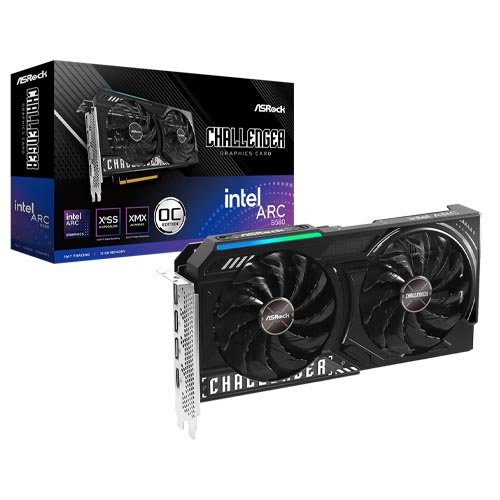

Asrock Intel Arc B580 Challenger 12GB OC Graphic Card B580 CL 12GO
Overview :
- CLOCK: GPU / MEMORY
GPU Clock: 2740 MHz
Memory Clock: 19 Gbps - KEY SPECIFICATION
Intel® Arc™ B580 Graphics
12GB 192-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix Extensions (Intel® XMX)
DirectX® 12 Ultimate
1x 8-pin Power Connectors
3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a - KEY FEATURES
Dual Fan Design

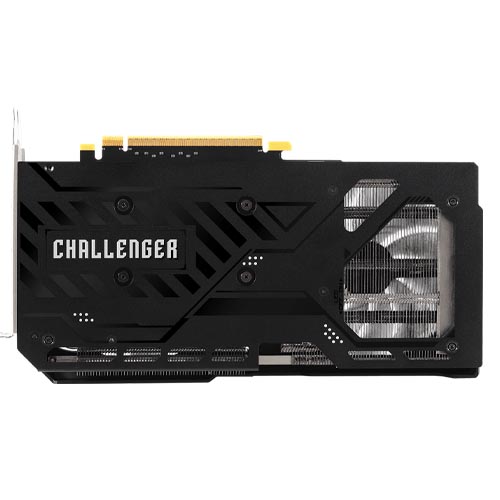

Stylish Metal Backplate
Striped Axial Fan
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card
Specification :
| Graphics Engine | Intel® Arc B580 |
| Bus Standard | PCI® Express4.0 x 8 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 12GB |
| Engine Clock | 2740 MHz |
| Intel® XMX Engines | 160 |
| Compute Units | 20 |
| Memory Clock | 19 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |

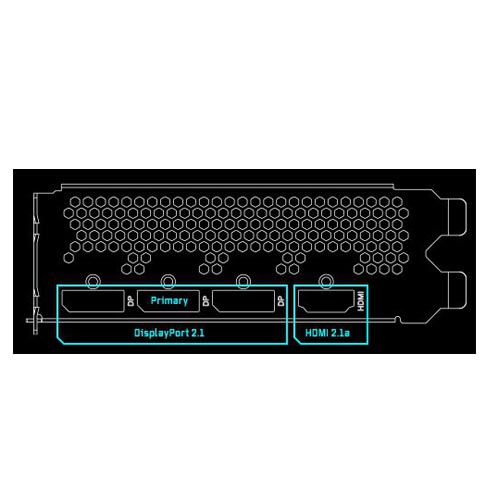

| Interface | 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) |
| 2 x DisplayPort 2.1 (Up to UHBR10) | |
| 1 x HDMI 2.1a | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 650W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 249 x 132 x 41mm, 2-slot |
| Net Weight | 720 g |
