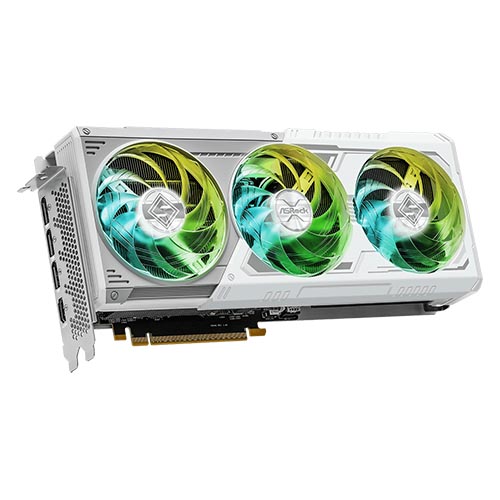

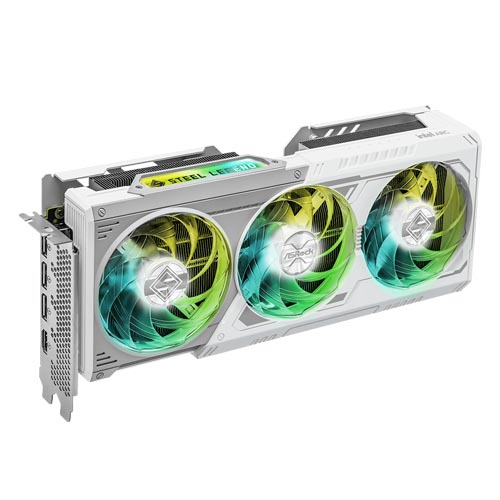

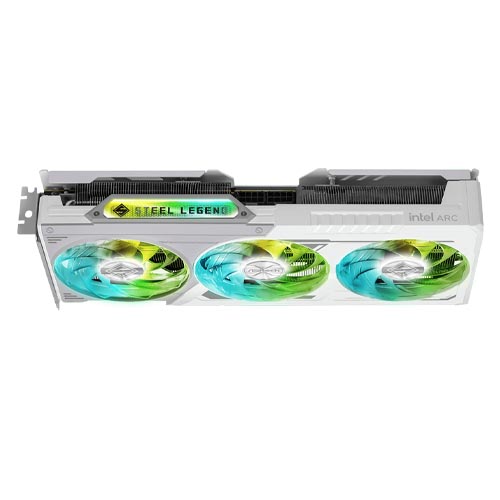

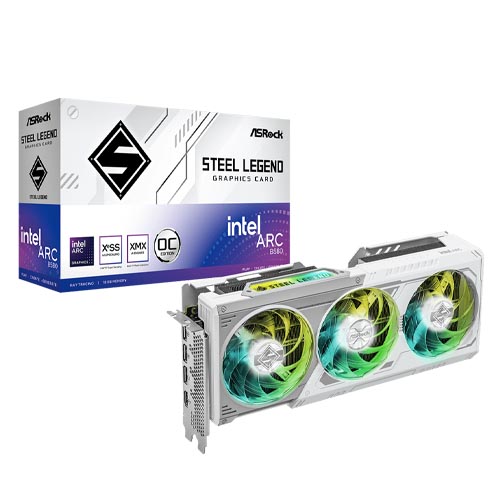

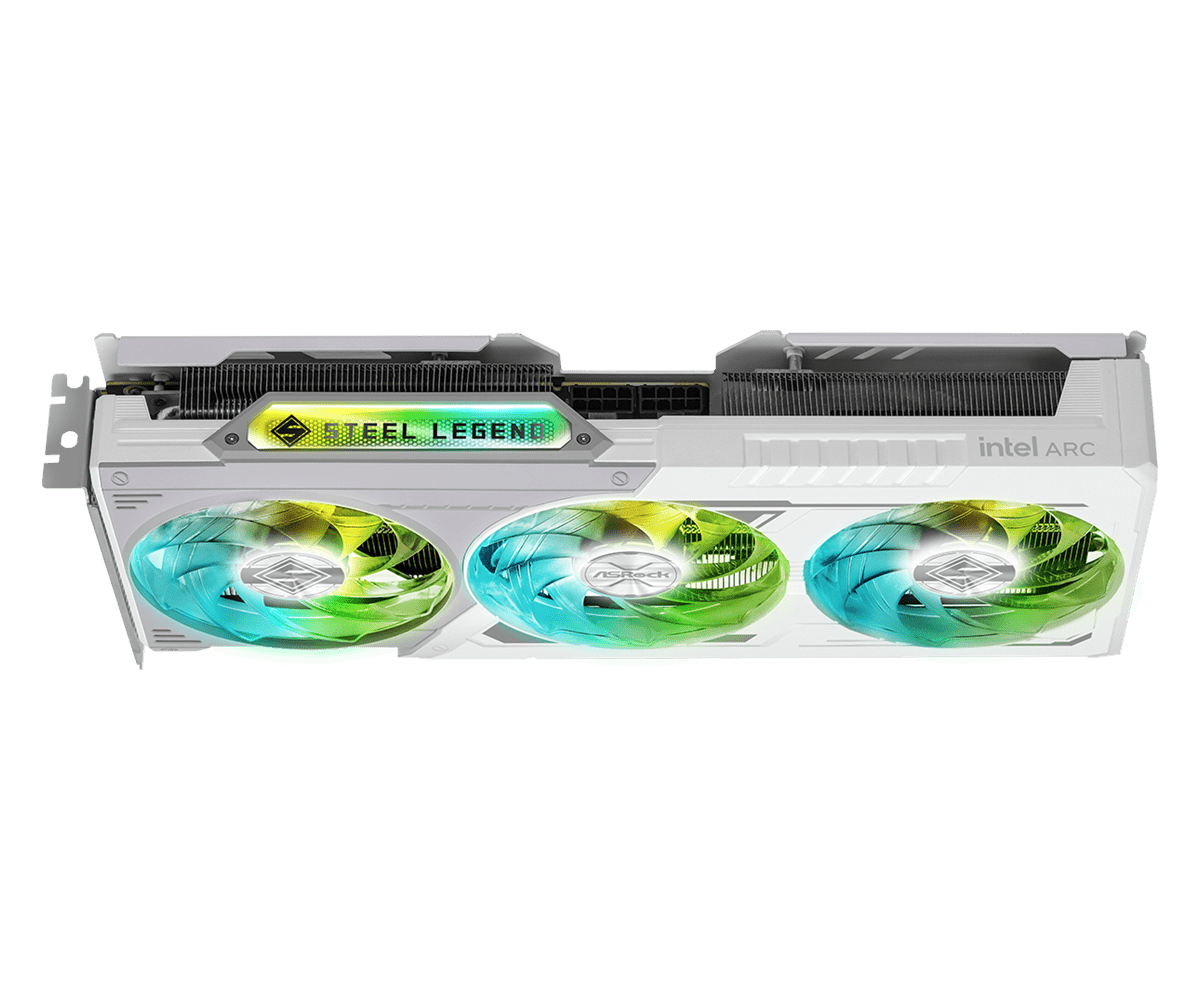

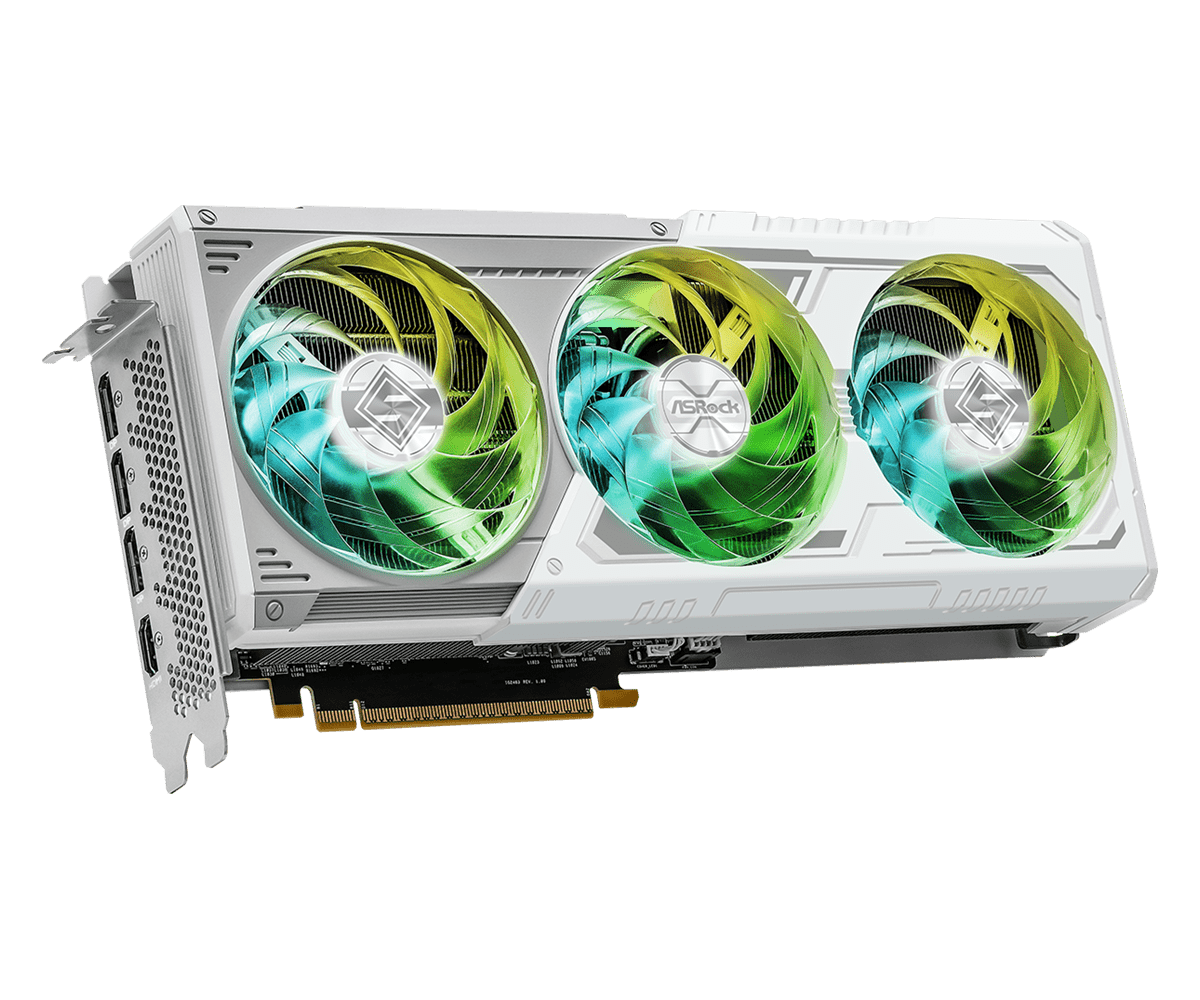

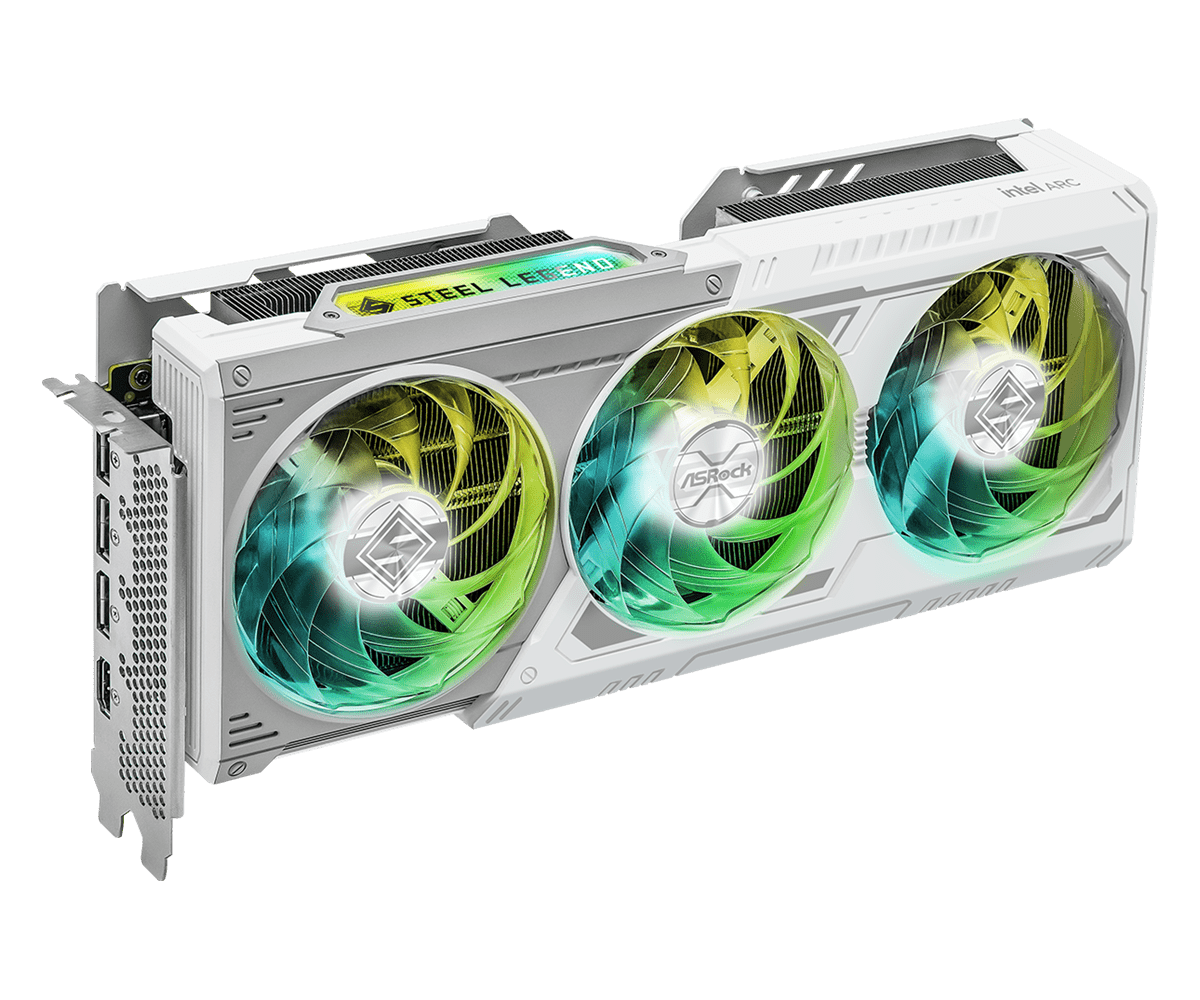

Asrock Intel Arc B580 Steel Legend 12GB OC Graphic Card B580 SL 12GO
Overview :
- Clock: GPU / Memory
GPU Clock: 2800 MHz
Memory Clock: 19 Gbps - Key Specification
Intel® Arc™ B580 Graphics
12GB 192-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix eXtentions (Intel® XMX)
Microsoft® DirectX® 12 Ultimate
2x 8-pin Power Connectors
3x DisplayPort™ 2.1, 1x HDMI™ 2.1a - Key Features
Polychrome SYNC
Triple Fan Design
Striped Ring Fan

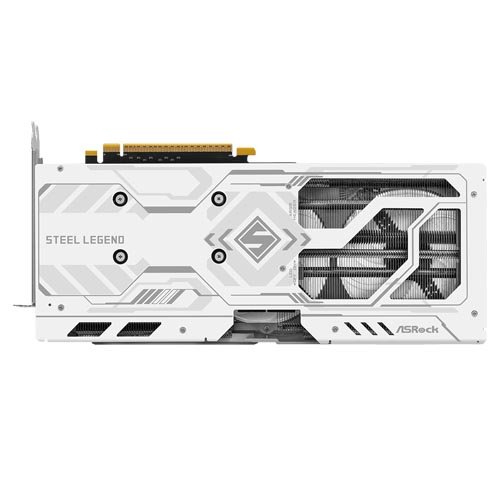

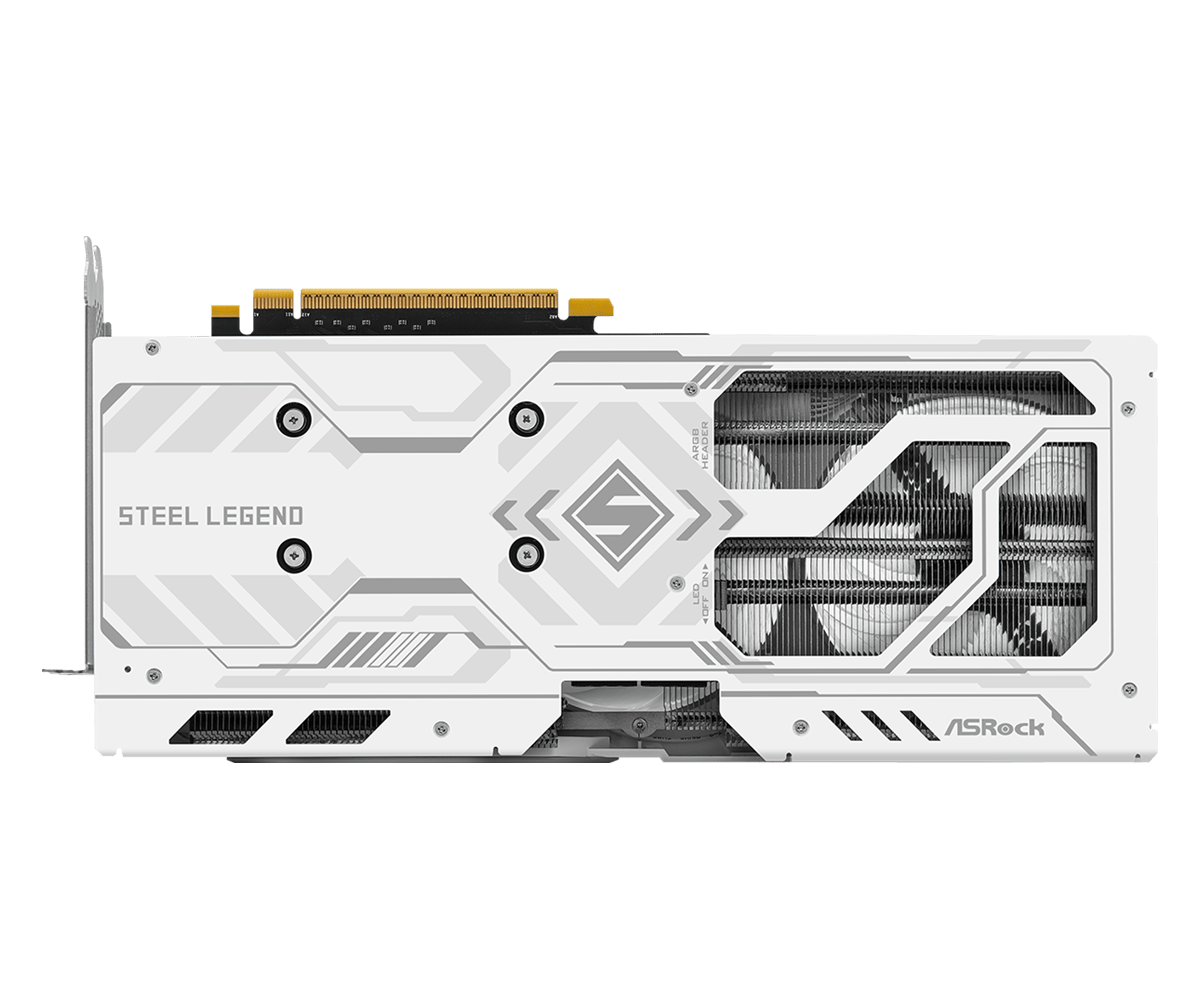

Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card
Specification :
| Graphics Engine | Intel® Arc™ B580 Graphics |
| Bus Standard | PCI® Express4.0 x8 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 12GB GDDR6 |
| Engine Clock | 2800 MHz |
| Intel® XMX Engines | 160 |
| Memory Clock | 19 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |

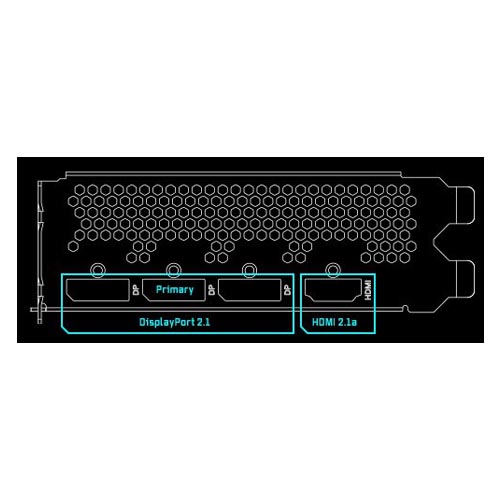

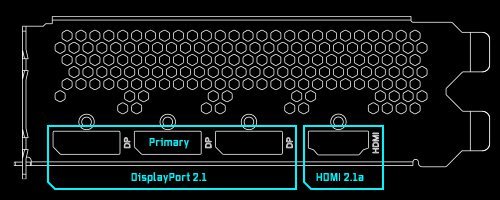

| Interface | 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) |
| 2 x DisplayPort 2.1 (Up to UHBR10) | |
| 1 x HDMI 2.1a | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 650W |
| Power Connector | 2x 8-pin |
| Accessories | 1x Quick Installation Guide |
| Dimensions | 298 x 131 x 51 mm, 2.6-slot |
| Net Weight | 959 g |
