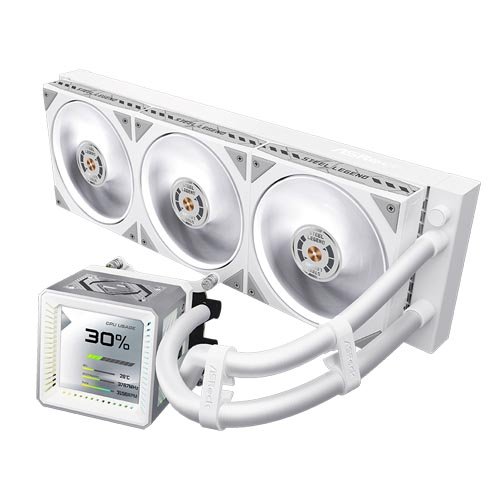

ASRock Steel Legend 360 LCD 360mm AIO Liquid Cooler 90-ASLA36-WAAGA5
Overview :
3.4” Full-Color LCD Display
3-Phase 6-Slot Pump
Dual-inlet Cooling Path
Industrial-grade Dual-ball Bearing
Aerospace-grade LCP Fan
RGB Lighting Ecosystem
0dB Silent Cooling
IIR+EPDM Tubing
Effortless Installation
High Conductivity Thermal Grease
Reliable 6-Year Warranty
3.4” Full-Color LCD Display
A 3.4″ full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.
Polychrome DISPLAY
Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.
Customizable Animations
Explore built-in animations or import your own for a fully customized display experience.
Dual-Side Inlet Cooling Path
Next-Gen Cooling System
Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.
POLYCHROME RGB
Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.
Clean Build Aesthetic
Cables remain hidden between fans, with only a single cable required to connect to the motherboard for a cleaner build.
Specification :
| Model Number | 90-ASLA36-WAAGA5 |
| Compatibility | AMD：AM5, AM4 |
| Intel：LGA1851, 1700 | |
| Water Block | |
| Dimension | (L)100.4 x (W)86 x (H)107.6 mm |
| Material (Cold Plate) | Copper |
| LEDs | ARGB |
| Radiator | |
| Dimension | (L)397 x (W)120 x (H)27 mm |
| Material | Aluminum |
| Pump | |
| Speed | 1200 – 3100 ± 10% RPM |
| Current/ Voltage | 0.38A/ 12V |
| Connector | PWM (4-Pin) |
| VRM Fan | |
| Dimension | (L)70 x (W)70 x (H)25 mm |
| Speed | (Max.) 3000 ± 10% RPM |
| Connector | PWM (4-Pin) |
| Current/ Voltage | 0.12A/ 12V |
| Radiator Fan | |
| Dimension | (L)120 x (W)120 x (H)28 mm |
| Speed | 0 – 2500 ± 10% RPM |
| Air Flow | (Max.) 76.7 CFM |
| Air Pressure | (Max.) 4.16 mmH20 |
| Noise | (Max.) 38.3 dB(A) |
| Connector | PWM (4-Pin) |
| Current/ Voltage | 0.30A/ 12V |
| Bearing | Dual-ball Bearing |
| Screen | |
| Type | IPS LCD |
| Size | 3.4” |
| Resolution | 480 x 480 |
| Display Color | 24-bit |
| Brightness | 250 cd/m² |
| Refresh Rate | 60 Hz |
| Frames Per Second (FPS) | 60 FPS |
| Connector | USB Type-C to Motherboard 9-Pin |
| Tubing | |
| Material | IIR + EPDM |
| Length | 450mm |
| Warranty | AIO Cooler Module：6 years |
| Display Module：2 years |
