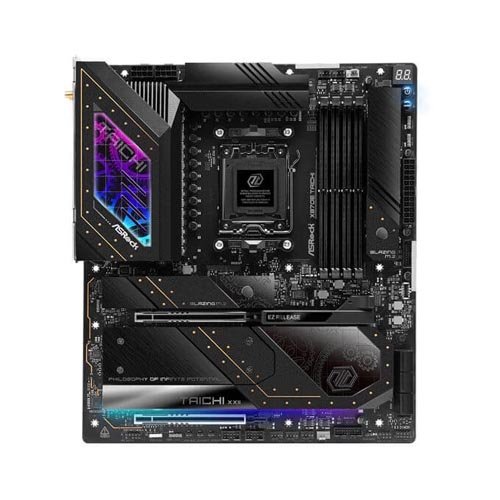

ASRock X870E Taichi Motherboard
Overview :
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 24+2+1 Phase Power Design, 110A SPS
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC)
- 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps
- 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 6 SATA3
- 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Graphics Card EZ Release, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Taichi series flagship motherboard features top-tier hardware spec, robust power design, USB4 Type-C, and DIY-friendly functionality. It’s built for high-end gamers, offering luxury aesthetics and powerful performance.
PHILOSOPHY OF INFINITE POTENTIAL
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.
Exclusive 20K Cap with 1000uF Capacitance
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
● Higher Capacitance: Greater charge storage for better support under high loads.
● Lower Ripple: Reduced power output fluctuations, improving quality.
● More Stable Output Current: Stable power supply, minimizing voltage impacts.
● Better Performance & System Stability: Increased reliability and consistent performance.
Specification :
| Model Number | X870E-TAICHI |
| Unique Feature | Superb Productivity |
| PCIe Gen5 (Graphics, M.2) | |
| Dual Channel DDR5 | |
| USB4 Type-C Ports (40 Gb/s) | |
| Rock-Solid Durability | |
| Server-Grade Low-Loss PCB | |
| 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor | |
| Flexible Integrated I/O Shield | |
| 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) | |
| Ultrafast Connectivity | |
| 5G LAN, 802.11be Wi-Fi 7 Module | |
| ASRock Lightning Gaming Ports | |
| EZ Update | |
| BIOS Flashback Button | |
| ASRock Auto Driver Installer | |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| Supports ASRock Hyper BCLK Engine | |
| Chipset | AMD X870E |
| Memory | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots | |
| Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) | |
| Max. capacity of system memory: 256GB | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz | |
| Audio | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| WIMA Audio Capacitors (For Rear Outputs) | |
| ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) | |
| Individual PCB Layers for R/L Audio Channel | |
| Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) | |
| Nahimic Audio | |
| LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s |
| Realtek RTL8126 | |
| Wireless LAN | 802.11be 2×2 Wi-Fi 7 Module |
| Supports IEEE 802.11a/b/g/n/ac/ax/axe/be | |
| Supports 2.4GHz/5GHz/6GHz frequency band | |
| Supports 160MHz channel bandwidth with 6GHz* frequency band | |
| 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports Bluetooth 5.4 | |
| Supports MU-MIMO | |
| Slots | CPU: |
| 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes | |
| Chipset: | |
| 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Supports AMD CrossFire™ | |
| Storage | CPU: |
| 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 6 x SATA3 6.0 Gb/s Connectors | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| USB | CPU: |
| 2 x USB4 Type-C (Rear) | |
| 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: | |
| 1 x USB 3.2 Gen2x2 Type-C (Front) | |
| 3 x USB 3.2 Gen2 Type-A (Rear) | |
| 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) | |
| 6 x USB 2.0 (2 Rear, 4 Front) | |
| Connector | 3 x Thermistor Cable Headers |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header | |
| 3 x Addressable LED Headers | |
| 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| 1 x Dr. Debug with LED | |
| 1 x Power Button with LED | |
| 1 x Reset Button with LED | |

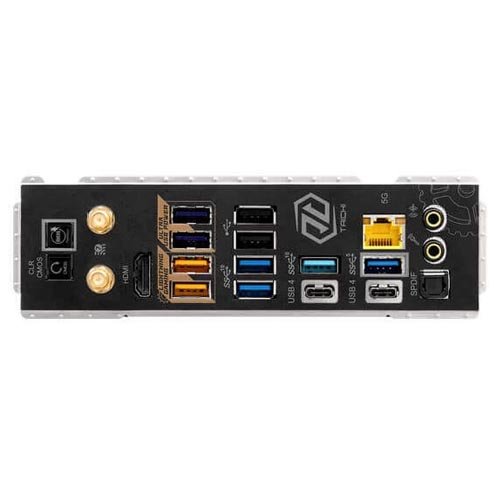

| Rear Panel I/O | 2 x Antenna Ports |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 2 x USB4 Type-C Ports (40 Gb/s) | |
| 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) | |
| 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) | |
| 2 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x Clear CMOS Button | |
| 1 x BIOS Flashback Button | |
| 1 x Line Out Jack (Gold Audio Jack) | |
| 1 x Microphone Input Jack (Gold Audio Jack) | |
| Software and UEFI | Software |
| ASRock Motherboard Utility (A-Tuning) | |
| ASRock Polychrome SYNC | |
| UEFI | |
| ASRock EZ Mode | |
| ASRock Full HD UEFI | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| Accessories | 4 x SATA Data Cables |
| 1 x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 1 x ARGB Splitter Cable | |
| 3 x Thermistor Cables | |
| Form Factor | EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm |
| 8 Layer PCB | |
| 2oz Copper PCB | |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
