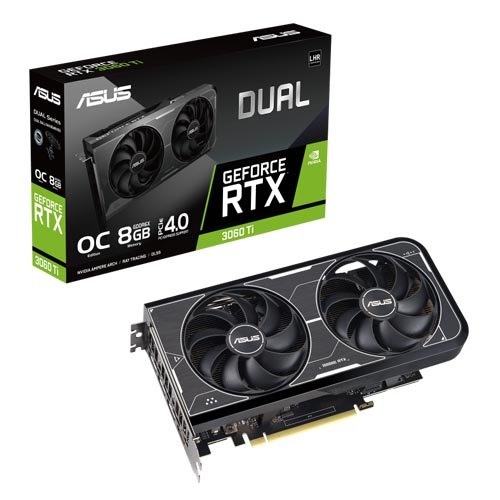

ASUS Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X Graphic Card DUAL-RTX3060TI-O8GD6X
Overview :
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- OC edition: Boost Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- 0dB Technology lets you enjoy light gaming in relative silence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A stainless steel bracket is harder and more resistant to corrosion.
Specification :
| Model | ASUS Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X |
| Graphic Engine | NVIDIA® GeForce RTX™ 3060 TI |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6X |
| Engine Clock | OC mode : 1710 MHz (Boost Clock) |
| Default mode : 1680 MHz (Boost Clock) | |
| CUDA Core | 4864 |
| Memory Speed | 19 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1) |
| Yes x 3 (Native DisplayPort 1.4a) | |
| HDCP Support Yes (2.3) | |
| Maximum Display Support | |
| 4 | |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection card |
| 1 x Speedsetup Manual | |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 230 x 120 x 42 mm |
| 9.06 x 4.72 x 1.65 inch | |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-pin |
| Slot | 2 Slot |
