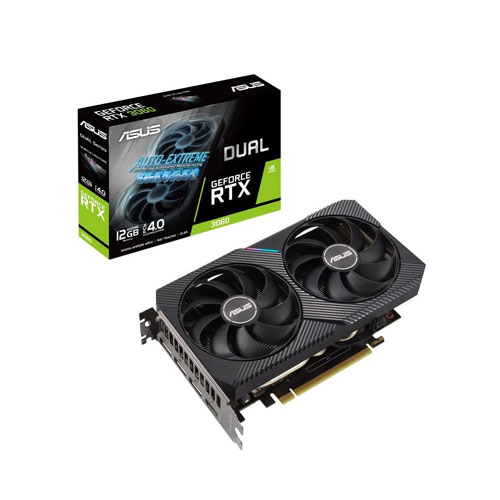

ASUS Dual GeForce RTX 3060 V2 Edition 12GB GDDR6 Graphic Card DUAL-RTX3060-12G-V2
Features
• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
• 0dB Technology lets you enjoy light gaming in relative silence.
• A stainless steel bracket is harder and more resistant to corrosion.
2x Fans. 2x Fun.
Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX™ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards – including two Axial-tech fans for maximizing airflow to the heatsink – are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Technical Specification
ASUS GeForce RTX 3060 DUAL V2 12GB Graphics Card
General
Device Type Graphics card
Bus Type PCI Express 4.0
Graphics Engine NVIDIA GeForce RTX 3060
Boost Clock 1807 MHz
CUDA Cores 3584
Max Resolution 7680 x 4320
Max Monitors Supported 4
Interfaces HDMI ¦ 3 x DisplayPort
API Supported OpenGL 4.6, DirectX 12 Ultimate
Features NVIDIA G-Sync ready, AUTO-EXTREME technology, 2-slot Fan Cooler, Real-Time Ray Tracing, Axial-tech Fan Design, 0dB Technology, Nvidia DLSS, Nvidia Studio, NVIDIA Ampere GPU technology, NVIDIA Reflex, subtle lighting, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, HDCP
Memory
Size 12 GB
Technology GDDR6 SDRAM
Memory Speed 15 Gbps
Bus Width 192-bit
System Requirements
Required Power Supply 650 W
Additional Requirements 8 pin PCI Express power connector
Miscellaneous
Included Accessories Collection card
Software Included Display drivers, ASUS GPU Tweak II, XSplit Gamecaster 2 (1 year Premium licence), WTFast Gamers Private Network (6 months Premium licence), ASUS Quantumcloud
Compliant Standards HDCP 2.3, DisplayPort 1.4a
Width 3.8 cm
Depth 20 cm
Height 12.3 cm
