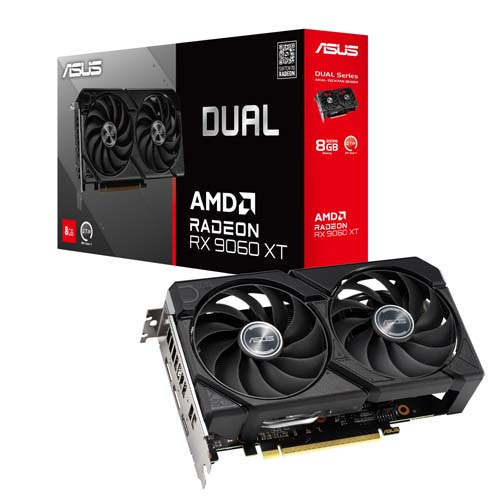

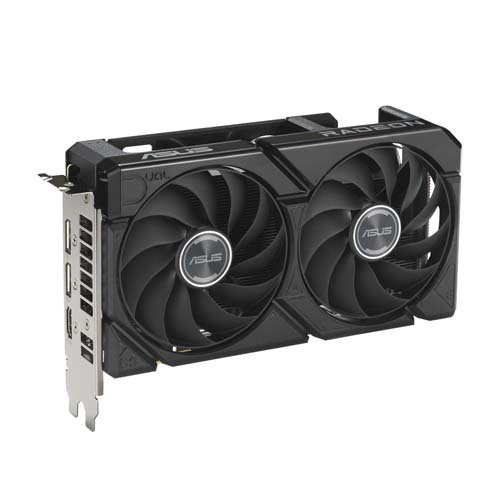

ASUS Dual Radeon RX 9060 XT 8G GDDR6 Graphic Card DUAL-RX9060XT-8G
Overview :
The ASUS Dual Radeon RX 9060 XT 8G GDDR6 gaming graphics card features a 8GB GDDR6 128-bit memory, 20Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1, 2 x DisplayPort 2.1a, HDCP 2.3 support and OpenGL 4.6 support.
AMD – RX 9000 Series Important Info
Features
ASUS Dual Radeon™ RX9060XT 8G GDDR6
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimising airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

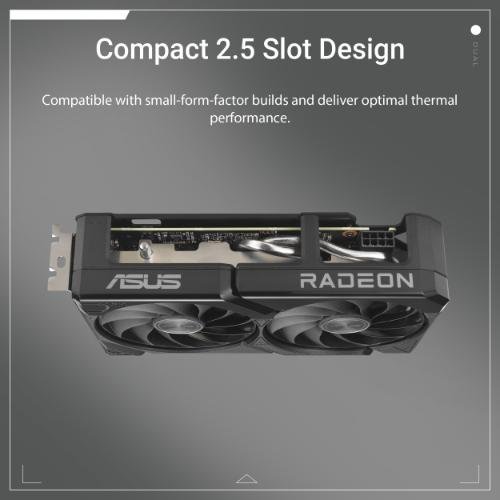

2.5 Slot Design – Compatible with small-form-factor builds
Axial-Tech Fans – Longer blades improve airflow and dispersion
Vented Backplate – Enhanced cooling for optimal performance
Dual-Ball Fan Bearings – Up to twice the lifespan of sleeve bearings

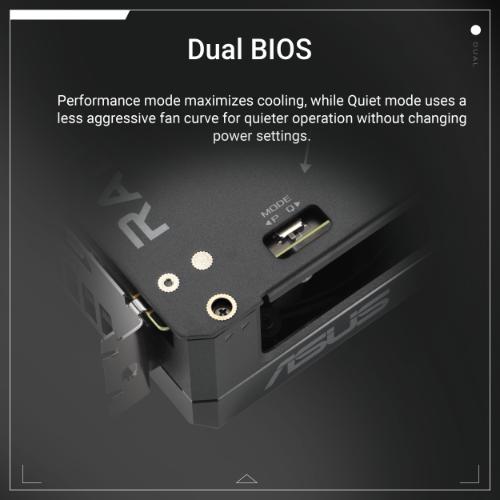

Dual BIOS – Toggle between Performance or Quiet modes
GPU Tweak III – Ultimate GPU tuning utility
Ideal PSU Companion – ASUS Prime Gold 750W
Specifications
| Model Number | DUAL-RX9060XT-8G |
| Graphic Engine | AMD Radeon™ RX 9060 XT |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8 GB GDDR6 |
| Engine Clock | TBD |
| Stream Processors | 2048 |
| Memory Speed | 20 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

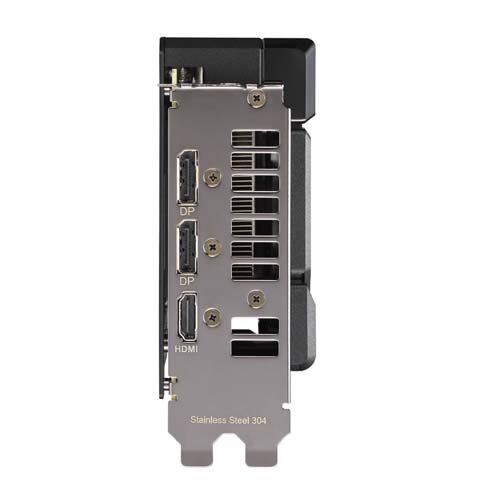

| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a) HDCP Support Yes (2.3) |
| Maximum Display Support | 3 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Thank you card 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & Drivers – please download all software from the support site. |
| Dimensions | 202 x 120 x 49 mm |
| Recommended PSU | 550 W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
