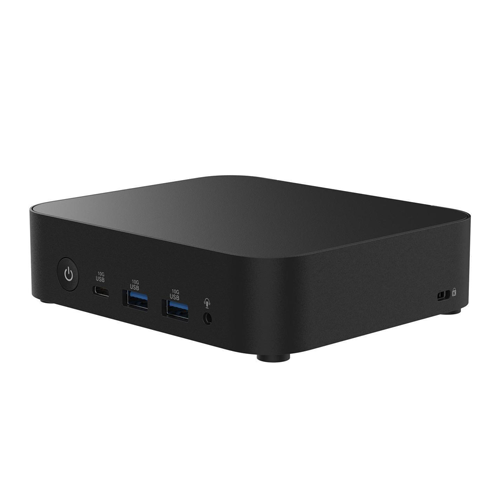

ASUS NUC 14 Essential Intel Processor N150 Mini PC RNUC14MNK1500000
Overview :
- Energy-efficient: Ideal for lightweight office productivity and embedded applications.
- Triple display support: Boosting Office Workflow Efficiency.
- Easy access design: Ease of upgrades, lower maintenance costs and reduced downtime.
- Multiple high-speed connection options: Experience heightened productivity with a diverse array of high-speed connectivity options, ensuring accelerated and stable data transfers.
- Abundant I/O: High flexibility to meet various workflow and scenarios.
- Compact size: Easy to deploy for small offices, retail settings, educational institutions.
Intel N150 Processor, Intel UHD Graphics
SO-DIMM DDR5-4800 MHz (support up to 16GB (via 1 x 16 GB))
Triple Display: DisplayPort, HDMI, USB Type-C
M.2 2280 slot (PCI-E 3.0 x4 or SATA)
RJ45 2.5G LAN, WIFI 6E, Bluetooth 5.3
Mini PC: 5.31″ x 4.53″ x 1.42″ (in inches)
Specifications
Brand : ASUS
Series : ASUS NUC 14 Essential
Model : RNUC14MNK1500000
CPU Supported
CPU Type : Intel N150 Processor 4 Cores / 4 Threads 3.60 GHz 6W TDP, 6 MB Intel Smart Cache
Memory Supported
Memory installed : No Memory
Memory slot : 1 x 262Pin SO-DIMM
Memory Type Supported : DDR5 4800
Max Memory Supported : 16GB
Dual Channel Memory Supported : No
Storage
Hard Drive Installed : No Hard Drive
M.2 : 1 x M.2 2280/2242 PCIe Gen3x4 NVMe or SATA SSD (empty)
(M.2 SSD | supports 128GB ~ 4TB)
Graphics
Discrete Graphic Card : Intel UHD
Intergrated Graphics : Intel Graphics
1.25 GHz
32 Execution Units
DisplayPort 1.4 Max Resolution: 4096×2160@60Hz
HDMI Max Resolution: 4096×2160@60Hz
Supports Triple Displays
Audio
Onboard Audio : Integrated
Channel : 7.1 Channel
Communications
LAN : 1 x Realtek RTL8125BG-CG (2.5 GbE)
Max LAN Speed : 10/100/1000/2500Mbps
Wireless LAN : Wi-Fi 6E AX211 (Gig+)
WiFi Generation : Wi-Fi 6E
Bluetooth : Bluetooth 5.3
Front Panel Ports
Front USB : 1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
Front Audio Ports : 1 x 3.5mm Headset Jack
Back Panel Ports
HDMI : 1 x HDMI 2.1 (TMDS)
DisplayPort : 1 x DisplayPort 1.4
Rear USB : 1 x USB 3.2 Gen2 Type-C ?? DP 1.4
2 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ45 : 1 x RJ45 LAN
Power Supply
Power Supply : 19V DC-IN
65W 19V AC-DC Adapter
Physical SPEC
Dimensions : 135 x 115 x 36mm
5.31″ x 4.53″ x 1.42″ (in inches)
Weight : 2.05 lbs
