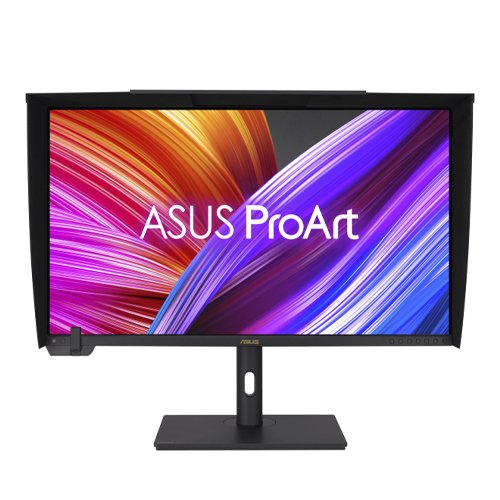

Asus PA32UCXR 32 Inch 60Hz Pro Art Monitor
Overview :
Bring your professional projects to life with the 32″ ProArt Display PA32UCXR 4K HDR Monitor. Designed to deliver exceptional color, this Calman ready 3840 x 2160 resolution 4K mini-LED display is factory calibrated for Delta E <1 accuracy, covering 97% of the DCI-P3 gamut. A built-in, motorized flip colorimeter and self-calibration system provides consistent color accuracy. Supporting VESA DisplayHDR 1400 certified HDR10, HLG, and Dolby Vision high-dynamic range formats provides images with realistically bright highlights and deep shadows.
In addition to featuring DisplayPort and HDMI inputs, the Thunderbolt 4 ports allow you to transfer video, data, audio, and up to 90W of power over a single cable with compatible laptops. A second Thunderbolt 4 port allows you to daisy chain additional displays and other compatible devices. There is also a built-in USB 3.2 Gen 2 hub that includes three USB-A ports and one USB-C port, allowing you to charge your devices and connect 10 Gb/s compatible peripherals to your system through the monitor.
Stunning Visuals
Exceptional Color
Designed for creative professionals, the ProArt Display PA32UCXR is factory calibrated for a color accuracy average of Delta E <1. Additionally, it’s 32″ mini-LED panel supports a crisp 3840 x 2160 4K resolution, providing 1.07 billion (10-bit) colors that cover 97% of the DCI-P3 and 100% of the sRGB gamut. It also support 99% Adobe RGB, 100% Rec. 709, and 87% Rec. 2020 color gamut, making it ideal¿for video editing and post-production.
Mini-LED Display
Featuring 2304 dimming zones and numerous control ICs that independently manage backlighting zones, this monitor minimize onscreen flicker during transitions and ensure high levels of sustained brightness and uniformity. Adaptive-sync technology helps to reduce motion blur, screen tearing, and stuttering from fast action video with compatible graphics cards.
Vivid HDR
ASUS Smart HDR technology enables the ProArt display to support multiple HDR formats, including Dolby Vision, HLG, and HDR10. It also supports multiple HDR10 curves, including PQ Hard Clip, PQ Optimized, and PQ Basic. HDR Preview functionality allows you to streamline your editing workflow by connecting your camera directly to the monitor to view HDR content. Other features include a 1 million:1 dynamic contrast ratio, 1600 nits peak HDR (1000 nits sustained) brightness, and 5 ms (GtG) response time.
Intuitive and Intelligent Calibration
Self Calibration
ProArt Displays boast a self-calibration feature for the embedded colorimeter. This standalone solution is compatible with any operating system and doesn’t require additional calibration software. Users may run the calibration process at any time, or schedule it during off hours through the OSD menu.
ProArt Calibration
ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor’s internal scaler IC chip instead of the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings. Users can also use ProArt Calibration to schedule regular calibration intervals.
ProArt Color Center
ProArt Color Center offers remote group control and calibration tools, allowing users to run vital tasks from a centralized location. Calibration schedules and customized color parameters can be set to maintain consistent, professional-level accuracy.
Seamless Calibration
In addition to having a built-in colorimeter, ProArt PA32UCXR display is compatible with most major calibrators, including those from X-Rite, Datacolor, and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.
Streamlined, Efficient Workflows
Versatile Connectivity
The ASUS ProArt Display includes two HDMI 2.0 ports alongside a DisplayPort 1.4 input. You can also transfer video, data, and up to 90W of power over a single cable using the main Thunderbolt 4 port. A USB 3.2 Gen 2 hub, comprised of one USB-C port and three USB-A ports, allows you to transfer up to 10 Gb/s with compatible devices. A 3.5mm headphone jack is also available for listening privacy.
Daisy Chain
Expand your view by using daisy chaining additional displays and other devices using the second Thunderbolt 4 connector.
Ergonomic Design
Rotate the screen 90° in either direction to view content in portrait mode and adjust the height, tilt, and swivel to match your preferences. The 178° horizontal and vertical viewing angles allow you to see the screen clearly from almost any position. Additionally, the stand’s quick release makes it easy to remove the display so that you can mount it to a wall or swivel arm using the 100 x 100mm VESA pattern.
Detachable Monitor Hood
A wraparound hood reduces on-screen reflections from nearby light sources, enabling users to work in the studio or on location.
Intelligent Sensors
An ambient light sensor automatically dims or brightens the display depending on your lighting environment. The proximity sensor dims the display when it doesn’t detect a user in front of the monitor.
Specification :
| Display | |
| Size | 32″ |
| Panel Type | IPS-Type LCD with Mini-LED Backlight |
| Aspect Ratio | 16:09 |
| Native Resolution | 3840 x 2160 |
| Maximum Brightness | 1600 nits / cd/m2 (Peak in HDR Mode) |
| 1000 nits / cd/m2 (Sustained) | |
| HDR Support | Yes: HDR10/Dolby Vision/Hybrid Log Gamma |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms (GtG) |
| Refresh Rate | 60 Hz |
| Variable Refresh Technology | Variable Refresh Rate (VRR), Adaptive-Sync |
| Color Support | 1.07 Billion Colors (10-Bit) |
| Color Gamut | 100% sRGB |
| 99% Adobe RGB | |
| 97% DCI-P3 | |
| 85% Rec. 2020 | |
| Viewing Angle (H x V) | 178 x 178° |
| Curved Display | No |
| Finish | Anti-Glare |
| Surface | |
| Touchscreen | No |
| Connectivity | |
| A/V Inputs | 1x DisplayPort 1.4 |
| 2x HDMI 2.0 | |
| A/V Outputs | 1x 1/8″ / 3.5 mm (Headphone) |
| HDCP Support | Yes: Version 2.2 |
| USB I/O | 2x USB-C (Thunderbolt 4) with USB PD 90 W |
| 3x USB-A 3.1/3.2 Gen 2 | |
| 1x USB-C 3.1/3.2 Gen 2 | |
| Multi-Input Support (PIP/PBP) | Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Speaker | |
| Built-In Speakers | Yes: 2x 3 W |
| Electrical | |
| Power Consumption | Typical: 46.6 W |
| Standby: 0.5 W | |
| Input Power | 100 to 240 VAC, 60 / 50 Hz |
| Power Adapter Type | Internal |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Adjustments | Height: 3.9″ / 100 mm |
| Tilt: 28° (-5 to 23°) | |
| Rotation: 180° (-90 to 90°) | |
| Swivel: 60° (-30 to 30°) | |
| VESA Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes: Kensington |
| Dimensions | 28.6 x 23.7 x 9.6″ / 72.7 x 60.1 x 24.5 cm (with Stand) |
| 28.6 x 17.5 x 3.5″ / 72.7 x 44.5 x 9 cm (without Stand) | |
| Weight | 30.4 lb / 13.8 kg (with Stand) |
| 20.3 lb / 9.2 kg (without Stand) | |
| Packaging Info | |
| Package Weight | 45.28 lb |
| Box Dimensions (LxWxH) | 38 x 22.5 x 8.75″ |
