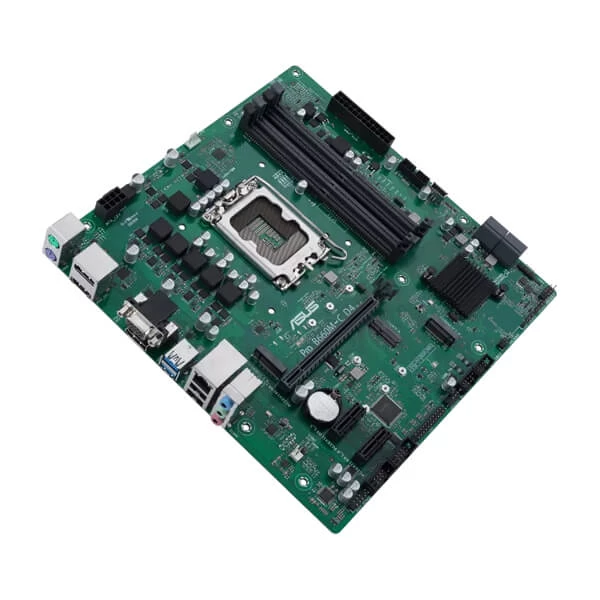

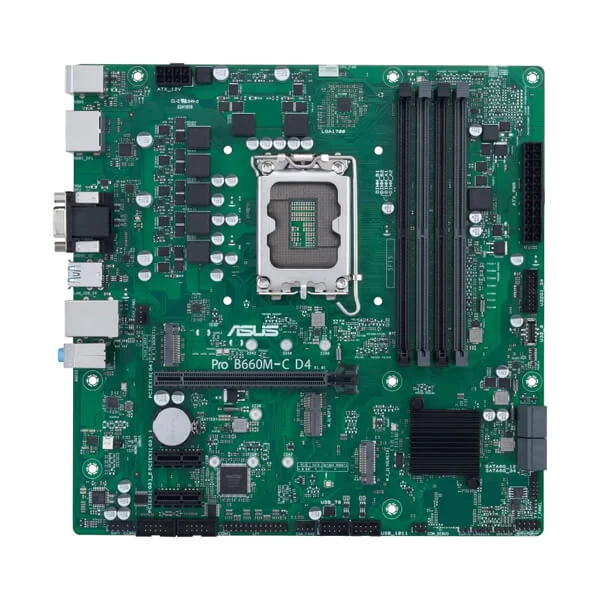

Asus Pro B660M-C D4-CSM DDR4 Motherboard PRO-B660M-C-D4-CSM
Overview :
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express
PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.
Specification :
| Model | Pro B660M-C D4-CSM |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| Optimem | |
| 2 x DisplayPort | |
| Graphics | 1 x D-Sub port |
| 1 x HDMI® port | |
| Intel® 13th & 12th Gen Processors | |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 slot |
| Intel® B660 Chipset | |
| 2 x PCIe 3.0 x1 slots | |
| Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Storage | Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| – Intel® 12th Gen processors support PCIe 4.0 x4 mode | |
| Intel® B660 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) | |
| 4 x SATA 6Gb/s ports | |
| 1 x Intel® 1Gb Ethernet | |
| Ethernet | ASUS LANGuard |
| M.2 slot only (Key E, CNVi & PCIe) | |
| Wireless & Bluetooth | |
| Rear USB (Total 4 ports) | |
| USB | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Audio | – Supports: Jack-detection, Front Panel Jack-retasking |
| – Supports up to 24-Bit/192 kHz playback | |

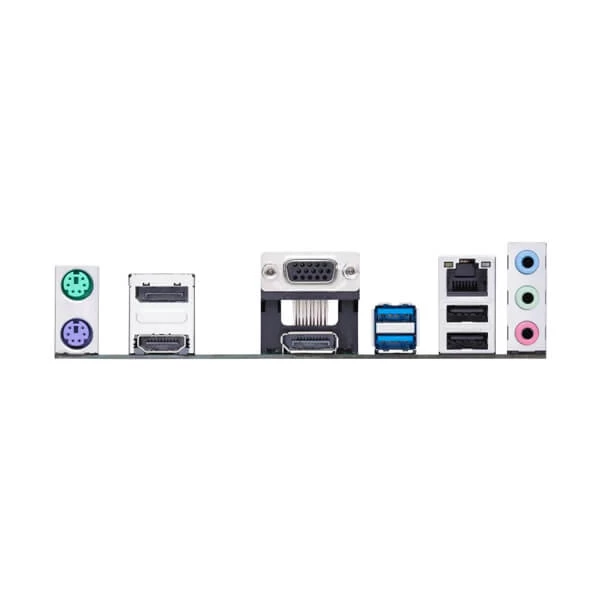

| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| Back Panel I/O Ports | 2 x USB 2.0 ports (2 x Type-A) |
| 2 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x D-Sub port | |
| 1 x Intel® 1Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 keyboard (purple) port | |
| 1 x PS/2 mouse (green) port | |
| Fan and cooling related | |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrude header | |
| 2 x COM Port headers | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x COM debug header | |
| 1 x LPT header | |
| 1 x Mono-out header(with Amp IC) | |
| 1 x M.2 slot (Key E) | |
| 1 x SMBUS header | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| ASUS EZ DIY | |
| Special Features | – Box Headers |
| Bespoke Motherboard Design & Business Focused Features | |
| – Q-LED Core | |
| – ASUS Self Recovering BIOS | |
| – ASUS Event Log | |
| – ASUS Commercial BIOS kit | |
| – Anti-Moisture | |
| – 24/7 Reliability | |
| – Overcurrent Protection | |
| TPM IC onboard | |
| ASUS Exclusive Software | |
| Software Features | IT Management software supported |
| – ASUS Control Center Express(ACCE) | |
| 128Mb Flash ROM | |
| BIOS | |
| WOL by PME, PXE | |
| Manageability | |
| Cables | |
| Accessories | 2 x SATA 6Gb/s cables |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 SSD screw package | |
| 1 x M.2 Key E screw package | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Windows® 11, Windows® 10 64-bit | |
| Operating System | |
| microATX | |
| Form Factor | 24.4cm x 24.4cm |
| Warranty | 3 Years |
