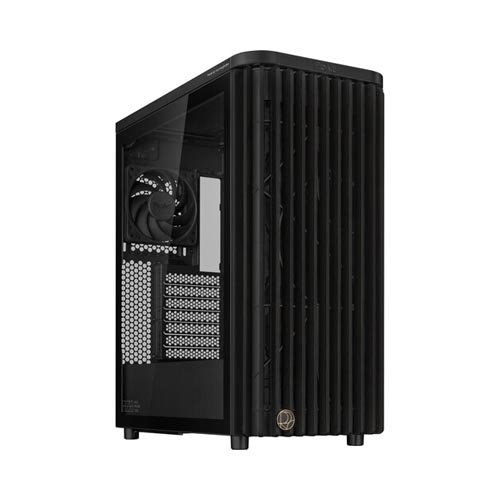

ASUS ProArt PA401 Wood Edition Mid-Tower Black Cabinet PA401-WOOD-TG
Overview :
Show off your PC build with a crafted ash wood design with the ASUS ProArt PA401 Wood Edition Mid-Tower Case. With a pre-installed 120mm rear fan and two 160mm front fans into an integrated fan hub, a tempered glass side panel, and an open grill for max air intake, this case provides optimal airflow for keeping your system’s temperatures low. You can also opt for liquid cooling with a max top radiator length support of 240mm. The case can fit up to an ATX motherboard and a graphics card of up to 315mm in length.
Naturally Crafted
The case features ash wood, which was specifically chosen for its high durability. The special six-stage design process starts with thermowood treatment that protects the wood from insects, humidity, and heat. Then the wood is shaped, grinded, and refined, then finally finished with a two-step coating for a glossy finish. The result is a case with a wood front panel, a wood I/O panel, and wood handles for a unique look.
Air Superiority
Featuring an open front grill for maximum air intake and ventilation, the case comes with two 160 x 32mm front fans and a 120mm x 28mm PWM fan included.
Tempered Glass Side Panel
A tempered glass side panel allows you to showcase your internal components and lighting effects.
Space for Powerful Components
The case can support a graphics card up to 315mm in length and 105mm in vertical mounting. When it comes to cooling, the case supports liquid cooling with max 240mm top radiator support.
Builder-Friendly Design
Streamline your PC building experience with innovative features such as a secure side panel latch, tool-free drive cage, and detachable rear bracket that allows you to slide a PSU in. The one-stop PWM fan hub can optimize cooling performance. Additionally, rear cable clips help to maintain clean cable management.
Front I/O Optimized for Creators
The front I/O panel features a 20 Gb/s USB-C 3.2 Gen 2×2 port and dual USB-A 3.2 Gen 1 ports.
Superior Storage Expansion
This case supports up to two 3.5″ hard disk drives or up to four 2.5″ SATA SSDs, ensuring ample storage capacity for your data storage needs. This case also has seven expansion card slots.
Specification :
| Compatibility | |
| Motherboard Support | ATX |
| External Drive Bays | No |
| Internal Drive Bays | 2x 2.5/3.5″ |
| Drive Mounting (Non-Bay) | Motherboard Tray |
| 2x 2.5″ | |
| Expansion Slots | 7x Full Height Horizontal |
| Maximum GPU Length | 12.4″ / 315 mm |
| CPU Cooler Height | 6.3″ / 160 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 6.7″ / 170 mm |
| PSU Mounting Location | Bottom |
| Cooling | |
| Fan Mounting | Front |
| 2x 140/160 mm | |
| Top | |
| 2x 120/140 mm | |
| Rear | |
| 1x 120 mm | |
| Fans Included | Front: |
| 2x 160 mm Non-LED (Unspecified rpm) | |
| Rear: | |
| 1x 120 mm Non-LED (Unspecified rpm) | |
| Maximum Radiator Size | Top: |
| 240 mm | |
| Fan Controller Included | Yes |
| Filters Included | Yes: Bottom, Front, Top |
| Inputs / Outputs | |
| I/O | 1x USB-C (USB 3.2 Gen 2×2) |
| 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| 1x 3.5 mm Input/Output | |
| Physical | |
| Windowed Panel | Yes |
| Color | Black |
| Material | Tempered Glass, Wood |
| Built-In Lighting | No |
| Tool-Less Design | Yes |
| Security | No |
| Cable Management Space | Yes |
| Dimensions (W x H x D) | 8.9 x 19.8 x 16.2″ / 225 x 503 x 412 mm |
| Weight | 18.98 lb / 8.61 kg |
| Packaging Info | |
| Package Weight | 21.985 lb |
| Box Dimensions (LxWxH) | 22.3 x 19.4 x 13.6″ |
