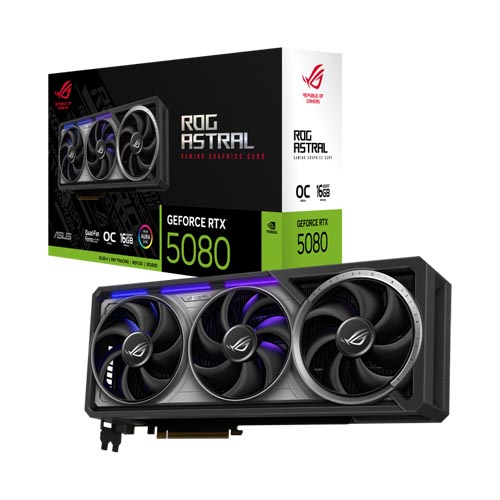

ASUS ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition Graphic Card ROG-ASTRAL-RTX5080-O16G-GAMING
Overview :
ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition – the first ROG quad-fan graphics card delivering unprecedented airflow and air pressure for optimal cooling performance
- Quad-fan design boosts air flow and pressure by up to 20%
- Patented vapor chamber with milled heatspreader for lower GPU temperatures
- Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
- 3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans
- Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting
- Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
- Powerful 80-amp MOSFETs help ensure enhanced performance, stability and higher overclocking potential
- Protective PCB coating guards against moisture, dust, and extreme temperatures.
- Auto-Extreme manufacturing process for precision and reliability
- GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring
Specification :
| Model | ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition |
| Graphic Engine | NVIDIA® GeForce RTX™ 5080 |
| AI Performance | TBD |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | TBD |
| CUDA Core | 10752 |
| Memory Speed | 30 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 2 (Native HDMI 2.1b) |
| Yes x 3 (Native DisplayPort 2.1b) | |
| HDCP Support Yes (2.3) | |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual |
| 1 x ROG Graphics Card Holder | |
| 1 x ROG Velcro Hook & Loop | |
| 1 x ROG Magnet | |
| 1 x ROG Graphics Card Keycap | |
| 1 x ROG PCB Ruler | |
| 1 x Thank You Card | |
| 1 x Adapter Cable (1 to 3) | |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 357.6 x 149.3 x 76 mm |
| 14.1 x 5.9 x 3 inch | |
| Recommended PSU | 850W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.8 Slot |
| AURA SYNC | ARGB |
