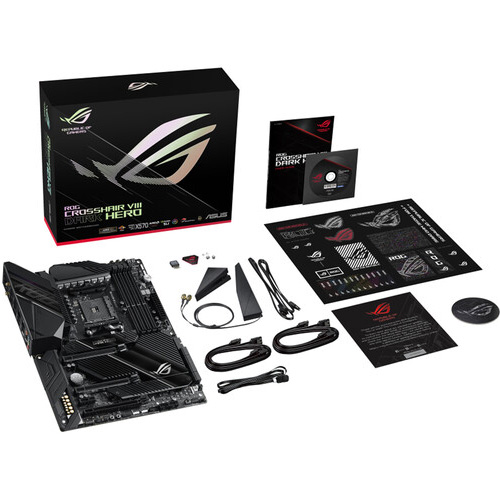

ASUS ROG Crosshair VIII Dark Hero ATX Gaming Motherboard
Overview :Â
Experience high-end gaming and massive utility with the ROG Crosshair VIII Dark Hero ATX Gaming Motherboard from ASUS. This sleek RGB-enabled motherboard is ideal for the builder who wishes to utilize a wide array of gaming-based components. The X570 chipset lays the groundwork for your components, starting with the AM4 socket, made for AMD’s Ryzen brand processors. With eight SATA III, two M.2 NVMe, and four dual-channel DDR4 memory slots, you can enjoy fast loading times and increased multitasking capabilities. One PCIe 3.0 x16 and two PCIe 4.0 x16 slots are available for graphics and utility cards. If you wish to build a system using multiple graphics cards, you can utilize NVIDIA’s 2-way SLI feature and AMD 2-way and 3-way CrossFireX technology for enhanced graphic performance.
The ROG Crosshair VIII Dark Hero motherboard connects to wireless networks using Wi-Fi 6 (802.11ax) technology, while Bluetooth 5.1 allows you to connect wireless headphones and speakers for a cordless experience. Additionally, several USB 3.2 Gen 2 and Gen 1 Type-A ports are available for wired peripherals.
This motherboard is designed for use with Windows 10 (64-bit) operating systems.
Ryzen Brand Processors
Utilizing AMD CPU architecture, the ROG Crosshair VIII Dark Hero motherboard allows you to use Ryzen 5000 series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, and 2000 G-series desktop processors. This wide array of components is ideal for creating an optimized gaming rig.
Enhanced Memory Performance
ASUS Optimem III improves signal integrity and mitigates digital noise, allowing memory kits to run at lower latencies and reduced voltages while operating at higher frequencies.
Premium Components
The AMD X570 chipset is made from premium components and utilizes a 14 2 power stage mosfet system, rated to handle up to 90 amps of power. MicroFine alloy chokes accompany each power stage for enhanced electrical performance. Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures. Dual 8-pin ProCool II power connectors ensure snug and reliable connections for 12-volt power lines. Together, these components manage electrical power for your gaming needs.
Extreme Cooling Power
The ROG Crosshair VIII Dark Hero is equipped with a wide array of cooling enhancements for extreme gaming sessions. A VRM and dual M.2 heatsink design works alongside the passive chipset heatsink to keep components from overheating, while multiple 4-pin fan headers and the ROG Water-Cooling Zone allow you to install a variety of fan- or water-cooling systems for increased cooling capabilities.
RGB Lighting with Aura Sync
With two 4-pin Aura RGB headers and two 3-pin Addressable gen 2 RGB headers, you can connect a variety of colorful devices to your motherboard for a stylized look. Additional lighting is integrated right onto the PCH, I/O, and Armor Zone areas with the Aura illumination system for additional luminescence. All of this is controlled with ASUS’ Aura Sync program, which allows you to adjust lighting effects and colorization with ease. Additionally, you can configure RGB lighting in supported ROG gaming products with the included Armoury Crate software utility.
SupremeFX Audio
Equipped with Japanese-made Nichicon capacitors, the SupremeFX 7.1-channel surround sound creates a rich, high-definition sound experience. 120dB SNR stereo playback output provides a deep sound, allowing you to sink into your games easily. Sonic Studio III is also included, enabling you to fine-tune your audio experience while also allowing you to record various sounds with optional hardware. The audio jacks themselves are gold plated for optimal sound conductivity, and audio line shielding blocks electromagnetic interference from the motherboard or addons for cleaner sound.
DIY Friendly
An array of features focused on making troubleshooting issues easier is built right into the ROG Crosshair VIII Dark Hero motherboard. The pre-mounted I/O shield allows easier installation into the PC case, while ESD guards prevent electrostatic discharge from affecting the back panel USB, audio, and LAN ports. LED Q-code panel shows a two-digit code that reflects system status. FlexKey button acts as a system reset button, Aura lighting activation, safe boot, or BIOS function for quick access.
Enhanced Ports
The two PCIe 4.0 x16 slots have increased durability with Safeslot technology, made for greater shearing resistance and better device retention. Four Q-DIMM clips allow simple installation and handling for memory modules. To arrange front-panel cables, the Q-connector is included. Additionally, the back panel USB ports all supply 5-volt power delivery for external devices. Experience unthrottled transfer speed with AMD STOREMI technology that accelerates startup and software load times by combining SSD performance with optional HDDs.
Optimization Applications
The included AI Suite 3 allows you to fine-tine every aspect of the ROG Crosshair VIII Dark Hero system with ease. Manage and optimize various hardware settings with the TurboV Processing Unit, Energy Processing Unit, fan control, voltage-regulator module, and Turbo application. Ramcache III allows you to cache all storage devices to maximize system resources.
Networking Capabilities
Experience ultrafast wireless-networking speeds with Wi-Fi 6 (802.11ax) capabilities that improve performance in dense environments, providing enhanced gaming speeds. If you prefer a wired connection, you may utilize the on-board 2.5G LAN Ethernet adapter for lag-free gaming. An additional Gigabit Ethernet controller is also available for teaming capabilities by increasing network bandwidth and transfer speeds with less CPU overhead.
Specification :Â
| CPU | |
| Chipset | AMD X570 |
| CPU Socket | AM4 |
| Back Panel I/O | |
| USB | 7 x USB 3.1 / USB 3.2 Gen 2 Type-A |
| 4 x USB 3.1 / USB 3.2 Gen 1 Type-A | |
| 1 x USB 3.1 / USB 3.2 Gen 2 Type-C | |
| Thunderbolt | None |
| Display | None |
| Audio | 5 x 3.5 mm |
| 1 x S/PDIF | |
| Ethernet / Controller | 1 x Gigabit |
| 1 x 2.5Gigabit | |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory | |
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3800, 3866, 4000, 4133, 4266, 4333, 4400, 4600, 4800, 4866, 5000, 5100 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| Storage Expansion | |
| SATA | 8 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | |
| U.2 | None |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 |
| Internal I/O | |
| Expansion Slots | 2 x PCIe 4.0 x16 |
| 1 x PCIe 3.0 x16 | |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) | |
| 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) | |
| Multi-GPU Support | 2-Way, 3-Way AMD CrossFireX |
| 2-Way NVIDIA SLI | |
| Air Cooling | 1 x 4-Pin CPU |
| 3 x 4-Pin System | |
| 1 x 2-Pin W_IN | |
| 1 x 2-Pin W_OUT | |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard |
| 1 x 8-Pin ATX | |
| 1 x 4-Pin ATX | |
| Security | TPM Module |
| LED Header | 4 x RGB |
| Audio | 1 x Speaker |
| Diagnostics | LN Mode, Reset, ReTry, Safe Boot, Slow Mode, Start |
| Front Panel I/O | |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Audio | |
| Audio Codec | SupremeFX ES9023P (7.1-Channel) |
| Wireless | |
| Bluetooth | 5.1 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Software | |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Physical | |
| Form Factor | ATX |
| Dimensions | 6.9 x 12″ / 17.5 x 30.5Â cm |
| Packaging Info | |
| Package Weight | 6.195 lb |
| Box Dimensions (LxWxH) | 14.5 x 12.1 x 4.4″ |
