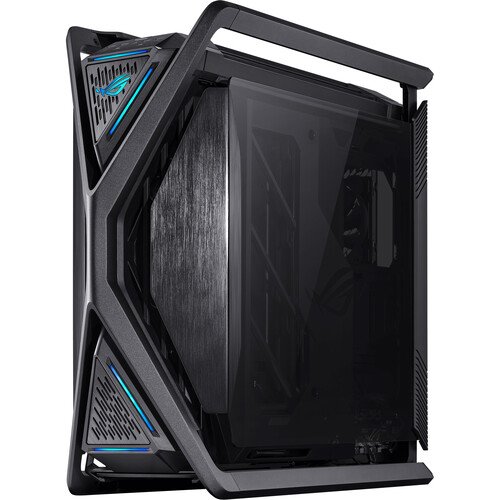

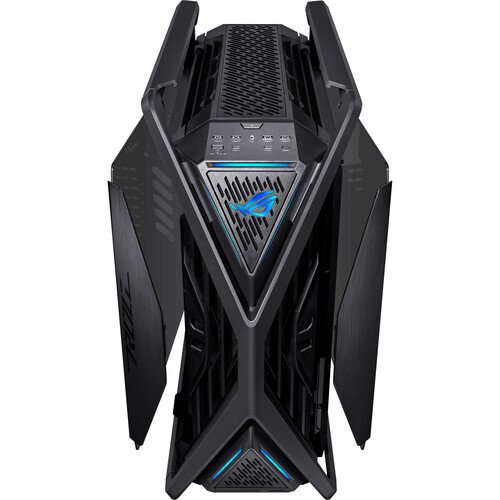

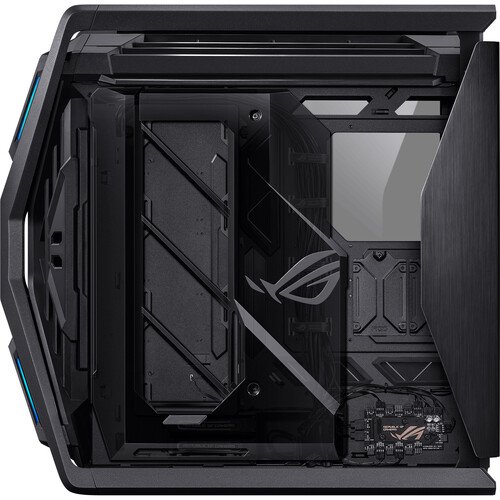

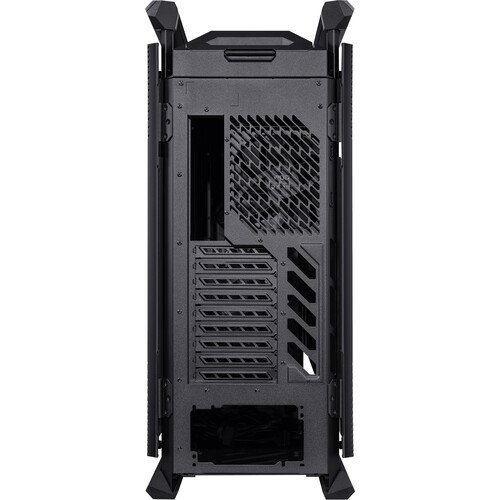

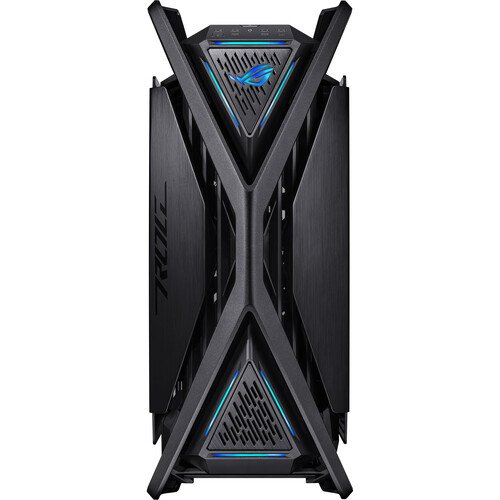

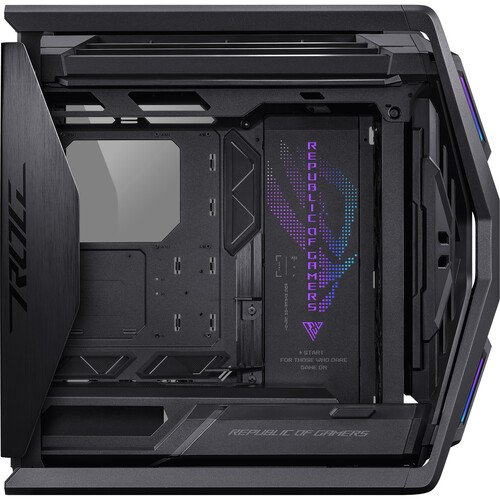

ASUS ROG Hyperion GR701 BTF Edition EATX Full-Tower Cabinet
Overview :
- Extra Clean: Supports Motherboard’s hidden connectors design by having virtually no wire and cluttering.
- Extra Cooling: Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilities
- Extra Space: The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channel
- Extra Convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experience
- Extra Power: Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggedness
Specification :
| Motherboard Support | EATX (12″x10.9″) |
| ATX | |
| Micro-ATX | |
| Mini-ITX | |
| Drive Bays | 5 x 2.5″ Bay |
| 2 x 2.5″/3.5″ Combo Bay | |
| Expansion Slots | 9 |
| 3 (additional vertical) | |
| Front I/O Port | 1 x headphone / Microphone |
| 4 x USB 3.2Gen1 | |
| 1 x USB 3.2 Gen2 Type C | |
| LED Control Button | |
| Reset Button | |
| 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type C this spec might vary by region | |
| Tempered Glass | Left Side |
| Right Side | |
| Radiator Support (Front) | 120 mm |
| 140 mm | |
| 240 mm | |
| 280 mm | |
| 360 mm | |
| 420 mm | |
| Radiator Support (Top) | 120 mm |
| 140 mm | |
| 240 mm | |
| 280 mm | |
| 360 mm | |
| 420 mm | |
| Radiator Support (Rear) | 120 mm |
| 140 mm | |
| Cooling Support (Front) | 3 x 120 mm |
| 3 x 140 mm | |
| Cooling Support (Top) | 3 x 120 mm |
| 3 x 140 mm | |
| Cooling Support (Rear) | 1 x 120 mm |
| 1 x 140 mm | |
| Pre-installed Fans (Front) | 3 x 140 mm |
| PWM | |
| Pre-installed Fans (Rear) | 1 x 140 mm |
| PWM | |
| Maximum CPU Cooler Height | 190 mm |
| Maximum GPU Length | 460 mm |
| Maximum PSU Length | 240 mm |
| Removable Dust Filters | Front |
| Top | |
| Bottom | |
| Maximum Cable Management Space | 34 mm |
| Dimensions | 268 * 639 * 659 mm |
| Weight | 20.8 Kg 21.3 Kg (GR701 BTF Edition) |
| AURA Sync | ARGB |
