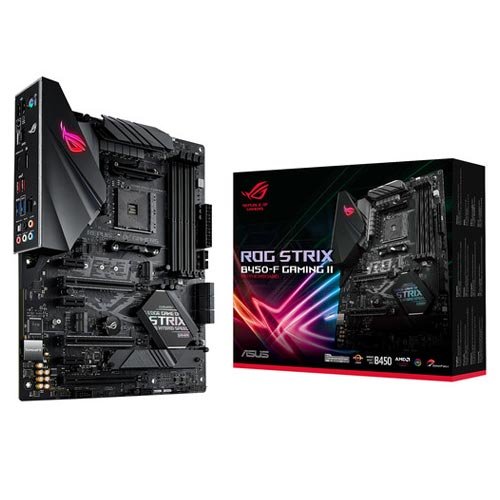

ASUS ROG STRIX B450-F GAMING II AMD AM4 B450 Gaming ATX Motherboard
Overview :
- AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Robust power solution: 8 4 discrete MOS with high-quality alloy chokes and durable capacitors
- Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI® 2.0 and DisplayPort™ 1.2 output support
- Smooth networking: M.2 socket with E-key and Intel® Gigabit Ethernet with ASUS LANGuard
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound
Gear up for heavyweight gaming with the ROG Strix B450-F Gaming II AM4 ATX Motherboard from ASUS. This ROG Strix Gaming ATX motherboard utilizes the AMD B450 chipset and supports CPUs that are compatible with the AM4 socket. Four RAM slots accommodate up to 128GB of dual-channel DDR4 memory, with speeds up to 4400 MHz supported when overclocking. Install drives using two M.2 and six SATA III interfaces, and install multiple GPUs and other adapters using the PCIe 3.0 x16, 2.0 x16, and 2.0 x1 slots. The Gaming B450-Plus II is compatible with AMD 3-Way CrossFireX. An E-Key M.2 slot is also present, allowing for an optional, user-installed wireless adapter card.
A rear I/O panel sports two USB 3.2 Gen 2, three USB 3.2 Gen 1, and two USB 2.0 Type-A ports. Additionally, a UBS 3.2 Gen 1 Type-C port is also present. Connect displays via the DisplayPort or HDMI ports. In addition to a Gigabit Ethernet port, five 3.5mm audio jacks, and S/PDIF port, the rear panel also sports a BIOS flashback button. Internal headers support two USB 3.2 Gen 1 and two USB 2.0 ports on the front panel, as well as three RGB connections, a TPM chip, three system fans, and a Clear CMOS. Audio is handled by the SupremeFX S1200A audio codec, which separately supports 7.1 Surround Sound and 32-bit audio. AI Noise-Cancelling mic support provides smart audio pickup for efficient team chat, while VRM and PCH heatsinks ensure smooth operation and system stability. The ASUS ROG Strix B450-F Gaming II AM4 ATX Motherboard is compatible with Windows 10 64-bit operating systems.
AMD B450 Chipset
USB 3.2 Gen 2
Robust Power Design
Optimized Thermals
Up Your Connection Game
Audio A-Game
Customize Your Look
Specification :
| General | |
| Chipset | AMD B450 |
| CPU Socket | AM4 |
| Back Panel I/O | |
| USB | 2 x USB 3.1 / USB 3.2 Gen 2 Type-A |
| 3 x USB 3.1 / USB 3.2 Gen 1 Type-A | |
| 1 x USB 3.1 / USB 3.2 Gen 1 Type-C | |
| 2 x USB 2.0 Type-A | |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1.2 |
| 1 x HDMI 2.0b | |
| Audio | 5 x 3.5 mm |
| 1 x S/PDIF | |
| Ethernet / Controller | 1 x Intel I211-AT Gigabit |
| PS/2 | 1 x Combo |
| Buttons | BIOS Flashback |
| Memory | |
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3466, 3600, 3866, 4000, 4400 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
| Storage Expansion | |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified)) |
| 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | |
| U.2 | None |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Internal I/O | |
| Expansion Slots | 2 x PCIe 3.0 x16 |
| 1 x PCIe 2.0 x16 (x4 mode) | |
| 3 x PCIe 2.0 x1 | |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
| 1 x USB 2.0 Header (Supports 2 USB Type-A Port) | |
| Multi-GPU Support | 3-Way AMD CrossFireX |
| Air Cooling | 2 x 4-Pin CPU |
| 3 x 4-Pin System | |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard |
| 1 x 8-Pin ATX | |
| Security | TPM Module |
| LED Header | 3 x RGB |
| Audio | None |
| Diagnostics | Clear CMOS |
| Legacy | 1 x Serial |
| BIOS | |
| ROM | 256 Mb |
| Front Panel I/O | |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Audio | |
| Audio Codec | SupremeFX S1220A (7.1-Channel) |
| Wireless | |
| Module Support | 1 E Key M.2 |
| Software | |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Physical | |
| Form Factor | ATX |
| Dimensions | 9.6 x 12.0″ / 24.4 x 30.5 cm |
| Packaging Info | |
| Package Weight | 3.77 lb |
| Box Dimensions (LxWxH) | 13.3 x 10.7 x 2.8″ |
