Home » Shop » ASUS ROG Strix B650E-F Gaming WiFi motherboard Strix B650E-F Gaming

ASUS ROG Strix B650E-F Gaming WiFi motherboard Strix B650E-F Gaming

29,700

17% Off
Close
Price Summary
  • 35,999
  • 29,700
  • 17%
  • 29,700
  • Overall you save 6,299 (17%) on this product
Out of Stock
Highlights:
  • 12 2 power solution rated for 80A per stage
  • An x16 slot and on-board M.2 slot are PCIe Gen 5-ready
  • 6400 MT/s , AMD EXPO, DRAM IC profiles, and AEMP
  • Easy installation for GPUs and SSDs, plus simple BIOS updates
  • Faster-than-Gigabit WiFi unlocks access to low-interference 6 GHz band

Email when stock available

Found this product at a lower price?
6 People viewing this product right now!
SKU: Strix B650E-F Gaming Category: Tag: GTIN: 4711081906216
Description

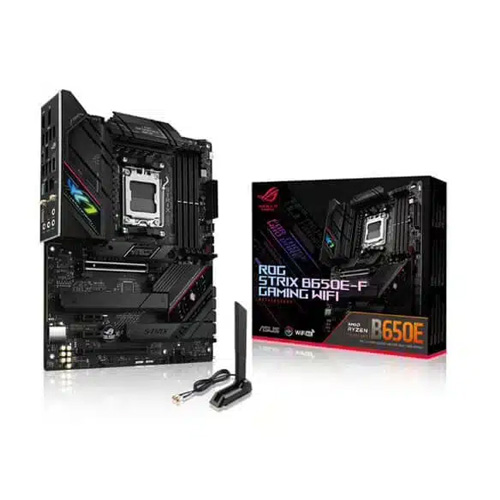

ASUS ROG Strix B650E-F Gaming WiFi motherboard Strix B650E-F Gaming

Overview :

This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.

  • 12 2 power solution rated for 80A per stage
  • An x16 slot and on-board M.2 slot are PCIe Gen 5-ready
  • 6400 MT/s , AMD EXPO, DRAM IC profiles, and AEMP
  • Easy installation for GPUs and SSDs, plus simple BIOS updates
  • Faster-than-Gigabit WiFi unlocks access to low-interference 6 GHz band

Specification :

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset AMD B650
Memory 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphic 1 x DisplayPort*

1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)*

2 x PCIe 4.0/3.0 x1 slots

* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s port

*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

LAN 1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth Wi-Fi 6E

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be

ready in Windows 11 or later.

USB Rear USB (Total 12 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin 12V Power connector

1 x 4-pin 12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™header

1 x COM_DEBUGheader

Special Features Extreme Engine Digi

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– PCIe Slot Q-Release

– Q-LED

– Q-DIMM

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– ProCool

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 headers

Software Features

ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Power Saving

– Two-Way AI Noise Cancellation

AI Suite 3

– TPU

– DIGI VRM

– Turbo app

– PC Cleaner

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x M.2 Rubber Packages

Documentation

1 x User guide

OS Windows® 11 64-bit
Form Factor ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty 3 Years
Additional information
Weight 2 kg
Brand

Motherboard Chipset

Motherboard Form Factor

Motherboard Socket

Product Category

Ram Type

Warranty
