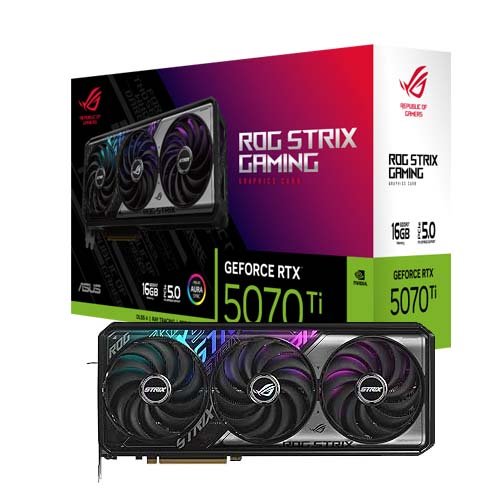

ASUS ROG Strix GeForce RTX 5070 Ti 16GB 256-Bit GDDR7 Graphics Card ROG-STRIX-RTX5070TI-16G-GAMING
Overview :
- 16GB 256-Bit GDDR7
- 2 x HDMI 2.1b 3 x DisplayPort 2.1b
- 8960 Cores CUDA Cores
- PCI Express 5.0 x16
- DLSS 4.0
Specification :
| Brand | ASUS |
| Series | ROG Strix |
| Model | ROG-STRIX-RTX5070TI-16G-GAMING |
| Interface | |
| Interface | PCI Express 5.0 x16 |
| Chipset | |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5070 Ti |
| Architecture | Blackwell |
| CUDA Cores | 8960 Cores |
| Memory | |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR7 |
| 3D API | |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Ports | |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Details | |
| Max Resolution | 7680 x 4320 |
| CrossFireX Support | No |
| SLI Support | No |
| Cooler | Triple Fans |
| Thermal Design Power | 300W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Features | |
| Features | Powered by the NVIDIA Blackwell architecture and DLSS 4 |
| 3.275-slot design: massive fin array optimized for airflow from the three Axial-tech fans | |
| Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance. | |
| 0dB technology lets you enjoy light gaming in relative silence | |
| MaxContact design with vapor chamber ensures efficient heat transfer, providing a premium performance | |
| Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability. | |
| Premium power delivery with digital power control and 15K caps ensure high performance. | |
| Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris. | |
| Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization. | |
| GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring | |
| Form Factor & Dimensions | |
| Form Factor | ATX |
| Max GPU Length | 332 mm |
| Card Dimensions (L x H) | 13.07 x 5.79 x 2.519 inch |
| Slot Width | 3.2 Slots |
| Packaging | |
| Package Contents | 1 x Speedsetup Manual |
| 1 x ROG Graphics Card Holder | |
| 1 x ROG Velcro Hook & Loop | |
| 1 x ROG Magnet | |
| 1 x ROG PCB Ruler | |
| 1 x Thank You Card | |
| 1 x Power Cable (1 to 3) |
