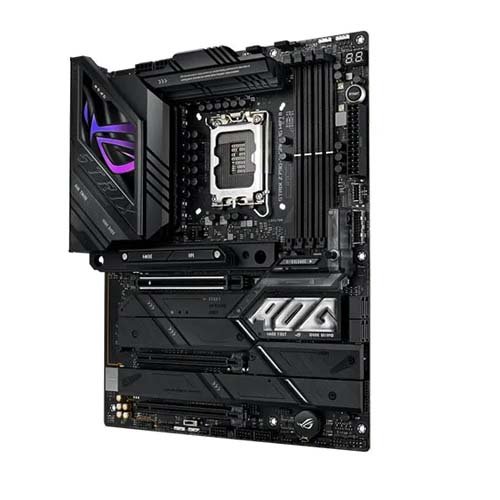

ASUS ROG STRIX Z790-E GAMING WIFI II LGA 1700 ATX Z790 Motherboard
Overview :
Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.
Specification :
| Brand | ASUS |
| Model | Z790-E GAMING WIFI II |
| Supported CPU | |
|---|---|
| CPU Socket Type | LGA1700 |
| CPU Type | 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | INTEL Z790 |
| Memory | |
| Number of Memory Slots | 4x DDR5 |
| Memory Standard | Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel DDR5 Memory Technology |
| Expansion Slots | |
| PCI Express x16 | 1 x PCIe 5.0 x16 slot (support x16 mode), 2 x PCIe 4.0 x16 slots (support x4 mode) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s ports |
| SATA RAID | 0/1/5/10 |
| Onboard Video | |
| Onboard Video Chipset | N/A |
| Onboard Audio | |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Audio Chipset | SupremeFX Shielding |
| Onboard LAN | |
| LAN Chipset | ASUS LANGuard |
| Max LAN Speed | 1 x Intel® 2.5Gb Ethernet |
| Rear Panel Ports | |
| USB | 1, x USB 20Gbps port (1 x USB Type-C®) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®) |
| S/PDIF Out | 1 x optical S/PDIF Out connector |
| Audio Ports | 5 x Gold-plated audio jacks |
| Video Ports | 1 x DisplayPort, 1 x HDMI™ port |
| HDMI | 1 x HDMI |
| Onboard USB | |
| Onboard USB | Rear USB (Total 12 ports), ront USB (Total 11 ports) |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX Form Factor |
| Power Pin | 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors |
| Dimensions | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
