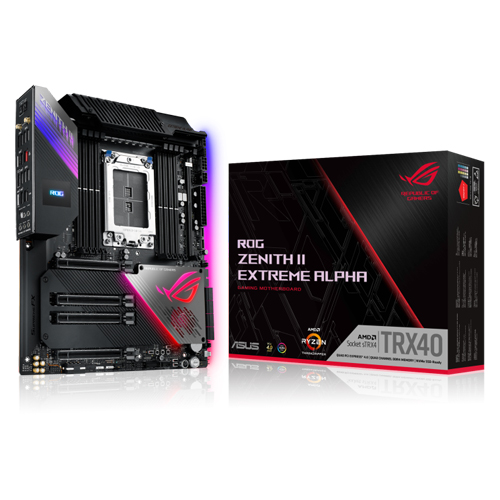

ASUS ROG Zenith II Extreme Alpha AMD TRX40 E-ATX Motherboard
Overview :
- Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
- Robust power delivery: Optimized power solution with 16 Infineon TDA21490 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
- Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
- High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
- Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
- DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey
ROG Zenith II Extreme Alpha
ROG Zenith II Extreme Alpha is locked, loaded and ready to unleash the savage computing power of the groundbreaking 64-core AMD Ryzen Threadripper CPUs. Freshly equipped with 16 high-current 90A power stages our new goliath delivers supreme efficiency and enhanced headroom for overclocking, empowering you to push performance as never before. Maximized lane bandwidth lets you connect up to 33 devices simultaneously, while every single PCIe x16 and M.2 slot is wired with PCIe® 4.0 – so you’re free to equip next-gen graphics cards or NVMe drives without fear of bottlenecks. Massive power, massive bandwidth.
PERFORMANCE
High-end desktop processors have greater power requirements due to the abundance of cores and memory channels. The latest Threadripper evolutions are particularly demanding, so intelligent VRM design and quality components are vital – especially for overclocked CPUs that live closer to the edge of stability. Accompanied with our critically-acclaimed UEFI and AI Suite tuning utility, ROG Zenith II Extreme Alpha offers an accessible range of manual tweaking tools, plus a highly-configurable auto-tuner that maximizes system control and performance with no expert knowledge required.
CONNECTIVITY
Having the bandwidth to fuel multiple PCIe SSDs and graphics cards is part of the allure of high-end desktop platforms. ROG Zenith II Extreme Alpha fully exploits Threadripper’s 64-lane capability, empowering you to connect up to 20 PCIe devices simultaneously. Every single PCIe x16 and M.2 is wired with PCIe 4.0, and the board also accelerates both wired and wireless networking – with both Aquantia 10 Gbps Ethernet and the latest Wi-Fi 6 (802.11ax) onboard.
Storage
ROG Zenith II Extreme Alpha supports up to five M.2 drives for maxed-out storage. Two ride the ROG DIMM.2 module, next to the memory slots, and support drives up to 110m. There are another two slots under the aluminum heatsink cover, with a fifth one at the rear of the board. Every one of these slots is wired to support full PCIe 4.0 bandwidth, so they’re compatible with the very latest NVMe SSDs – laying the foundation for the ultrafast transfer speeds needed to support machine-learning algorithms and drive higher-resolution game textures.
COOLING
Great power requires great cooling, so ROG Zenith II Extreme Alpha employs large VRM heatsinks that strike the right balance between surface area and mass. The chipset heatsink integrates an active-cooling solution, helping to keep the underlying silicon stay cool under pressure, and also employs the same airflow to chill the SoC VRM. The extra-large heatsinks also cover multiple M.2 slots, meaning Zenith II Extreme Alpha is fully armed to provide the best foundation for extreme PC systems – enabling higher performance at lower temperatures.
AUDIO
Sound is an integral part of gaming immersion. ROG Zenith II Extreme Alpha’s onboard audio joins the latest SupremeFX S1220 codec with a high-end ESS Sabre DAC. Power users in particular pipe content through multiple devices, so our Sonic Studio III software has an intuitive management interface that lets you route sound from applications to specific outputs. The board even supports DTS® Sound Unbound technology, to create three-dimensional audio soundscapes that draw you further into virtual worlds.
PERSONALIZE
In addition to extraordinary performance, ROG Zenith II Extreme Alpha provides extensive styling and customization options to let you build a system that truly stands apart.
Grow Your Gaming World
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Specification :
CPU | Supports CPU up to 64 cores |
Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors | |
* Refer to www.asus.com for CPU support list | |
Chipset | AMD TRX40 |
Memory | 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
AMD Ryzen™ Threadripper™ Processors | |
Quad Channel Memory Architecture | |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Multi-GPU Support | Supports NVIDIA® 3-Way SLI® Technology |
Supports AMD 3-Way CrossFireX™ Technology | |
Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) | |
Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : |
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 | |
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 | |
AMD TRX40 chipset : | |
ASMedia® SATA 6Gb/s controller : | |
Support Raid 0, 1, 10 | |
4 x SATA 6Gb/s port(s), | |
LAN | Aquantia AQC-107 10G |
Intel® I211-AT, 1 x Gigabit LAN Controller(s) | |
Anti-surge LANGuard | |
ROG GameFirst V Technology | |
Wireless Data Network | Supports up to 2.4Gbps max data rate |
Wi-Fi 802.11 ax, Bluetooth® 5.0 | |
Supports 2×2 MU-MIMO | |
Intel® Wi-Fi 6 AX200 | |
Supports dual band frequency 2.4/5 GHz | |
Bluetooth | Bluetooth® 5.0 |
Audio | High quality120dBSNR stereo playback output108dBSNR recording input |
ESS® ESS9018Q2C | |
Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
LED-illuminated design Brighten up your build with the gorgeous illuminated audio trace path. | |
ROG SupremeFX8-Channel High Definition Audio CODEC S1220 | |
Impedance sense for front and rear headphone outputs | |
Audio Feature : | |
SupremeFX Shielding™ Technology | |
Sonic Studio III Sonic Studio Virtual Mixer | |
DTS® Sound Unbound | |
Sonic Radar III | |
USB Ports | 3rd Gen AMD Ryzen™ Threadripper™ Processors : |
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) | |
AMD TRX40 chipset : | |
2 x USB 3.2 Gen 2 front panel connector port(s) | |
3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A 1 x Type-C) | |
3 x USB 2.0 port(s) | |
8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) | |
ASMedia® USB 3.2 Gen2x2 controller : | |
1 x USB 3.2 Gen 2×2 (up to 20Gbps) port(s) (1 at back panel, , Type-C) | |
ASMedia® USB 3.2 Gen 1 controller : | |
ROG Exclusive Features | USB BIOS FlashBack™ |
Infineon TDA21472 Power Stage | |
FlexKey Button | |
Clear CMOS button | |
ProbeIt | |
ROG DIMM.2 module with heatsink | |
ROG Aluminum heatsink cover | |
ROG CPU-Z | |
ROG Aura | |
Extreme Engine Digi : | |
10K Black Metallic Capacitors | |
ROG Extreme OC kit : | |
OptiMem III | |
Safe Boot button | |
Slow Mode | |
LN2 Mode | |
UEFI BIOS features : | |
ROG SSD Secure Erase | |
Graphic Card Information Preview | |
ROG Patented Pre-mounted I/O Shield | |
ROG Exclusive Software | |
Mem Tweakit | |
RAMCache III | |
GameFirst V | |
Special Features | BIOS FlashBack™ Button |
Ai Charger | |
LiveDash OLED 1.77” | |
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) | |
MemOK! II | |
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : | |
5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Expert 4, and Turbo App | |
Gamer´s Guardian: | |
DRAM Overcurrent Protection | |
Digi VRM | |
SafeSlot | |
ESD Guards on LAN, Audio,and USB ports | |
AURA : | |
Aura Lighting Control | |
Aura RGB Strip Headers | |
Addressable Gen 2 Header | |
ASUS Exclusive Features : | |
AI Suite 3 | |
Pre-mounted I/O Shield | |
ASUS EZ Flash 3 | |
ASUS C.P.R.(CPU Parameter Recall) | |
Clear CMOS Button | |
ASUS Q-Design : | |
ASUS Q-Code | |
ASUS Q-Slot | |
ASUS Q-DIMM | |
ASUS Q-Connector | |
Digi VRM | |
Armoury Crate | |
Back I/O Ports | 4 x USB 3.2 Gen 1 blue |
5 x USB 3.2 Gen 2 (red) (3 x Type-A 1 x Type-C) | |
1 x USB BIOS FlashBack™ Button(s) | |
1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C) | |
5 x LED-illuminated audio jacks | |
1 x Aquantia AQC-107 10G LAN port | |
1 x LAN (RJ45) port(s) | |
1 x Optical S/PDIF out | |
1 x Clear CMOS button(s) | |
Internal I/O Ports | 1 x M.2_3 cold storage Switch |
1 x Chipset Fan Header | |
1 x VRM_HS_FAN Header | |
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) | |
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) | |
2 x USB 3.2 Gen 2 front panel connector | |
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
1 x FlexKey button | |
1 x FS Mode switch | |
1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module | |
2 x W_PUMP connector | |
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) | |
2 x Aura RGB Strip Header | |
1 x WB_SENSOR | |
1 x 6-pin EATX 12V Power connector | |
2 x 8-pin EATX 12V Power connectors | |
1 x 4-pin EZ_PLUG Power connector(s) | |
7 x ProbeIt Measurement Points | |
1 x BIOS Switch button(s) | |
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) | |
1 x RSVD Switch | |
2 x Addressable Gen 2 header(s) | |
1 x TPM header | |
8 x SATA 6Gb/s connector(s) | |
1 x CPU Fan connector(s) | |
1 x CPU OPT Fan connector(s) | |
2 x Chassis Fan connector(s) | |
1 x H_AMP fan connector | |
1 x 24-pin EATX Power connector(s) | |
1 x Front panel audio connector(s) (AAFP) | |
1 x Node Connector(s) | |
1 x LN2 Mode jumper(s) | |
1 x Safe Boot button | |
1 x ReTry button | |
1 x W_IN header | |
1 x W_OUT header | |
1 x W_FLOW header | |
1 x Speaker connector | |
1 x Start button | |
Accessories | 1 x Wi-Fi moving antenna |
1 x ROG Multi-Bit screwdriver | |
6 x SATA 6Gb/s cable(s) | |
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) | |
1 x Fan Extension Card II power cable | |
1 x Fan Extension Card II NODE connector cable | |
1 x Fan Extension Card II screw package | |
1 x ROG DIMM.2 with heatsink | |
1 x M.2 Pad for ROG DIMM.2 | |
User´s manual | 1 x ROG logo plate sticker |
1 x ROG big sticker | |
1 x Thermistor cable(s) | |
1 x ROG coaster(s) | |
2 x ROG weave SATA 6G cable | |
1 x ROG Thank you card | |
BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1 |
Manageability | WOL , PXE |
Operating System | Windows® 10 64-bit |
Form Factor | 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm ) |
Extended ATX Form Factor | |
Note | |
* When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode | |
** When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled | |
*** Supports PCIE RAID configurations via onboard M.2 storages. |
