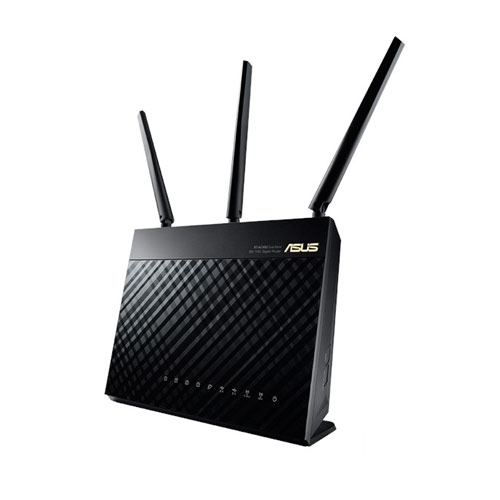

Asus RT-AC68U Wireless Dual-Band AC1900 Gigabit Router
Overview :
AC1900 Dual Band Gigabit WiFi Router with MU-MIMO, AiMesh for mesh wifi system, AiProtection network security powered by Trend Micro, Adaptive QoS and Parental Control

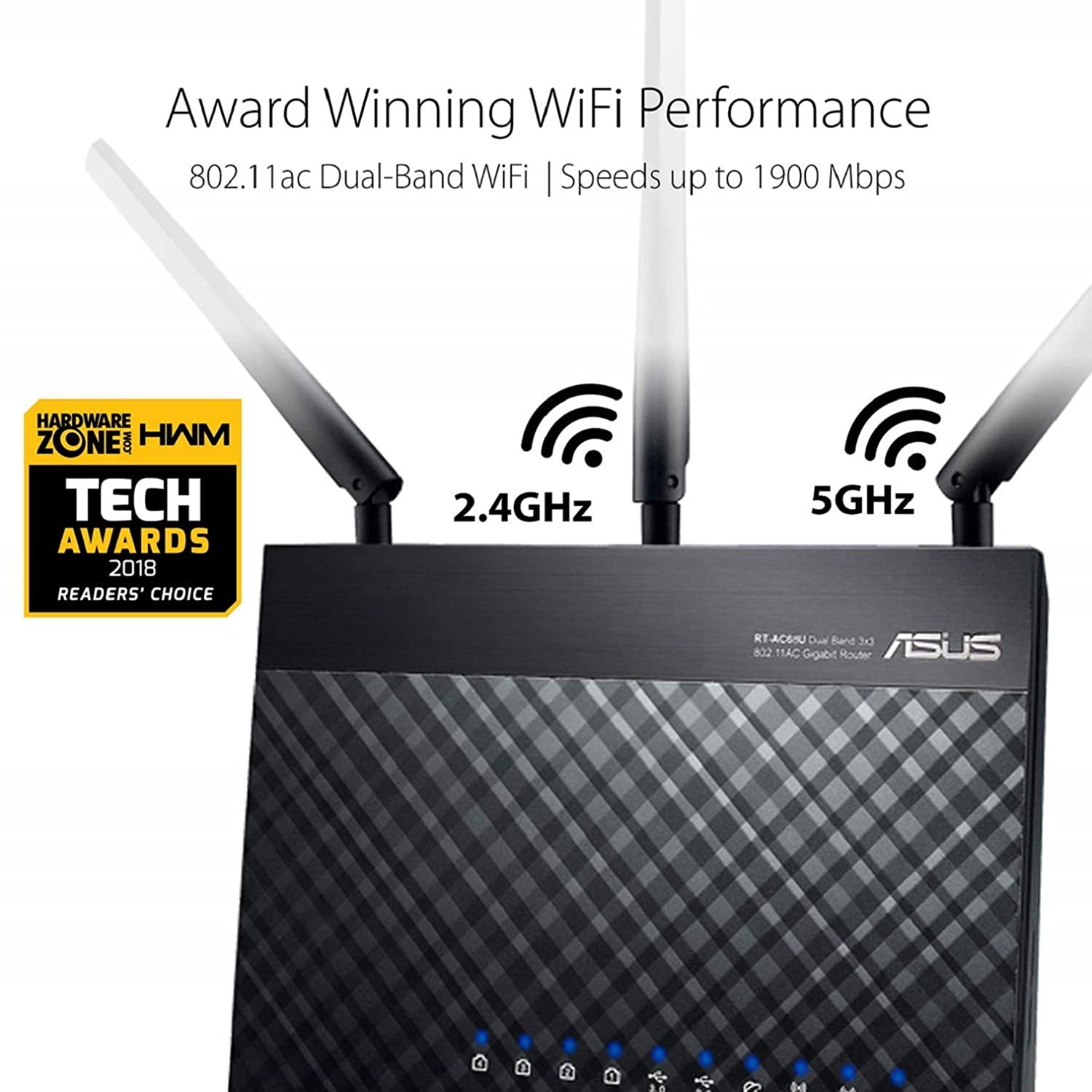

- Great Wi-Fi – Enjoy the combined dual-band speeds of up to 1900Mbps, 3X faster than 802.11n routers
- Ultrawide Coverage – High-performance antennas and ASUS AiRadar eliminate dead spots

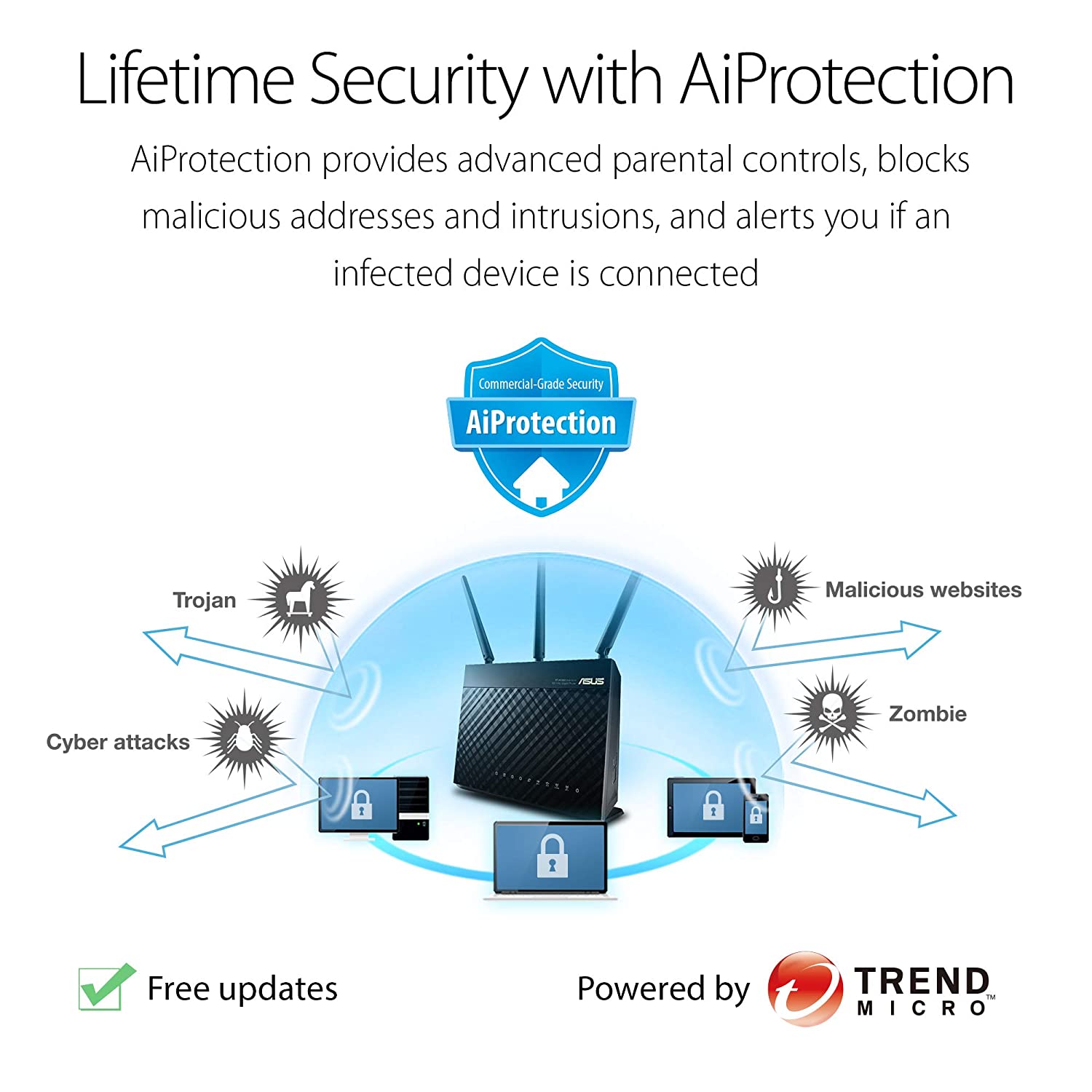

- Commercial-grade Security – AiProtection, powered by Trend Micro™, blocks and neutralizes internet security threats for all your connected smart devices

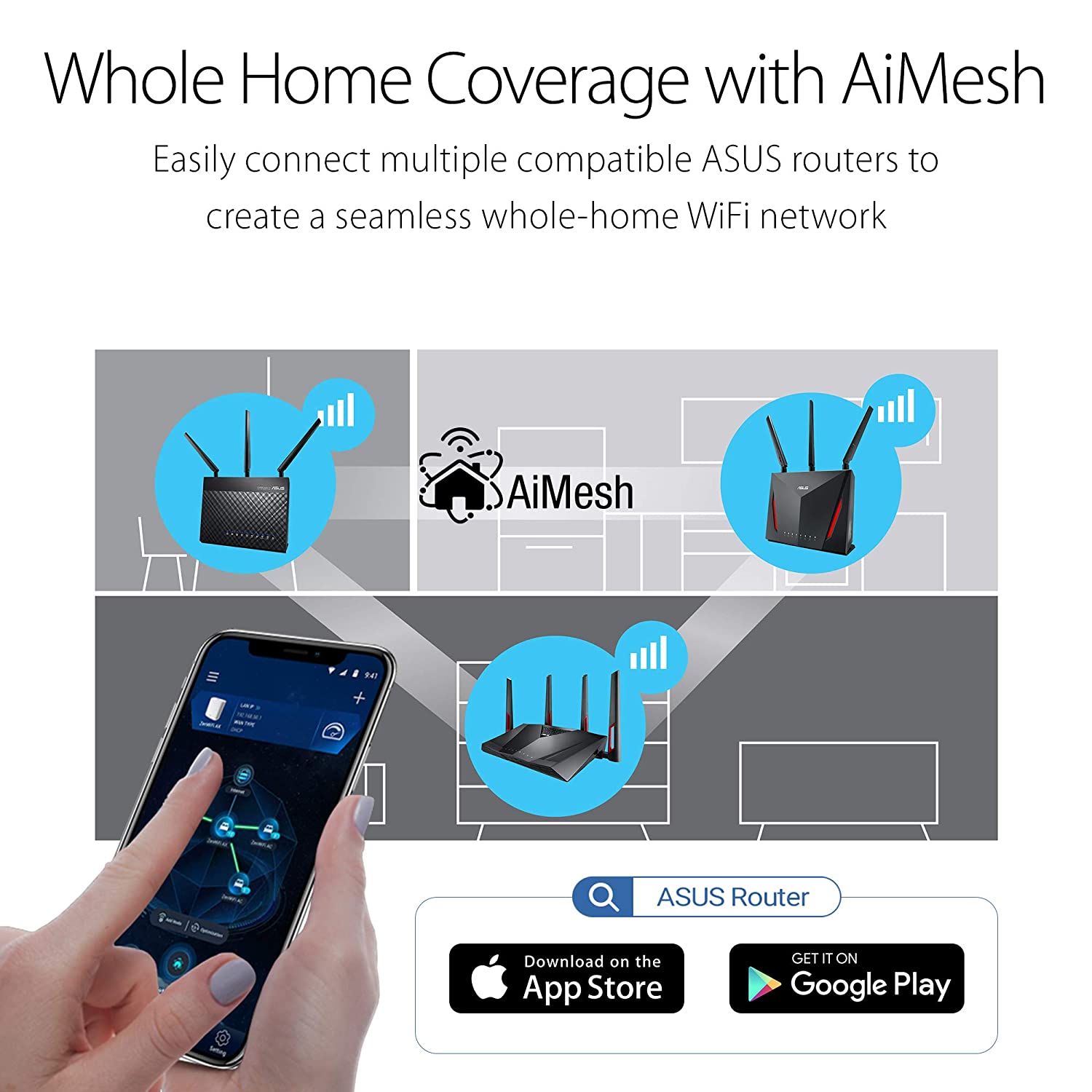

- AiMesh Supported – Connect your RT-AC68U to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
- Flexible Connectivity Options– 5X Gigabit Ethernet ports, 1X ultrafast USB 3.1 port and 1X USB 2.0 port
Specification :
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
| Product Segment | AC1900 ultimate AC performance : 600 1300 Mbps |
| Coverage | Large homes |
| Data Rate | 802.11n : up to 450 Mbps |
| 802.11n TurboQAM : up to 600 Mbps | |
| 802.11ac : up to 1300 Mbps | |
| Antenna | External antenna x 3 |
| Transmit/Receive | MIMO technology |
| 2.4 GHz 3 x 3 | |
| 5 GHz-1 3 x 3 | |
| Memory | 128 MB Flash |
| 256 MB RAM | |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall：SPI intrusion detection,DoS protection |
| Access control：Parental control, Network service filter, URL filter, Port filter | |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| WAN Bridge support | |
| Multicast Proxy support | |
| Multicast Rate Setting support | |

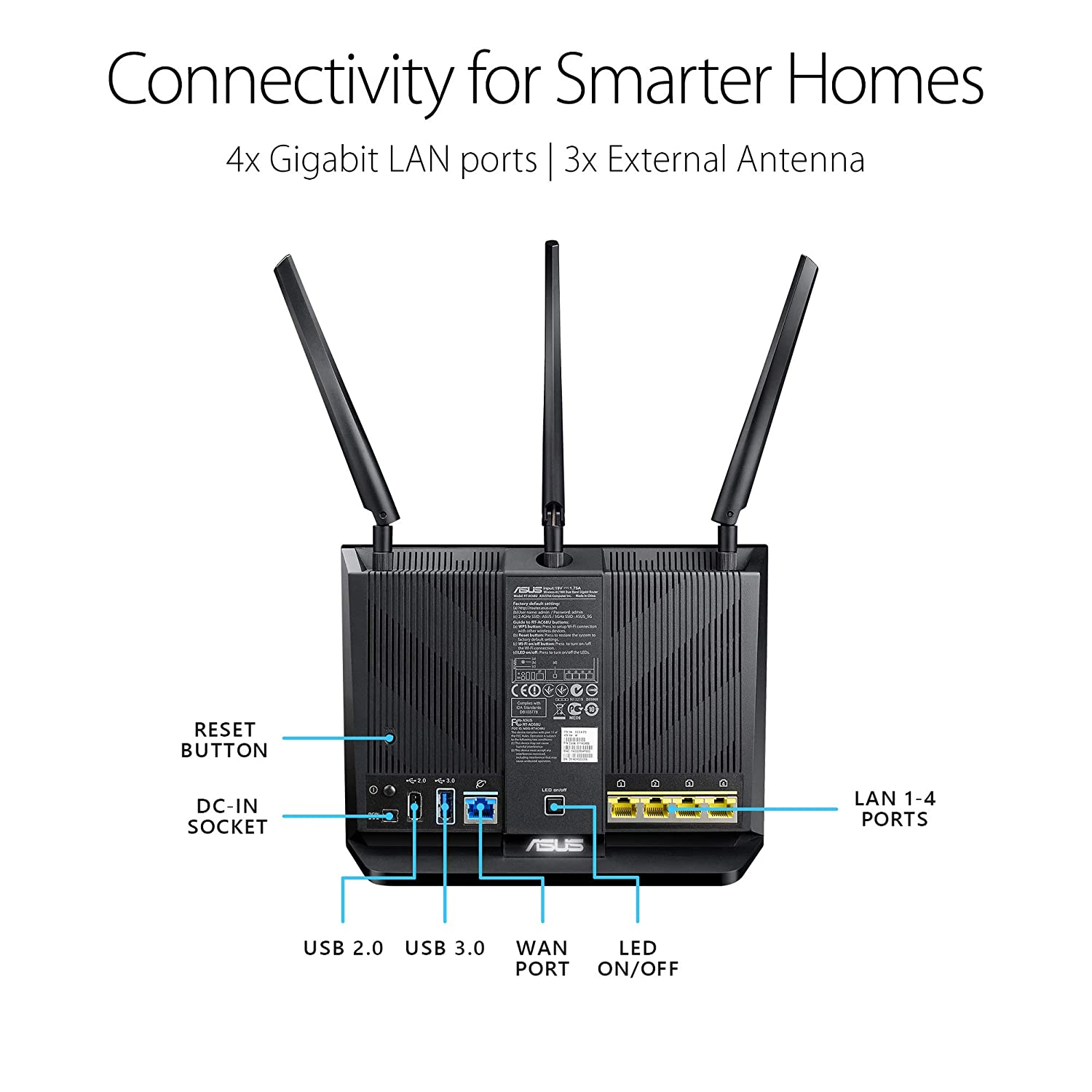

| Ports | RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1 |
| USB 2.0 x 1 | |
| USB 3.0 x 1 | |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button |
| Features | Airtime Fairness |
| Adaptive QoS | |
| AiProtection | |
| Parental Control | |
| Guest Network : 2.4 GHz x 3, 5 GHz x 3 | |
| VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server | |
| VPN client : PPTP client, L2TP client, OpenVPN client | |
| Mac OS Backup | |
| Enhanced media server (AiPlayer app compatible) | |
| Image : Jpeg | |
| Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg | |
| Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov | |
| AiCloud personal cloud service | |
| 3G/4G data sharing | |
| Printer Server | |
| Multifunctional printer support (Windows only) | |
| LPR protocol support | |
| Download Master | |
| Support bt, nzb, http, ed2k | |
| Support encryption, DHT, PEX and magnet link | |
| Upload and download bandwidth control | |
| Download scheduling | |
| AiDisk file server | |
| Samba and FTP server with account management | |
| Dual WAN | |
| IPTV support | |
| Roaming Assist | |
| LED Indicator | Power x 1 |
| Wi-Fi x 2 | |
| LAN x 4 | |
| WAN x 1 | |
| USB x 2 | |
| Power Supply | AC Input : 110V~240V(50~60Hz) |
| DC Output : 19 V with max. 1.75 A current | |
| OS Support | Windows® 10 |
| Windows® 8.1 | |
| Windows® 8 | |
| Windows® 7 | |
| Windows® Vista | |
| Windows® 2000 | |
| Windows® ME | |
| Windows® XP | |
| Windows® Server 2003 | |
| Windows® Server 2008 | |
| Mac OS X 10.1 | |
| Mac OS X 10.4 | |
| Mac OS X 10.5 | |
| Mac OS X 10.6 | |
| Mac OS X 10.7 | |
| Mac OS X 10.8 | |
| Mac OS X | |
| Linux Kernel (Support Ubuntu only) | |
| Linux | |
| Dimensions | 220 x 83.3 x 160 ~ mm (WxDxH) (Without Bezel) |
| Package Content | 1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router |
| 1 x RJ-45 cable | |
| 1 x Power adapter | |
| 1 x QSG | |
| 1 x Support CD(user manual and ultility) | |
| Operation mode | Wireless router mode |
| Range extender mode | |
| Access point mode | |
| Media bridge mode | |
| Warranty | 3 Years |
