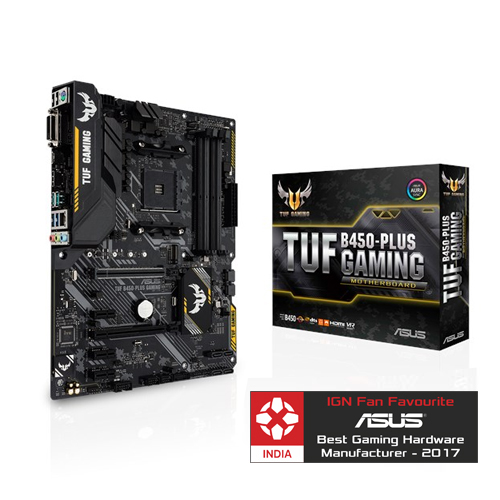

ASUS TUF B450-PLUS GAMING Motherboard
Overview :
- GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Specification :
| CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors |
| Supports CPU up to 8 cores | |
| Chipset | AMD B450 |
| Memory | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors |
| 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC mode) support varies by CPU. | |
| Graphic | Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Multi-VGA output support : HDMI/DVI-D ports | |
| – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
| – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors |
| 1 x PCIe 3.0/2.0 x16 (x16 mode) | |
| AMD Ryzen™ with Radeon™ Vega Graphics Processor | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD B450 chipset | |
| 1 x PCIe 2.0 x16 (max at x4 mode) | |
| 3 x PCIe 2.0 x1 | |
| Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 | |
| 2 x SATA 6Gb/s port(s) | |
| AMD B450 chipset : | |
| 4 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek® RTL8111H |
| TUF LANGuard | |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 |
| Audio Feature : | |
| Exclusive DTS Custom for GAMING Headsets. | |
| Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. | |
| USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : |
| 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) | |
| AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : | |
| 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) | |
| AMD B450 chipset : | |
| 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) | |
| AMD B450 chipset : | |
| 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) | |
| AMD B450 chipset : | |
| 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) | |
| Special Features | ASUS TUF PROTECTION |
| ASUS SafeSlot: Protect your graphics card Investment | |
| ASUS ESD Guard: Enhanced ESD protection | |
| ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| ASUS DIGI VRM: 6 Phase digital power design | |
| AURA : | |
| Aura Lighting Control | |
| Aura RGB Strip Headers | |
| ASUS Exclusive Features : | |
| AI Suite 3 | |
| Ai Charger | |
| PC Cleaner | |
| File Transfer | |
| ASUS Quiet Thermal Solution : | |
| Stylish Fanless Design Heat-sink solution & MOS Heatsink | |
| ASUS Fan Xpert 4 Core | |
| ASUS EZ DIY : | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| ASUS Q-Design : | |
| ASUS Q-Shield | |
| ASUS Q-Slot | |
| ASUS Q-DIMM | |
| Overclocking Protection : | |
| ASUS C.P.R.(CPU Parameter Recall) | |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DVI-D | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 1 x 5Gb/s port(s) USB Type-CTM | |
| 2 x USB 3.1 Gen 2 (teal blue)Type-A, | |
| 2 x USB 3.1 Gen 1 (blue) Type-A, | |
| 2 x USB 2.0 | |
| 3 x Audio jack(s) | |
| Internal I/O Ports | 1 x Aura RGB Strip Header |
| 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 6 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) (1 x 4 -pin) | |
| 3 x Chassis Fan connector(s) (3 x 4 -pin) | |
| 1 x AIO_PUMP connector (1 x 4 -pin) | |
| 1 x S/PDIF out header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x COM port header | |
| Accessories | User’s manual |
| ASUS Q-Shield | |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x TUF GAMING Sticker | |
| 1 x TUF Certification card(s) | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
