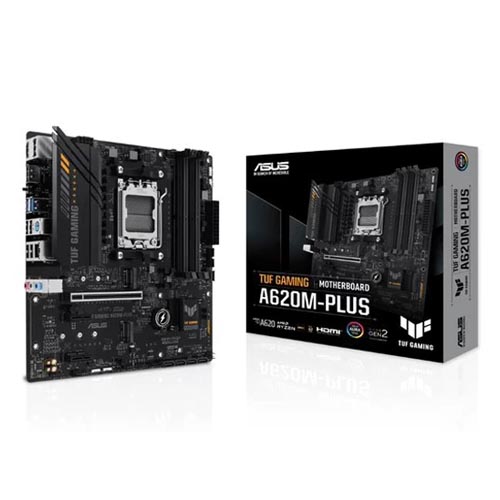

ASUS TUF Gaming A620M-PLUS AM5 Motherboard
Overview :
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Enhanced Power Solution: Six-layer PCB, alloy Chokes, military-grade TUF components and DIGI VRM for maximum durability
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory

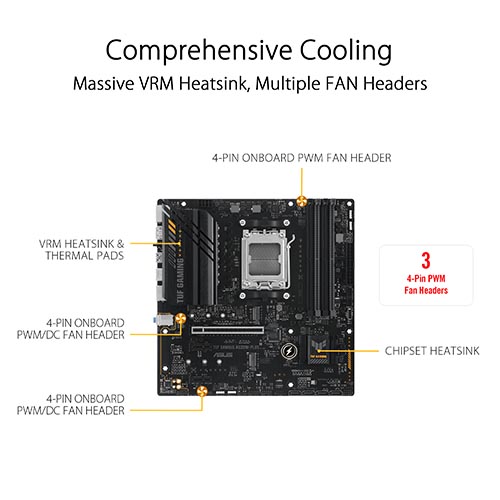

- Comprehensive Cooling: Enhanced VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2

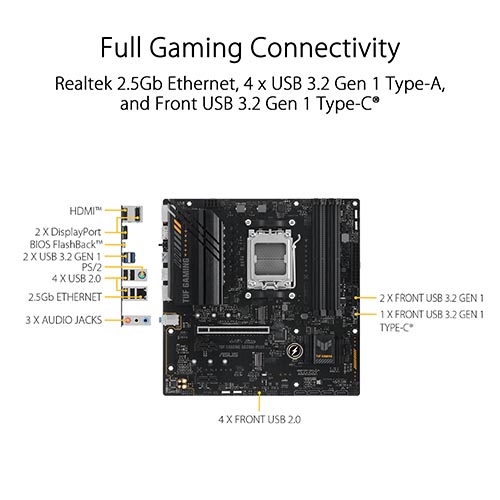

- Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, USB 3.2 Gen 1 Type-A, and front USB 3.2 Gen 1 Type-C®
- Made for Online Gaming: Realtek 2.5Gb Ethernet, TUF LANGuard

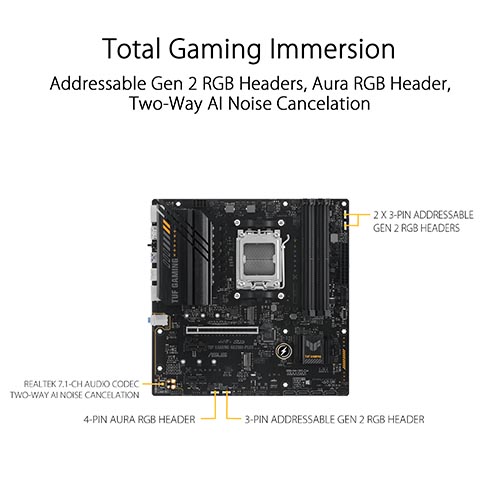

- Aura Sync RGB Lighting: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specification :
| Model Number | TUF GAMING A620M-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| Graphics | 2 x DisplayPort** |
| 1 x HDMI™ port*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Support max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 4.0 x16 slot | |
| AMD A620 Chipset | |
| 2 x PCIe 3.0 x1 slots | |
| * Please check the PCIe bifurcation table on the support site | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD A620 Chipset | |
| 4 x SATA 6Gb/s ports | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| USB | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 2 x DisplayPort | |
| 1 x HDMI™ port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS TUF PROTECTION |
| DIGI VRM | |
| ESD Guards | |
| TUF LANGuard | |
| Overvoltage Protection | |
| SafeSlot Core | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| Aura Sync | |
| Aura RGB header | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 2 | |
| Power Saving | |
| Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TurboV EVO | |
| DIGI VRM | |
| PC Cleaner | |
| TUF GAMING CPU-Z | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

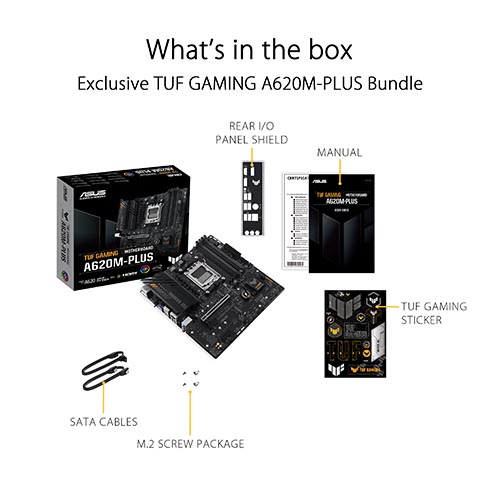

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x TUF Gaming sticker | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x TUF Certification card | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | |
| Warranty | 3 Years |
