ASUS TUF Gaming AX5400 Dual Band WiFi 6 Extendable Gaming Router
Overview :
- Ultrafast WiFi 6 – Enjoy speeds up to 5400 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
- Fast & Stable Wired Gaming – Dedicated gaming port to prioritize connected gaming device.
- Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
- Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.
- Tested Durability and Stable Operation – TUF Gaming AX5400 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
TUF Gaming AX5400
is designed to give you stable and fast wireless and wired connections in device-dense environments. It’s a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
4X Capacity. 2X Faster
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It’s perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
*The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel.

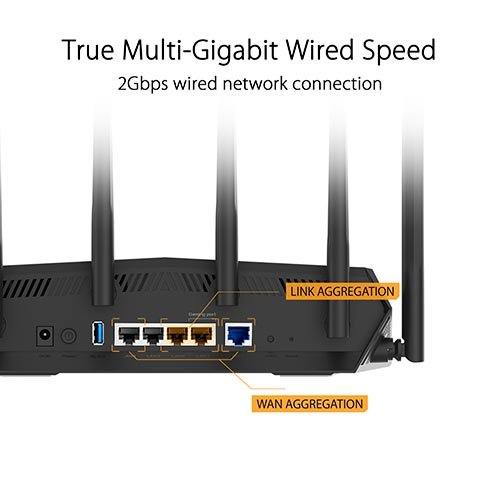

For true multi-gigabit performance, you need both WAN and LAN connections that support these speeds. TUF Gaming AX5400 features both WAN and LAN aggregation, so you can enjoy 2 Gbps wired speeds from your modem all the way to your modem all the way to your PC or Nas.
WiFi that Goes Further
We’ve designed TUF Gaming AX5400 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. With a 4×4 MIMO configuration and separate 2.4 GHz and 5GHz antennas to reduce interference, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX5400 reaches every corner.
Flexible and Scalable Wireless Mesh Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!
Stable and Durable
TUF Gaming AX5400 is engineered to deliver maximum WiFi performance. The vent location and double heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.
One Router.Three Modes.All Game Types.
TUF Gaming AX5400 provides gamers with different features for different game types.
Simultaneous Gaming and VPN
VPN Fusion lets you run both a VPN and an ordinary internet connection – simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX5400 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX5400, and you can keep an eye on everything that’s happening on your network via the handy mobile app.
AiProtection Pro
WPA3 Security Protocol
Advanced Parental Controls
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via TUF Gaming AX5400 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX5400, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
Specification :
| Model Name | TUF-AX5400 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX5400 ultimate AX performance : 574 4804 Mbps |
| AX technology | Yes |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps 802.11ac (1024QAM) : up to 4333 Mbps 802.11ax (2.4GHz) : up to 574 Mbps 802.11ax (5GHz) : up to 4804 Mbps |
| Antenna | External antenna x 6 |
| Transmit/Receive | 2.4 GHz 2 x 2 5 GHz-2 4 x 4 |
| Processor | 1.5 GHz tri-core processor |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Ports | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 2.4GHz x 1 5GHz x 1 WAN x 1 LAN x 4 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2.5 A current |
| Package content | TUF-AX5400 WiFi 6 Gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 600 g |
| AiMesh | AiMesh : Yes Primary AiMesh router : Yes AiMesh node : Yes |
| Router APP | ASUS Router APP : Yes |
| Game | Game Boost/acceleration : Yes |
| Alexa | Support Alexa skil : Yes |
| IFTTT | Support IFTTT : No |
| AiProtection | AiProtection : AiProtection Pro Router Security Assessment : Yes Malicious site blocking : Yes Two-Way IPS : Yes Infected Device Prevention and Blocking ; Yes |
| Parental Control | Parental Control : Yes Parental Control Customized Internet schedule : Yes |
| Traffic Control | Adaptive QoS : Yes Bandwidth Monitor : Yes Bandwidth limiter : Yes Maximum Bandwidth limiter rule : 32 Traditional QoS : Yes Maximum Traditional QoS rule : 32 Traffic Monitor : Yes Real-time traffic monitor : Yes Wired Traffic Monitor : Yes Wireless Traffic Monitor : Yes Traffic Analyzer : Yes Traffic analysis period : Daily, Weekly, Monthly Website history : Yes |
| Wireless | IPv6 : Yes MU-MIMO : Yes Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID : Yes Guest Network : Yes Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 WPS : Yes Wi-Fi MAC address filter : Yes Maximum MAC filters : 64 Wireless scheduler : Yes Airtime fairness : Yes RADIUS Server : Yes Universal beamforming : Yes Explicit beamforming : Yes IGMP snooping : Yes |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN : Yes WAN Aggregation : Yes 3G/4G LTE dongle : Yes Android tethering : Yes Port forwarding : Yes Maximum port forwarding rule : 64 Port triggering : Yes Maximum port triggering rule : 32 DMZ : Yes DDNS : Yes NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server : Yes IPTV : Yes LAN Link Aggregation : Yes Manually assign IP address : Yes Maximum manually assign IP address rule : 64 |
| VPN | VPN Client L2PT : Yes VPN Client OVPN : Yes VPN Client PPTP : Yes VPN Server IPSec : Yes VPN Server OVPN : Yes VPN Server PPTP : Yes VPN Fusion : Yes |
| USB application | File System : HFS , NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle : Yes HDD hibernation : Yes Safely Remove disk : Yes AiCloud : Yes Download master : Yes AiDisk : Yes Media Server : Yes Time Machine : Yes Samba Server : Yes FTP Server : Yes Shared Folder privileges : Yes |
| Administration | Operating mode : Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode Operating system : ASUSWRT Free OS upgrade : Yes Firewall : Yes Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) : Yes SSH : Yes Configuration backup and restore : Yes Diagnosis tools : Yes Feedback system : Yes System log : Yes |
| Warranty | 1 Year |
