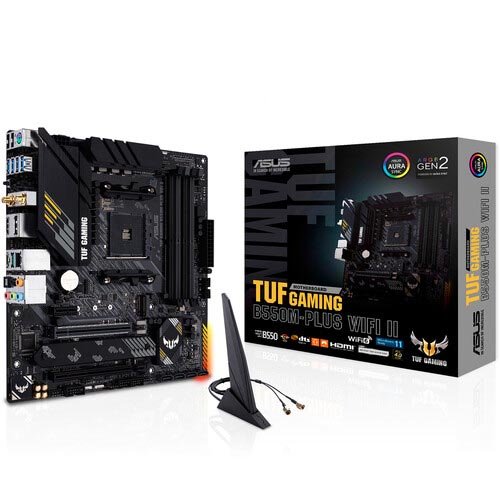

ASUS TUF GAMING B550M-PLUS WIFI II AM4 Micro-ATX Motherboard
Overview :
Get the most performance out of your small factor computer build by installing the ASUS TUF GAMING B550M-PLUS WIFI II AM4 Micro-ATX Motherboard as its foundation. Featuring the AMD B550 chipset, this micro-ATX motherboard supports AMD 5000, 4000, and 3000 series desktop processors with the AM4 socket. You can install up to 128GB of dual-channel DDR4-4866 ECC memory, and two M.2 PCIe solid-state drives. Combined with a PCIe 4.0 x16 expansion card, your system may be outfitted to smoothly handle a variety of demanding task, ranging from high-resolution games to 8K video editing, 3D modeling, and more.
Connect compatible high-speed devices such as external storage drives to the rear panel’s USB 3.2 Gen 2 and Gen 1 ports while reserving the USB 2.0 ports for peripherals such as mice and keyboards. With built-in Wi-Fi 6 support and a 2.5G Ethernet port, you can connect to compatible network devices and enjoy low-latency online gaming performance, smooth 4K video streaming, and fast file transfers. You can customize your computer to match your style, mood, and game by installing LED lighting strips and peripherals using the addressable RGB headers and syncing them with Aura Sync compatible peripherals. The TUF GAMING B550M-PLUS WIFI II motherboard requires Windows 10 or 11 to take advantage of all its features.
Electrical Performance
The 8 2 DrMOS power stages combine high-side and low-side MOSFETs and drivers into a single package while the integrated Digi voltage-regulator module (VRM) delivers clean power to the CPU. The 2 oz copper layers help draw heat away from critical components to maintain optimal performance, and the military-grade chokes and durable capacitors provide enhanced system stability.
Enhanced Cooling
A large VRM heatsink and thermal pad efficiently dissipates heat from key components. The M.2 SSD slots have dedicated heatsinks to help avoid speed throttling. Use the Fan Xpert 2 utility’s comprehensive fan and water pump controls to fine-tune performance.
Storage and Memory
One PCIe 4.0 M.2 slot is available alongside a PCIe 3.0 slot, supporting up to type 2280 NVMe PCIe and SATA SSDs
Four SATA III ports are available for hard drives and 2.5″ SSDs
Supports RAID 0, 1, and 10
Up to 128GB of dual-channel DDR4-4866 (OC) ECC memory can be installed across four slots
PCIe Expansion Slots
1 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slots
Rear Panel USB Connectivity
1 x USB 3.2 Gen 2 Type-A (10 Gb/s)
1 x USB 3.2 Gen 2 Type-C (10 Gb/s)
4 x USB 3.2 Gen 1 Type-A (5 Gb/s)
2 x USB 2.0 Type-A (480 Mb/s)
1 x DisplayPort 1.2
1 x HDMI 2.1
Fast Networking
Dual-band Wi-Fi 6 allows to transfer up to 2.4 Gb/s with compatible devices. The Wi-Fi module also supports pairing with Bluetooth devices. A 2.5G Ethernet port is available for wired network connections.
TUF Protection SafeSlot
This PCIe slot is engineered to provide enhanced retention and shearing resistance. SafeSlot integrates fortifying metal for a stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD Guards
SD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to /- 10 kV of air discharge and /- 6 kV of contact discharge.
TUF LANGuard
TUF LANGuard offers military-grade Ethernet port protection by integrating advanced signal-coupling technology and surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM Overvoltage Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O Panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing.
Enhanced Gaming Immersive Sound
This motherboard includes Realtek 7.1-channel high-definition audio, providing crystal clear 24-bit, 192 kHz playback. Connect your speakers using the 3.5mm audio jacks or S/PDIF port.
Clear Communication
Integrated two-way AI noise cancellation helps to ensure clear online voice and video chats.
RGB Lighting
Connect, customize, and control equipment such as LED light strips with the onboard RGB and addressable RGB gen 2 header to create dazzling effects that can be synchronized with ASUS Aura Sync compatible peripherals such as keyboards, mice, monitors, and more.
Specification :
CPU | |
Chipset | AMD B550 |
CPU Socket | AM4 |
Back Panel I/O | |
USB | 1 x USB 3.1 / USB 3.2 Gen 2 Type-A |
1 x USB 3.1 / USB 3.2 Gen 2 Type-C | |
4 x USB 3.1 / USB 3.2 Gen 1 Type-A | |
2 x USB 2.0 Type-A | |
Thunderbolt | None |
Display | 1 x DisplayPort 1.2 |
1 x HDMI 2.1 | |
Audio | 5 x 1/8″ / 3.5 mm |
1 x S/PDIF | |
Ethernet / Controller | 1 x Realtek 2.5Gigabit |
PS/2 | 1 x Combo |
Wi-Fi Antenna | 2 x Connector |
Buttons | BIOS Flashback |
Memory | |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | ECC Unbuffered |
Storage Expansion | |
SATA | 4 x SATA III |
M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) |
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified)) | |
Optane Memory Support | No |
RAID Support | RAID 0, 1, 10 |
Internal I/O | |
Expansion Slots | 1 x PCIe 4.0 x16 |
1 x PCIe 3.0 x16 (x4 mode) | |
1 x PCIe 3.0 x1 | |
USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
2 x USB 2.0 Header (Supports 4 USB Type-A Port) | |
Air Cooling | 2 x 4-Pin CPU |
2 x 4-Pin System | |
Power Connectors | 1 x 24-Pin Mainboard |
1 x 8-Pin ATX | |
Security | TPM Header |
LED Header | 2 x RGB |
Audio | 1 x Speaker |
Diagnostics | Clear CMOS, Flash BIOS |
Legacy | 1 x Serial |
BIOS | |
ROM | 256 Mb |
Front Panel I/O | |
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
Audio | |
Audio Codec | Realtek (7.1-Channel) |
Wireless | |
Bluetooth | 5.2 |
Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
Software | |
OS Compatibility | Windows 10 |
Windows 11 | |
*As of April, 2022: Check with manufacturer for the most up-to-date compatibility | |
Physical | |
Form Factor | Micro-ATX |
Dimensions | 9.6 x 9.6″ / 24.4 x 24.4 cm |
Packaging Info | |
Package Weight | 3.175 lb |
Box Dimensions (LxWxH) | 11.3 x 11 x 2.7″ |
