Asus TUF Gaming GeForce RTX 3070 Ti OC Edition 8GB GDDR6X Graphics Card TUF-RTX3070TI-O8G-GAMING
Overview :
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- OC edition: Boost clock 1815 MHz (OC mode)/ 1785 MHz (Gaming mode)
- Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.

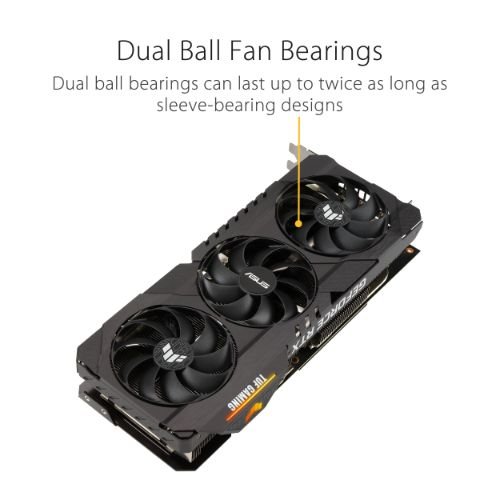

- Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
- Military-grade Capacitors and other TUF components enhance durability and performance.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
BUILT TUF

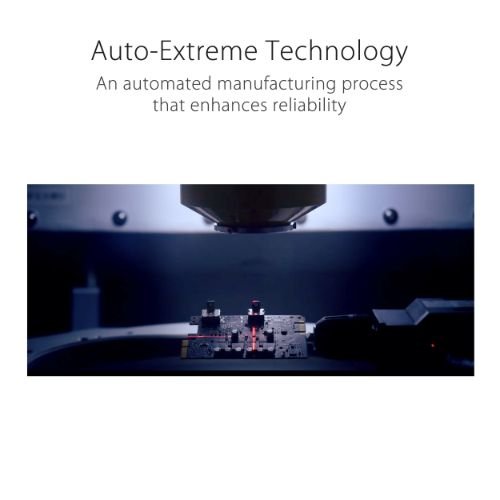

The TUF GAMING GeForce RTX 3070 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithfulâ€, this card has your back.
SPECIFICATIONS | |
---|---|
Brand | Asus |
Model | TUF-RTX3070TI-O8G-GAMING |
Chipset | NVIDIA |
GPU | NVIDIA GEFORCE RTX 3070 Ti |
GPU Series | NVIDIA GeForce RTX 30 Series |
Interface | PCI Express 4.0 |
Engine Clock | OC mode : 1815 MHz (Boost Clock) Gaming mode : 1785 MHz (Boost Clock) |
CUDA Cores | 6144 |
Memory Speed | 19 Gbps |
Memory Size | 8 GB |
Memory Type | GDDR6X |
Memory Interface | 256-Bit |
Max Resolution | Digital Max Resolution 7680 x 4320 |

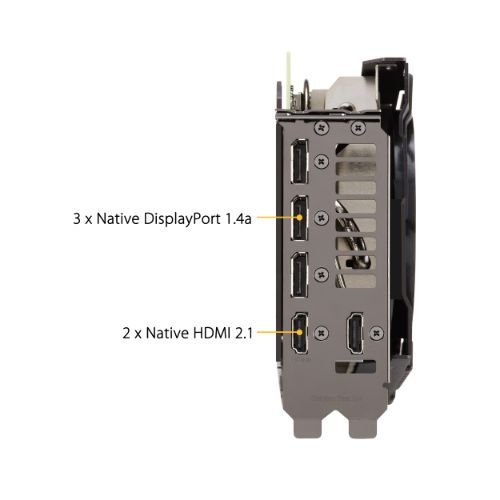

Ports | Yes x 2 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) 4 x Maximum Display Support |
NVlink/ Crossfire Support | No |
DirectX | DirectX 12 |
OpenGL | OpenGL 4.6 |
Recommended PSU | 750W |
Power Connectors | 2 x 8-pin |
Accessories | 1 x TUF certificate of Reliability 1 x Collection card 1 x Speedsetup Manual |
Software | ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
FORM FACTOR & DIMENSIONS | |
Card Dimensions | 299.9 x 126.9 x 51.7 mm 11.81 x 5 x 2.04 inch |

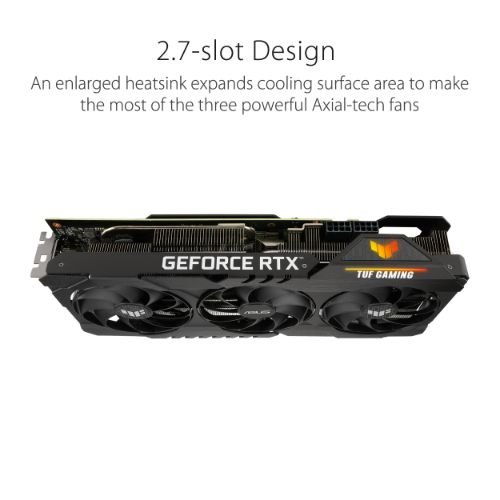

Slot | 2.7 slot |
WARRANTY | |
Warranty | 3 Years Manufacturer’s Warranty |
