Asus TUF Gaming GT501 E-ATX Mid Tower Cabinet With Tempered Glass Side Panel
Overview :
- Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.

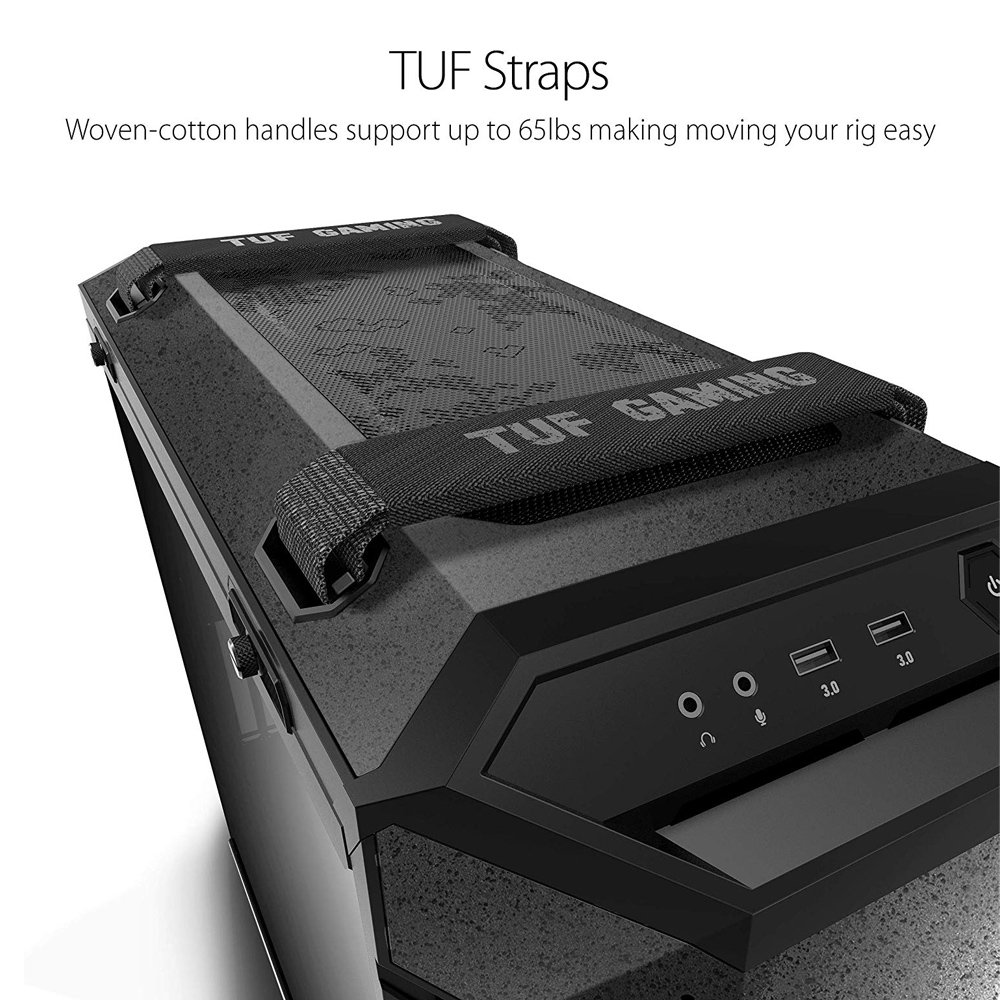

- Mobile battle station: Ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.
- Efficient cooling: Equipped with three 120mm Aura Sync RGB-illuminated fans and one 140mm rear PWM fan, plus up to seven fan-mounting points for targeted airflow.
- Space reserved for both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
- Perfect for TUF Gaming motherboards: Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.
Outstanding Gaming Style

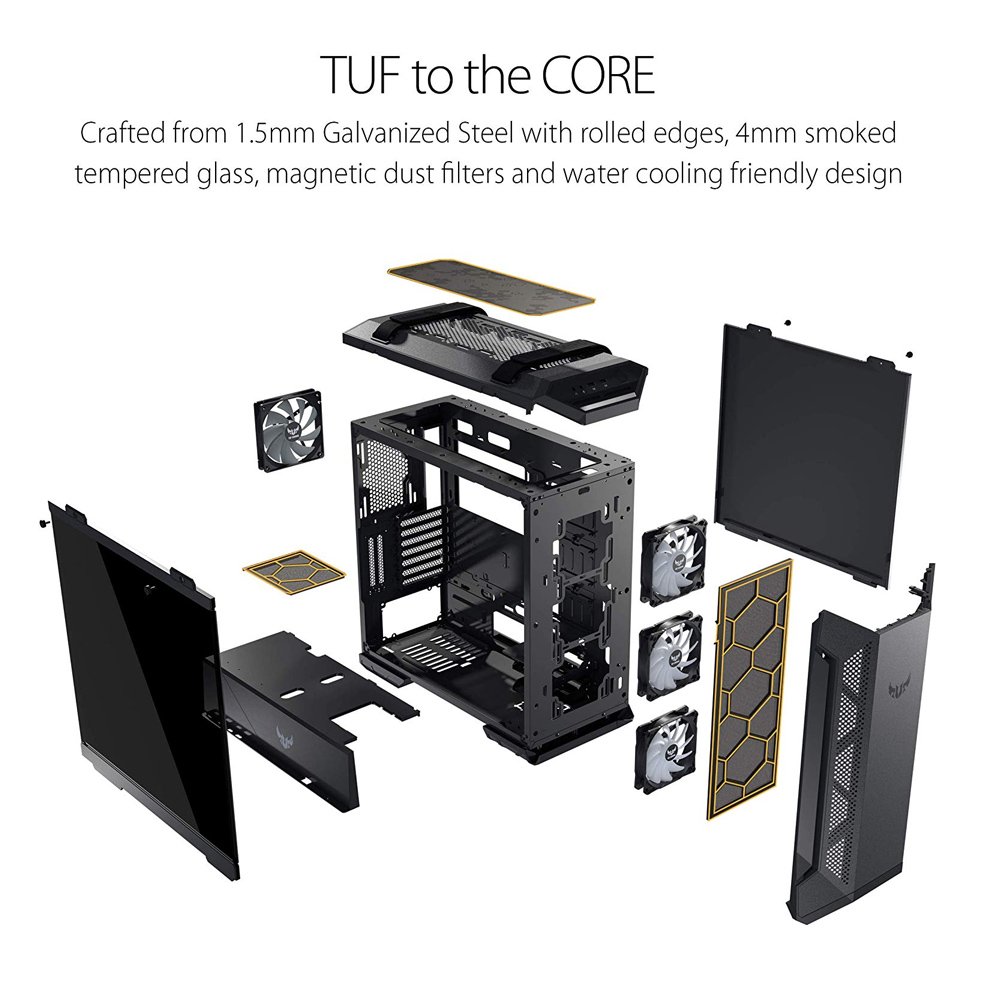

TUF Gaming GT501 is crafted from up to 1.5mm-thick galvanized steel for enhanced durability in understated industrial style, and has a special coating that resists scuffs and scratches. It’s fitted with two ergonomic, woven-cotton handles, rigorously tested to support up to 30kg – so it’s both easy and safe to transport your completed build.
Show Your TUF Personality

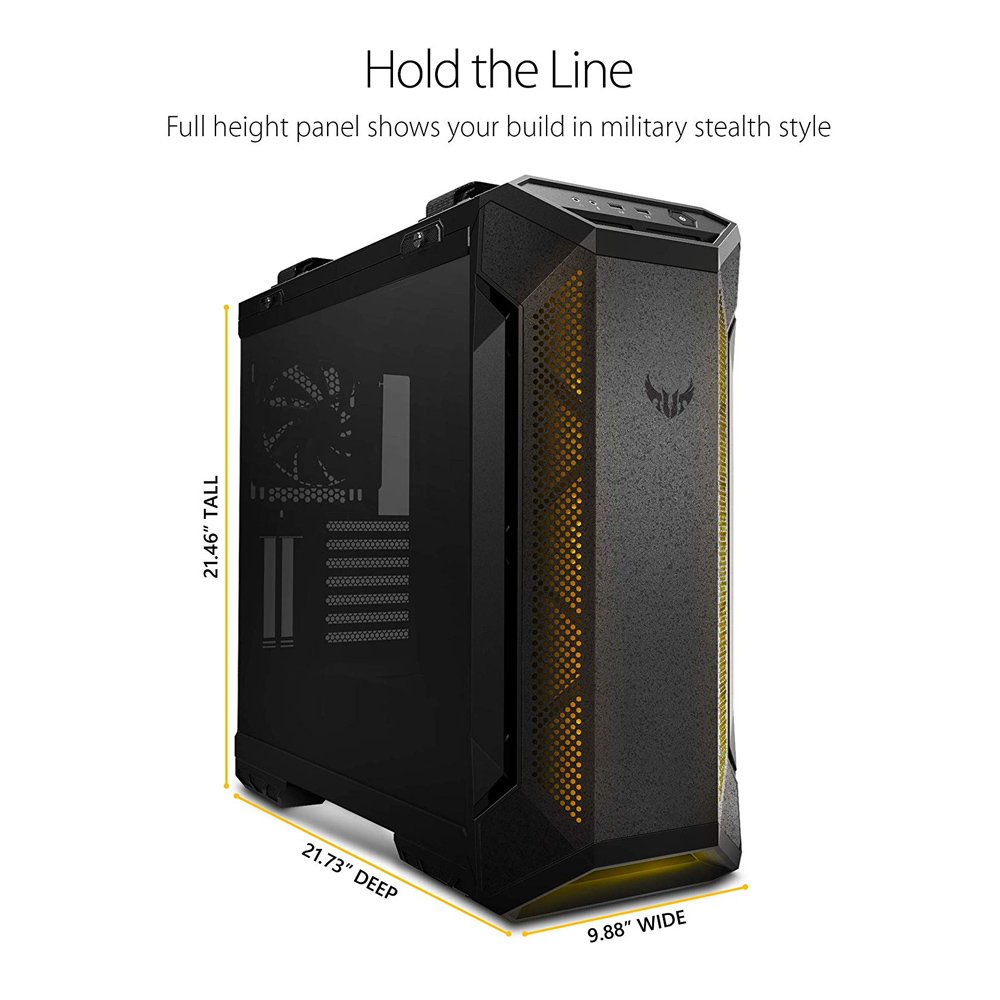

With a full-height, smoked-glass side panel, TUF Gaming GT501 lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.
OUTSHINE THE COMPETITION

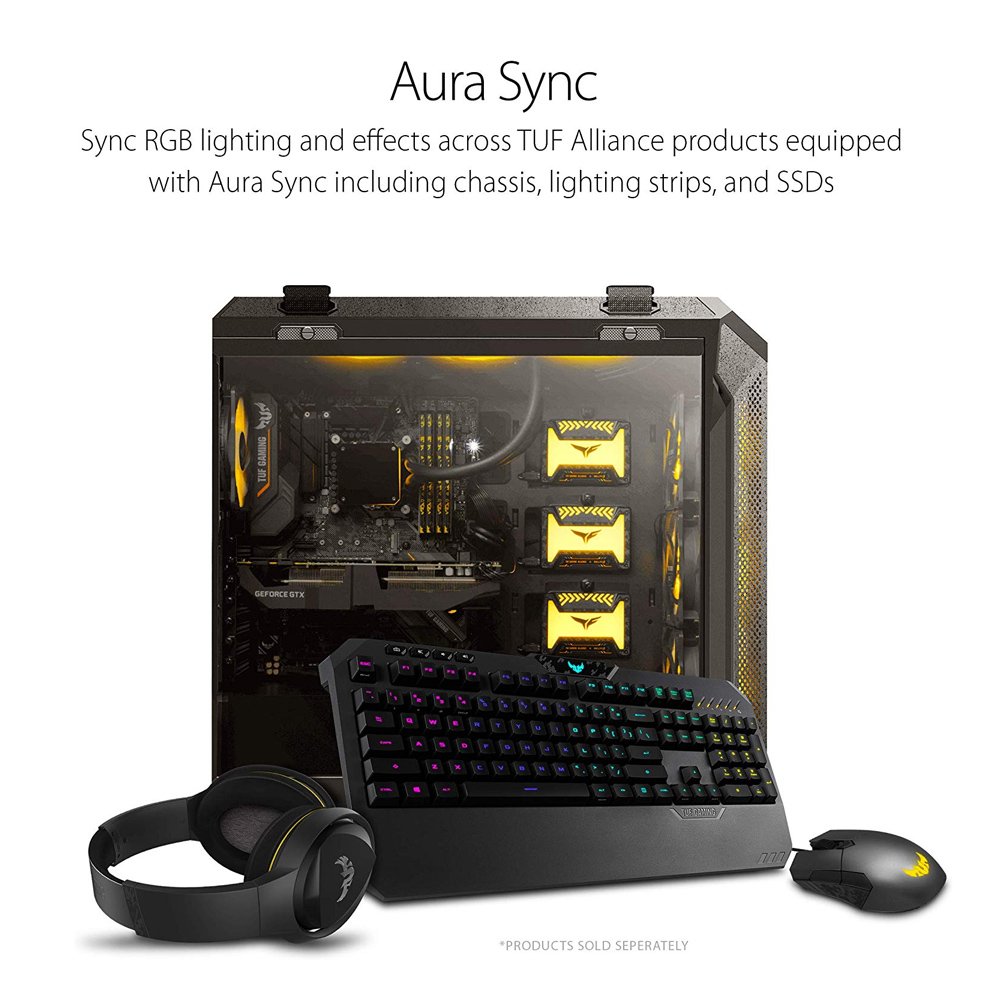

Fitted RGB-enabled fans enable to work with the Aura-supported motherboards. With exclusive ASUS Aura Sync lighting technology*, TUF Gaming GT501 provides ambient lighting that can be synchronized with other Aura Sync-enabled components.

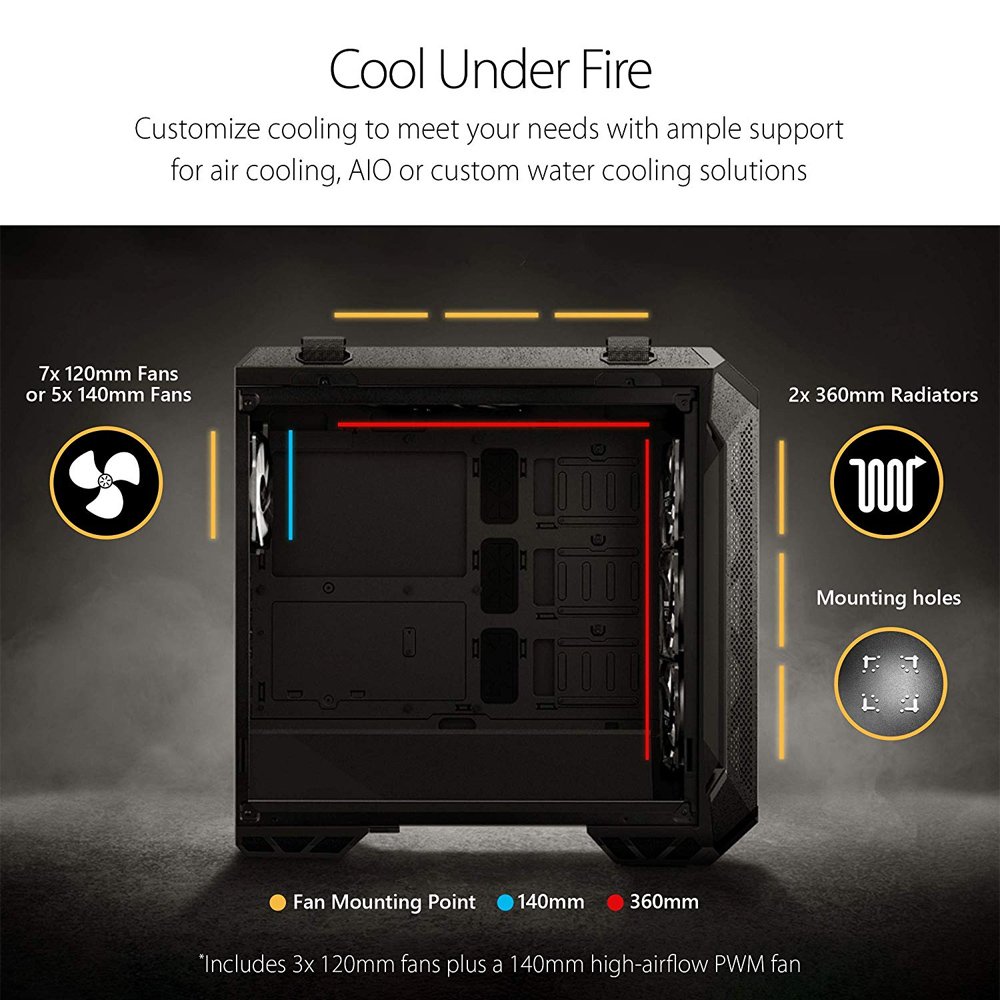

OPTIMIZED COOLING SOLUTION
FAN Capacity
TUF Gaming GT501’s trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There’s also a high-airflow 140mm PWM fan for wider heat removal. It’s also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans.
Radiator Capacity
The case has space reserved both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear for future-proof chills. The interior is also thoughtfully laid out with lots of user-friendly design touches, providing a firm foundation for DIY builds that are easy to keep clean, tidy and cool.
Easy PC DIY
TUF Gaming GT501 makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you’re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.

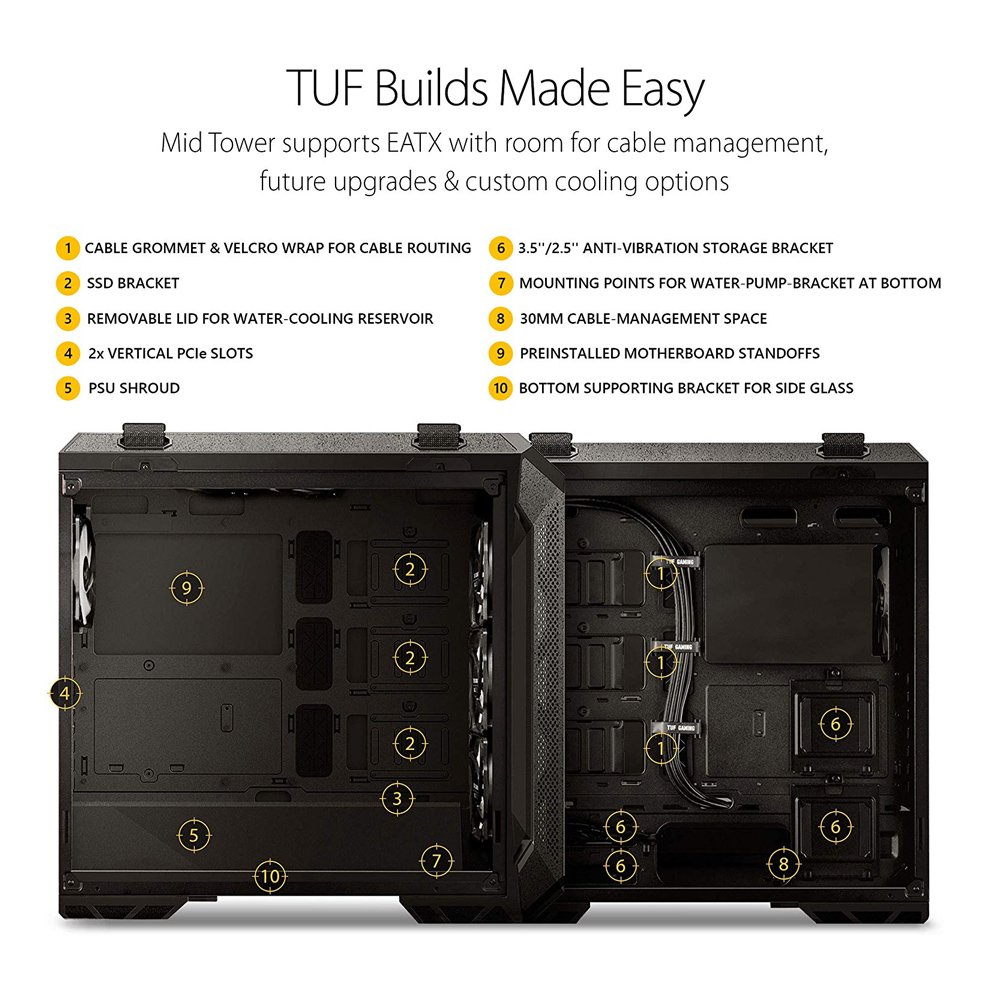

Design in Every Detail
- Cable grommet & Velcro wrap for cable routing
- SSD bracket
- Removable lid for water-cooling reservoir
- 2 x vertical PCIe slots
- PSU shroud
- 3.5”/2.5” anti-vibration storage bracket
- Mounting points for water-pump-bracket at bottom
- 30mm cable-management space
- Preinstalled motherboard standoffs
- Bottom supporting bracket for side glass
Keep Your Build Like New
Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501, keeping your system’s internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
| Dimensions | 251 x 545 x 552 mm (WxDxH) |
| Case Size | ATX Mid Tower |
| Form Factor | ATX/micro ATX/Mini ITX/EATX (12”x10.9”) |
| Drive Bays | 4 x Int x 2.5”/3.5” Combo Bay |
| 3 x Int x 2.5” Bay | |
| System Fan Support | Pre-installed Fans |
| Front: 3x 120mm AURA RGB (1200RPM) | |
| Rear: 1 x 140 PWM | |
| Expansion Slots | 7 2 (additional vertical) |
| Weight | N.W. 10.5 kg |
| Color | Black |
| Front I/O Ports | 2 x USB 3.1 Gen1 |
| 1 x Headphone | |
| 1 x Microphone | |
| Note | Cooling Support |
| Front: 2 x 140mm/ 3 x 120mm | |
| Top: 2 x 140mm/ 3 x 120mm | |
| Rear: 1 x 140mm/120mm | |
| Radiator Support | |
| Front: 120, 140, 240, 280, 360 mm | |
| Top 120, 140, 240, 280, 360 mm | |
| Rear: 120, 140mm | |
| Maximum GPU Length: 420mm | |
| Maximum CPU Cooler Height: 180mm | |
| Maximum PSU Length: 240 mm |
