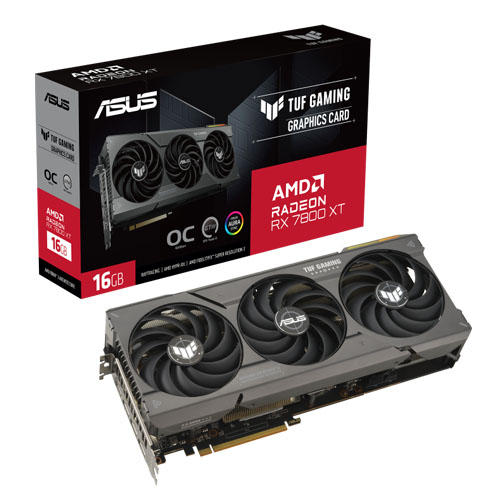

ASUS TUF Gaming Radeon RX 7800 XT OC Edition 16GB GDDR6 Graphic Card
Overview :
- Axial-tech fans scaled up to deliver 24% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Specification :
| Model | TUF-RX7800XT-O16G-GAMING |
| Graphic Engine | AMD Radeon™ RX 7800 XT |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock | OC mode : up to TBD MHz (Boost Clock)/up to TBD MHz (Game Clock) |
| Default mode : up to TBD MHz (Boost Clock)/up to TBD MHz (Game Clock) | |
| Stream Processors | 3840 |
| Memory Speed | 19.5 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1) |
| Yes x 3 (Native DisplayPort 2.1) | |
| HDCP Support Yes (2.3) | |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x TUF certificate of Reliability |
| 1 x TUF Gaming Graphics Card Holder | |
| 1 x TUF Velcro Hook & Loop | |
| 1 x Collection card | |
| 1 x Thank you card | |
| 1 x Speedsetup Manual | |
| Software | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| Dimensions | 319.8 x 150.9 x 59.2 mm |
| 12.6 x 5.94 x 2.33 inch | |
| Recommended PSU | 750W |
| Power Connectors | 2 x 8-pin |
| Slot | 2.96 Slot |
| AURA SYNC | ARGB |
