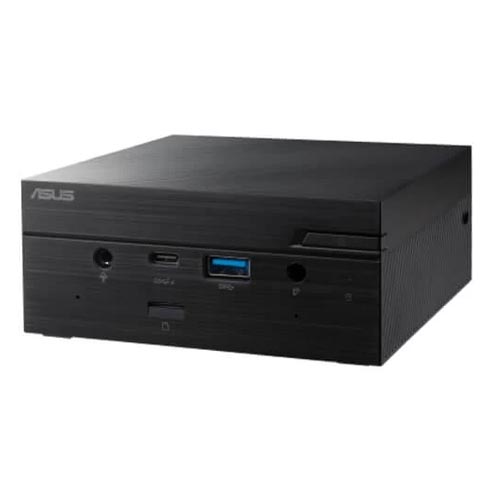

ASUS Ultracompact PN41 Mini PC PN41-BBC041MV (Intel Celeron N4500/4GB Memory/240GB SSD/Keyboard & Mouse)
Overview :
- Packed with power: Strong CPU, graphics and memory combo deliver superb performance
Mini PC PN41 is powered by the latest 11th Gen Intel® Pentium® Silver or Celeron® mobile processor. Compared with traditional same-tier mobile processors, these latest-generation CPUs deliver an overall performance improvement of up to 32%, enabling smoother everyday computing experiences.
Class-leading visual performance is also a feature of Mini PC PN41, with its integrated Intel UHD Graphics achieving an impressive 120% in 3D Mark Fire Strike — an increase of over 90%, compared to the previous-generation model.
- USB-C Power Delivery input: Space-saving design that also reduces cable redundancy
With support for USB Power Delivery input, Mini PC PN41 is able to receive power from a supported display or other device via a connecting cable. The upshot is that the need for separate power adapters for multiple devices can be eliminated, as a single power supply with a 65 W output is able to deliver all the energy required.
This small-but-significant design choice affords the opportunity to minimize the traditional cable jungle and declutter the desktop, promoting a neater, tidier workspace.
- Onboard 2.5 Gbps LAN: High-speed Ethernet built right in, plus diverse connectivity ports
Mini PC PN41 is engineered with onboard networking that runs at up to 2.5 Gbps — or 2.5X faster than even gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient.
Mini PC PN41 also offers comprehensive connectivity with multiple ports, including a USB 3.2 Gen 2 Type-C® port with DisplayPort 1.4 support and a configurable port to support legacy devices, additional displays or multiple network connections. The diverse selection of ports also means that Mini PC41 is able support output to up to three displays simultaneously. With such port versatility, Mini PC PN41 is perfect for a wide range of business scenarios, including signage, point-of-sale (POS) systems and intelligent vending machines.
- Fanless chassis: Support for 6-watt CPU for minimal noise and dust ingress
A fanless chassis is offered as an option when configuring Mini PC PN41. This supports a 6-watt CPU, so it’s ideal for industrial applications, where reliability, durability and low noise levels are paramount. It also has a dedicated heatsink to cool the SSD, keeping the average temperature of the drive at a mere 50°C.
Specification :
| Model Name | PN41-BBC041MV |
| Color | Black |
| CPU | Intel Celeron N4500 Processor 1.1GHz (4M Cache, up to 2.8GHz) |
| Graphics | Intel UHD Graphics for 11th Gen Intel® Processors |
| Memory | 4GB DDR4 2666MHz |
| SSD | 240GB 2.5 SATA |
| Keyboard & Mouse | Wired |
| WLAN | Wi-Fi 6, Bluetooth 5.0, 2*2 (Barebone SKU) |
| Lan | 2.5G LAN, Realtek® RTL8125B-CG |
| Side(Front) I/O | 1 x USB 3.2 Gen2 Type-C(w/ quick charge) |
| 1 x USB3.2 Gen1 Type-A, 1x 4-in-1 Card Reader | |
| 1 x Consumer Infrared Sensor | |
| 2 x Microphone Array | |
| 1x Audio Jack(optional) | |
| 1 x K-Lock(side) | |
| Back I/O | 1 x USB 3.2 Gen1 Type-C (w/ DP output, PD input) |
| 1 x HDMI, 2 x USB 3.2 Gen1 | |
| 1 x 2.5G(RJ45) LAN, 1 x DC-in | |
| Configurable I/O | 1 x VGA Port (Barebone SKU) |
| Power Adaptor&Cord | 19Vdc, 3.42A, 65W Power Adapter |
| OS Type | W/O OS |
| Dimension | 115 x 115 x 49 mm |
| Weight | 700g (include 2.5″ HDD) |
| Warranty | 3 Years |
