ASUS ZenScreen MB16AH 15.6″ 16:9 Portable IPS Monitor
Overview :
The ZenScreen MB16AH 15.6″ 16:9 IPS Monitor is a compact and portable USB-powered display that is ideal for use on-the-go. The ZenScreen MB16AH is compatible with a wide variety of devices thanks to its USB Type-C connectivity. Expand your workspace by powering the ZenScreen with the included power adapter, allowing you to use the USB Type-C cable to mirror your laptop’s display. Built with an IPS (In-Plane Switching) panel, this display features a 1920 x 1080 Full HD resolution, a 700:1 static contrast ratio, and a 250 cd/m² brightness rating for crisp, clear details and vivid colors. Included with this display is the ZenScreen Foldable Smart Sleeve Case, which also doubles as a stand.
Extend Your Vision
ASUS ZenScreen MB16AH is designed to keep you productive, wherever you are. USB Type-C and micro HDMI connectivity enables displaying content from a wide-range of portable devices, so you can enjoy an expansive view for the best work and entertainment experiences.
USB Type-C and Micro HDMI Connectivity
Featuring USB Type-C and micro HDMI connectivity, the ZenScreen MB16AH lets you display content from a wide variety of devices, including laptops, game consoles, and cameras, providing a more expansive view for or play. The reversible, any-way-up USB Type-C design enables quick, hassle-free connection to a wide variety of devices.
Ultraportable Design
The ZenScreen MB16AH is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you’re on the go. It barely tips the scales at a lightweight 730g, and with its ultra-slim 9mm profile it fits easily in any travel bag.
Automatic Screen Orientation
With the DisplayWidget software, the ZenScreen MB16AH can automatically sense its orientation and switch the monitor between landscape and portrait modes. Landscape mode is ideal for presentations and Excel sheets, while portrait mode gives you a perfect view of items such as codes, documents, books, or mobile websites.
Wide Viewing Angles
The ZenScreen MB16AH features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast, even from extreme viewing positions.

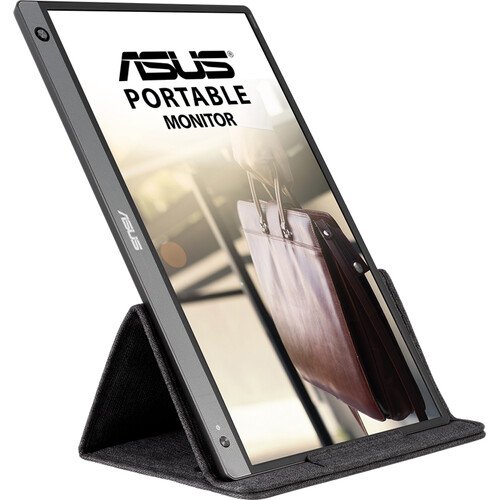

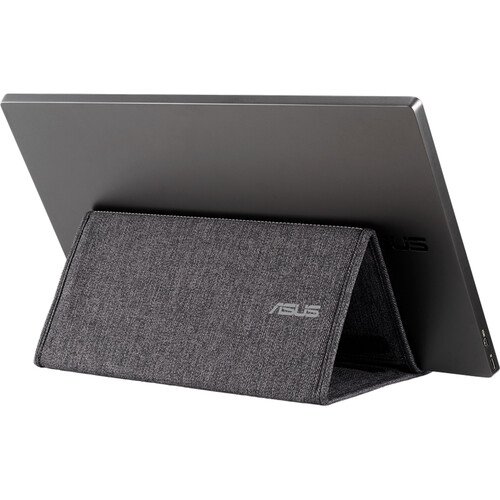

ZenScreen Foldable Sleeve
The new foldable sleeve protects the ZenScreen MB16AH from dust and scratches with lighter weight. The sleeve can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Additionally, the exclusively designed mounting hole on the rear cover, which supports a standard 1/4″ screw thread, allows you to assemble a conventional tripod or tabletop mounting system with ease.
ASUS Blue Light Filter
The exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-Free Technology
It’s time to say goodbye to those tired, strained eyes. ZenScreen MB16AH features TUV Rheinland-certified ASUS Flicker-Free technology to reduce screen flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long hours in front of a display.
Specification :
| Display | |
| Display Size | 15.6″ |
| Panel Type | IPS-Type LCD |
| Aspect Ratio | 16:09 |
| Resolution | 1920 x 1080 |
| Maximum Brightness | 250 nits / cd/m2 |
| HDR Compatibility | None |
| Contrast Ratio | 700:01:00 |
| Dynamic Contrast Ratio | 100,000,000:1 |
| Response Time | 5 ms (GtG) |
| Refresh Rate | 60 Hz |
| Variable Refresh Technology | None |
| Bit Depth / Color Support | 6-Bit (262K Colors) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 13.55 x 7.62″ / 344.16 x 193.59 mm |
| Pixels Per Inch (ppi) | 141 ppi |
| Finish | Anti-Glare / Matte |
| Touchscreen Technology | None |
| Connectivity | |
| Outputs | 1 x Micro-HDMI |
| HDCP Support | Yes |
| USB I/O | 1 x USB-C Unspecified Version |
| Other I/O | 1 x 1/8″ / 3.5 mm Input/Output |
| Speaker | |
| Built-In Speakers | Yes, 2 x 1 W |
| Electrical | |
| Power Consumption | Standby: 0.3 W |
| Typical: 9.0 W | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | External |
| General | |
| Tilt Adjustment | Yes |
| Lock Slot | No |
| Dimensions | 14.2 x 9 x 0.4″ / 360 x 228 x 9 mm (without Stand) |
| Weight | 1.61 lb / 0.73 kg (without Stand) |
| 4.9 lb / 2.2 kg (with Stand) | |
| Packaging Info | |
| Package Weight | 4.16 lb |
| Box Dimensions (LxWxH) | 19.7 x 12.3 x 3.3″ |
