ASUS ZENWIFI AX (XT8) TRI-BAND AX6600 ROUTER
Overview :

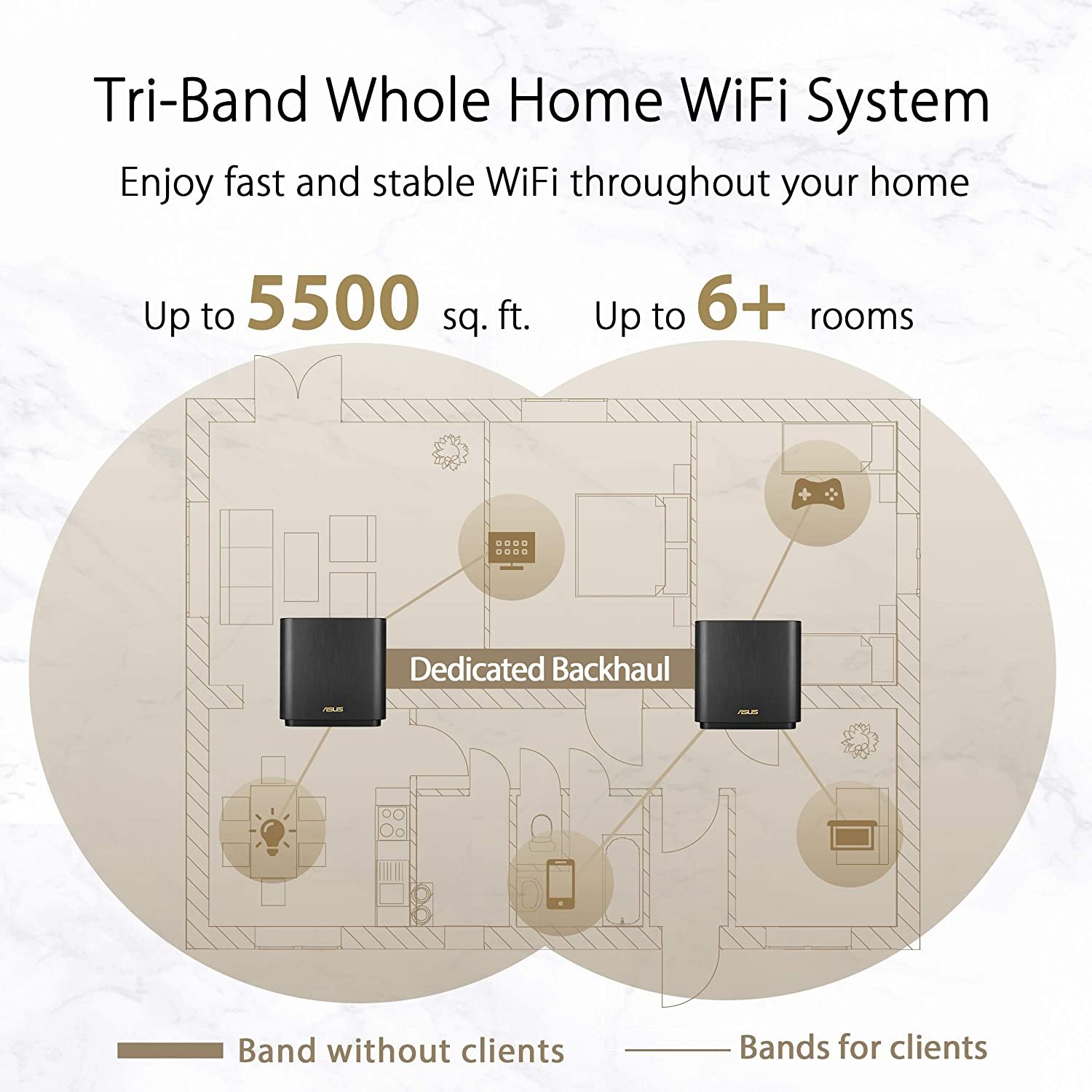

Whole-home CoverageHigh speed tri-band. Stable WiFi.
The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Flexible Network Naming
Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Make the Internet a Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi AX works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in black or white to suit your décor.

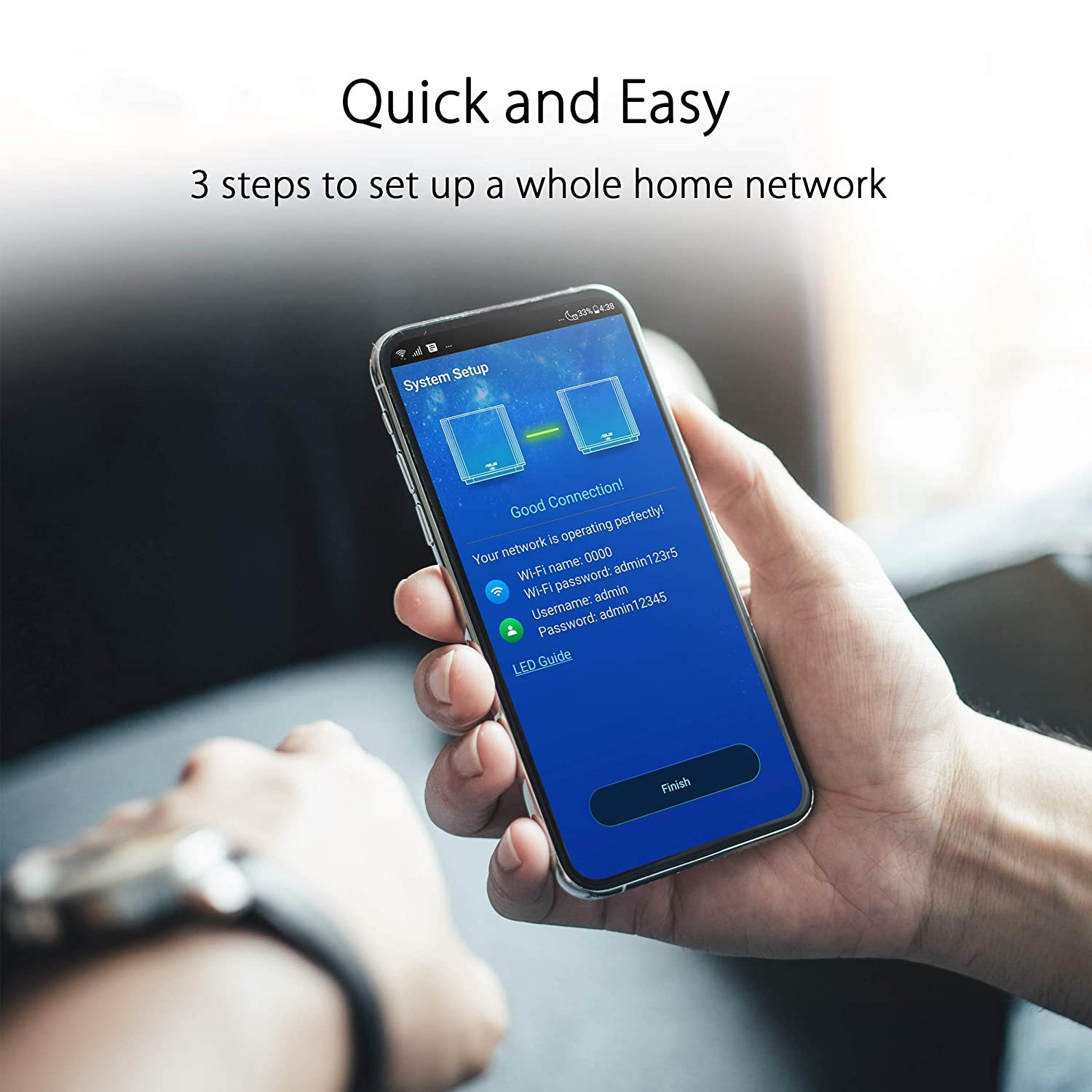

AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Performance
Through Engineering
ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.
Specification :
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| Coverage | Very large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps |
| 802.11b : 1, 2, 5.5, 11 Mbps | |
| 802.11g : 6,9,12,18,24,36,48,54 Mbps | |
| 802.11n : up to 300 Mbps | |
| 802.11ac (5GHZ-1)：up to 867 Mbps | |
| 802.11ac (5GHZ-2)：up to 3466 Mbps | |
| 802.11ax (2.4GHz) : up to 574 Mbps | |
| 802.11ax (5GHZ-1)：up to 1201 Mbps | |
| 802.11ax (5GHZ-2)：up to 4804 Mbps | |
| Antenna | Internal antenna x 6 |
| Transmit/Receive | 2.4 GHz 2 x 2 |
| 5 GHz-1 2 x 2 | |
| 5 GHz-2 4 x 4 | |
| Processor | 1.5 GHz quad-core processor |
| Memory | 256 MB Flash |
| 512 MB RAM | |
| Wi-Fi Technology | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal | |
| 1024-QAM high data rate | |
| 20/40/80/160 MHz bandwidth | |
| Operating Frequency | 2.4G Hz, 5 GHz-1, 5 GHz-2 |
| Encryption | WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection |
| Access control：Parental control, Network service filter, URL filter, Port filter | |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support | IPSec Pass-Through |
| PPTP Pass-Through | |
| L2TP Pass-Through | |
| PPTP server | |
| OpenVPN server | |
| PPTP client | |
| L2TP client | |
| OpenVPN client | |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Ports | RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 |
| USB 3.1 Gen 1 x 1 | |
| Features | Range Boost |
| Router app | |
| MU-MIMO | |
| Smart Connect | |
| Traffic Analyzer | |
| Adaptive QoS | |
| AiProtection Pro | |
| Parental Control | |
| Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3 | |
| VPN server : PPTP Server, OpenVPN Server, IPSec server | |
| VPN client : PPTP client, L2TP client, OpenVPN client | |
| NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay | |
| Mac OS Backup | |
| Enhanced media server (AiPlayer app compatible) | |
| Image : Jpeg | |
| Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg | |
| Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov | |
| AiCloud personal cloud service | |
| 3G/4G data sharing | |
| Printer Server | |
| Multifunctional printer support (Windows only) | |
| LPR protocol support | |
| Download Master | |
| Support bt, nzb, http, ed2k | |
| Support encryption, DHT, PEX and magnet link | |
| Upload and download bandwidth control | |
| Download scheduling | |
| AiDisk file server | |
| Samba and FTP server with account management | |
| IPTV support | |
| Roaming Assist | |
| OFDMA | |
| Beamforming | |
| Button | WPS Button, Reset Button, Power Switch |
| Power Supply | AC Input : 110V~240V(50~60Hz) |
| DC Output : 19 V with max. 1.75 A current | |
| OS Support | Windows® 10 |
| Windows® 8 | |
| Windows® 7 | |
| Mac OS X 10.6 | |
| Mac OS X 10.7 | |
| Mac OS X 10.8 | |
| Dimensions | 160 x 75 x 161.5 mm |
| Weight | 716 g |
| Package Content | ZenWiFi AX |
| RJ-45 Cable | |
| Power Adapter | |
| Quick Start Guide | |
| Warranty Card | |
| Warranty | 3 Years |
