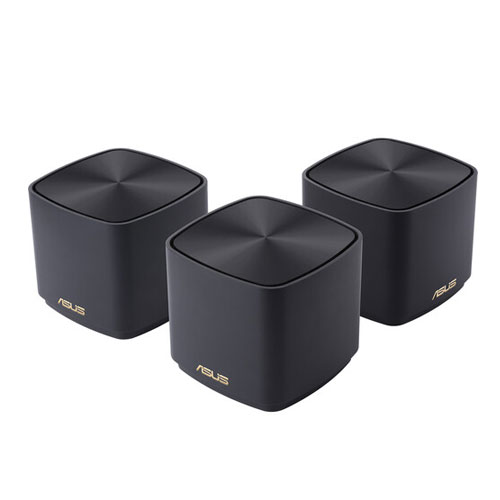

ASUS ZenWiFi AX1800 Mini XD4 Wireless Dual-Band Gigabit Mesh Wi-Fi System (3-Pack, Charcoal Black) 90IG05N0-MA1R1T
Overview :
Cover your home with fast and reliable wireless internet access with the ZenWiFi AX1800 Mini XD4 Wireless Dual-Band Gigabit Mesh Wi-Fi System from ASUS. Featuring three charcoal black dual-band 802.11ax devices, each of which can be configured to perform as the internet router or as a satellite node, this kit is designed to provide up to 4800 square feet of coverage for 4K video streaming, online games, and more. Each ZenWiFi Mini includes a low-profile design, and they can be set up in just three steps using the ASUS Router mobile app for Android and iOS. With the convenience of a mesh network, you can roam across your home while maintaining a steady wireless network connection that’s unified under a single network ID (SSID). You can expand coverage by adding other ASUS AiMesh-compatible devices to your network. The ZenWiFi Mini devices also include two Gigabit Ethernet ports. One may be connected to your cable or DSL modem, or you can use both to provide network access to wired devices such as computers, smart TVs, and video game consoles. The ZenWiFi Mini system is compatible with Amazon Alexa and IFTTT (If This Then That) services to help manage your smart home’s daily routines.
Fast Wi-Fi
Broad Coverage
Three-Step Setup
Wired Connections
Network Security
Smart Home Support
AiMesh Technology
Specification :
Number of Units | 3 |
Connectivity | |
Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
Ports | Each Unit: |
1 x RJ45 Gigabit Ethernet (WAN/LAN) | |
1 x RJ45 Gigabit Ethernet (LAN) | |
Number of Antennas | Each Unit: |
2 x Internal | |
MU-MIMO Support | 2 x 2 |
Beamforming Support | Yes |
Wireless Security | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS |
Bluetooth | None |
Communication Protocol | IFTTT |
Virtual Assistant Support | Amazon Alexa |
General | |
Throughput | 1775 Mb/s Total |
2.4 GHz: 574 Mb/s | |
5 GHz: 1201 Mb/s | |
Guest Network Support | Yes |
Mobile Operating System Support | Android |
iOS | |
Operation Modes | Access Point, Mesh, Wireless Router |
Supported IEEE Standards | 802.11ac, 802.11ax, 802.11a, 802.11b, 802.11g, 802.11n |
Supported Protocols | DMZ |
IGMP Snooping | |
IPv4 | |
IPv6 | |
Hardware | |
Memory | 256 MB |
Flash Memory | 256 MB |
Electrical | |
AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC at 1.5 A |
Physical | |
IP Rating | None |
Dimensions | 3.5 x 3.1 x 3.5″ / 9.0 x 8.0 x 9.0 cm (Each Unit) |
Weight | 10.4 oz / 295 g (Each Unit) |
Packaging Info | |
Package Weight | 4.19 lb |
Box Dimensions (LxWxH) | 14.6 x 7.9 x 5.2″ |
