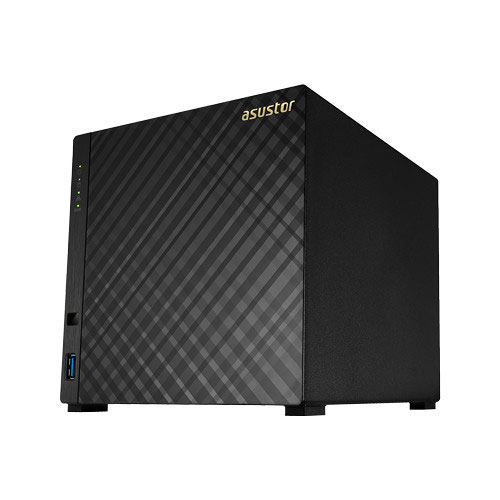

Asustor AS1004T 4-Bay NAS Server
Overview :
The Asustor AS1004T 4-Bay NAS Server is a compact entry-level NAS ideal for your home as a multimedia server. It is equipped with a 1 GHz Marvell ARMADA-385 dual-core processor and 512MB of RAM. This enclosure is capable of fitting four 3.5″ hard drives in a variety of RAID configurations including RAID 0,1,5,6,10,JBOD, and Single Disk to suit all your storage needs. Together with Asustor’s ADM operating system, this NAS can achieve up to 110 MB/s and 96 MB/s read and write speeds respectively. Connect to your network via a Gigabit Ethernet port, and use the two USB 3.0 Type-A ports for additional device compatibility.
The Asustor NAS provides optimal data protection through RAID technology, automatic backup solutions, as well as 256-bit AES folder encryption. When paired with mobile applications (iOS and Android), Asustor’s exclusive Cloud Connect technology lets you access data on your NAS device from anywhere. Additionally, the NAS device can be used with virtual environments such as VMware, Citrix, and Hyper-V. It also supports the use of NFS and iSCSI in the creation of shared storage for virtual environments.
Ideal Home Multimedia Server
Seamless Cross-Platform File Sharing
Asustor NAS devices provide seamless cross-platform files sharing, allowing you to easily connect to your NAS regardless if you’re using Windows, Mac, or Unix operating systems. The transfer protocols that you may use to connect to an Asustor NAS are as follows:
- Windows: CIFS/SMB, FTP, and WebDAV
- Mac OS X: AFP, SMB, NFS, FTP, and WebDAV
- Linux: NFS, SMB, FTP, and WebDAV
Hardware and Folder Encryption
Cloud Storage & Access
Back up your data to popular cloud storage services such as Amazon S3, Google Drive, HiDrive, and OneDrive. If your NAS is damaged, you’ll be able to restore your data from the cloud. Asustor also offers multiple mobile apps that give you access to your NAS while on the go such as:
- AiData
- AiRemote
- AiMusic
- AiMaster
- AiFoto
- AiVideos
- AiSecure
- AiDownload
Video Surveillance
Specification :
| Performance | |
| Drive Bays | 4 x 3.5″ SATA II/III Drive Bays |
| Processor | Marvell ARMADA-385 1 GHz (Dual-Core) Processor |
| Memory | 512 MB not expandable |
| Network Protocols | CIFS / SMB, SMB 2.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog |
| File System Format | Internal Disk: EXT4 |
| External Disk: FAT32, NTFS, EXT3, EXT4, HFS | |
| Storage Management | Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Support for Online RAID Level Migration | |
| Support for Online RAID Capacity Expansion | |
| iSCSI | Maximum Targets: 64 |
| Maximum LUNs: 64 | |
| Maximum Snapshot Versions of a Single LUN: 256 | |
| Target Masking | |
| LUN Mapping | |
| ISO File Mounting | |
| Supports MPIO | |
| Persistent (SCSI-3) Reservations | |
| Disk Management | Scheduled Bad Block Scans |
| Scheduled S.M.A.R.T Scans | |
| Network | TCP/IP (IPv4 & IPv6) |
| Link Aggregation: 0 | |
| Jumbo Frame (MTU) | |
| VLAN | |
| Cloud Connect | |
| Wireless Network | |
| DDNS and EZ-Router | |
| Supports Wake-on-LAN (WOL) | |
| Backup Solutions | Rsync (Remote Sync) Backup |
| Cloud BackupFTP Backup | |
| External Backup | |
| System Administration | Log Type: System Log, Connection Log, File Access Log |
| Real-time Online User Monitor | |
| Real-time System Monitor | |
| Network Recycle Bin | |
| User Quota | |
| Virtual Drive (ISO Mounting, Maximum 16) | |
| UPS Support | |
| Access Control | Maximum Number of Users: 1024 |
| Maximum Number of Groups: 256 | |
| Maximum Number of Shared Folders: 256 | |
| Maximum Number of Concurrent Connections: 128 | |
| Supports Windows Active Directory | |
| Security | AES 256-Bit Folder Encryption |
| Firewall: Prevent Unauthorized Access | |
| Alert Notifications: email, SMS | |
| Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH | |
| Built-in Hardware Encryption Engine: AS70/61/62/10 Series | |
| Input/Output Connectors | |
| Interface | SATA II/III |
| Ports | 1 x Gigabit Ethernet |
| 2 x USB 3.0 | |
| External Device Support | Supports USB External Storage Devices |
| USB Wi-Fi Dongle Support | |
| Bluetooth Dongle/Speaker Support | |
| USB Printer Support | |
| USB DAC Support | |
| CD ROM Drive/DVD ROM Drive/Blu-ray ROM | |
| System Requirements | |
| Mac | OS X 10.6 and higher |
| Windows | XP, Vista, 7, 8, Server 2003, Server 2008, Server 2012 |
| OS Compatibility | UNIX, Linux, and BSD |
| Browser Compatibility | Internet Explorer 9 and higher, FireFox, Chrome, Safari |
| General | |
| Cooling | 120 mm system fan |
| Certifications | FCC, CE, VCCI, BSMI, C-TICK |
| Supported Languages | German, English, French, Italian, Dutch, Russian, Japanese, Hangul, Simplified Chinese, Traditional Chinese, Czech, Polish, Swedish, Danish, Norwegian, Finnish, Portuguese, Spanish, Turkish, Hungarian |
| Noise Level | In Operation: ~32 dB |
| Power Requirements | 100 – 240 VAC |
| Power Consumption | Operation: 24.4 W |
| Disk hibernation: 11.5 W | |
| Operation Temperature | 40 to 95°F / 5 to 35°C |
| Humidity | 5 to 95% RH |
| Dimensions (WxHxD) | 6.5 x 6.5 x 8.6″ / 165 x 164 x 218 mm |
| Weight | 3.31 lbs / 1.5 kg |
| Packaging Info | |
| Package Weight | 6.2 lb |
| Box Dimensions (LxWxH) | 12.756 x 9.606 x 8.268″ |
