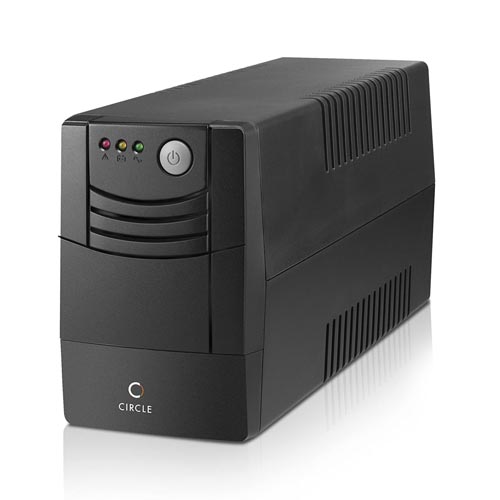

Circle Power Backup 600VA UPS
Overview :
BACKUP POWER
Protects computers from sudden power loss with the backup battery, and provides sufficient time to save valuable files as well as shut down the system safely.
VOLTAGE STABILIZER
Protects computer from blackouts, sags, and other voltage irregularities.
USER FRIENDLY
Automatic line-to-battery switchover and comprehensive display eases operations.
Specification :Â
| VA/W | 600VA/360W |
| Voltage | 230VAC |
| Voltage Range | 140-300VAC |
| Frequency | >40Hz (Auto Sensing) |
| Voltage | 230VAC |
| Voltage Regulation (Batt. Mode) | /-10% |
| Frequency | 50Hz |
| Frequency Regulation (Batt. Mode) | /-1 Hz |
| Output Waveform | Modified Sinewave |
| Battery Type | 12V7Ah x 1 |
| Backup Time (15″ monitor) | 10-15 minutes |
| Recharge Time | 6 hours to 90% after complete discharge |
| Typical | 4-8 ms |
| AC Mode | Green lighting |
| Battery Mode | Yellow flashing |
| Fault | Red Lighting |
| Backup Mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 second |
| Fault | Continuously sounding |
| Full Protection | overload, overcharge and discharge protection |
| Net Weight | 4.5kgs |
| Operating Environment | 0- 50°C, 0-90 % relative humidity (non-condensing) |
| Noise Level | Less than 40dB |
| UPS Warranty | 2 Year |
| Battery Warranty | 1 Year |
