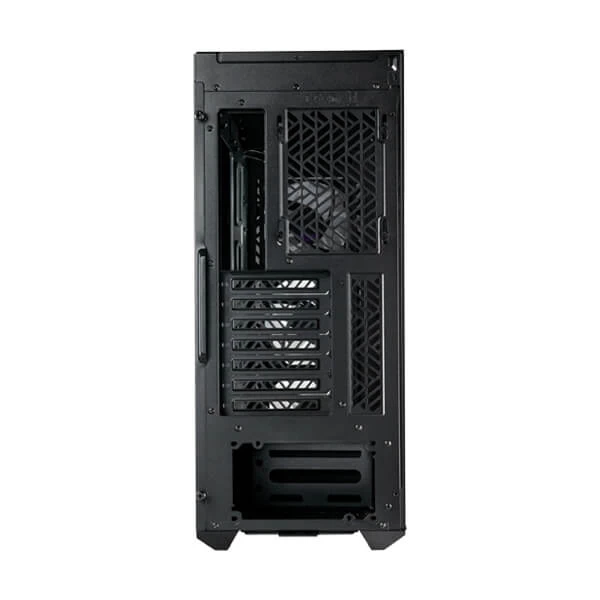

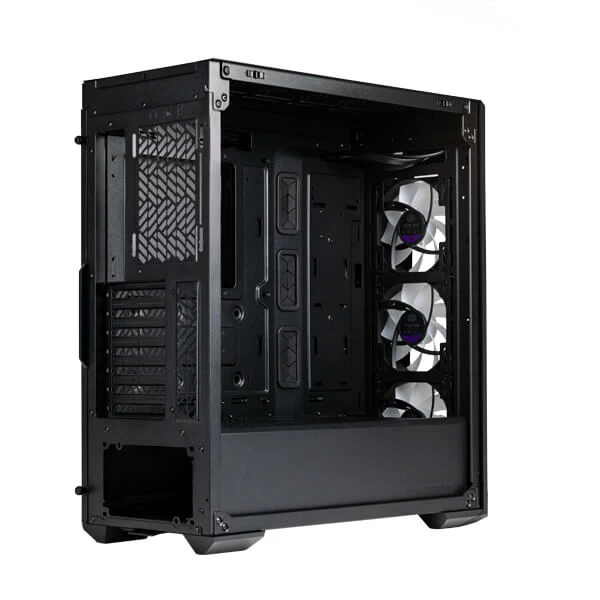

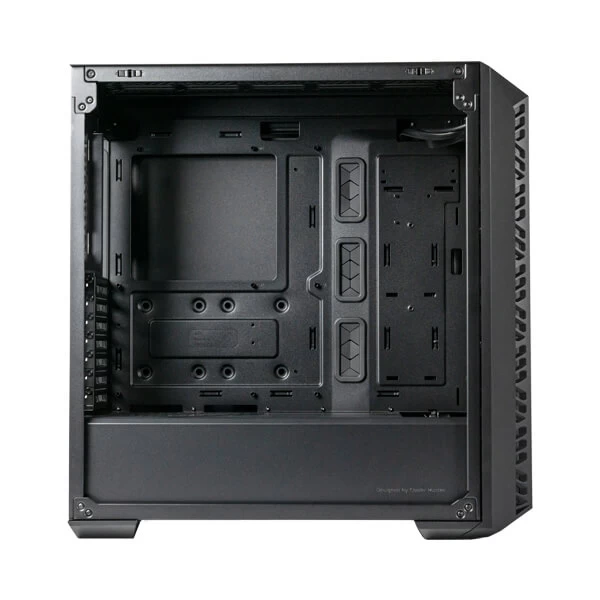

Cooler Master MasterBox MB520 Mesh ARGB (ATX) Mid Tower Cabinet (Black) MB520-KGNN-S00
Overview :
FineMesh Performance Front Panel – Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Three CF120 ARGB Fans Included – Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.
Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
Specification :
| Product Number | MB520-KGNN-S00 |
| Exterior Color | Black |
| Materials | Exterior-Mesh, Steel, ABS Plastic, Tempered Glass |
| Left Side Panel-Tempered Glass | |
| Dimensions | incl. Protrusions-502x 210 x 498mm |
| (L x W x H) | Body size-443x 210 x 498mm |
| Volume | 50L |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* |
| (*up to 12” x 10.7” motherboards, may impact cable management feature) | |
| Expansion Slots | 7 |
| Drive Bays | 5.25“ ODD-0 |
| 3.5” HDD-2 | |
| 2.5” SSD-3 | |
| I/O Panel | USB Ports-1 x USB 3.2 Gen1 Type-A + 1x USB 3.2 Gen2 Type-C |
| Audio In / Out-1x 3.5mm Headset Jack (Audio + Mic) | |
| Others-1x RESET/ARGB button | |
| Included Accessories | ARGB Fans Hub |
| Included Fan(s) | Top-N/A |
| Front-3 x CF120 ARGB | |
| Rear-N/A | |
| Fan Support | Top-3 x 120mm / 2 x 140mm |
| Front-3 x 120mm / 2 x 140mm | |
| Rear-1 x 120mm | |
| Radiator Support | Top-120/140/240/280/360mm |
| (recommended maximum thickness – 55mm） | |
| Front-120/140/240/280/360mm | |
| Rear-120mm | |
| Clearances | CPU Cooler-165mm / 6.49” |
| Power Supply-200mm | |
| (Recommended up to 170mm) | |
| Graphics Card-410mm / 16.10” | |
| Dust Filters | Bottom, Front, Top |
| Power Supply Support | ATX |
| Warranty | 2 Years |
