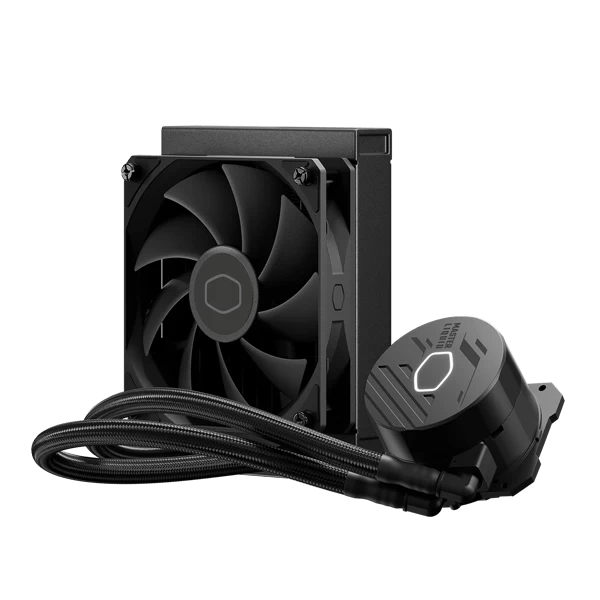

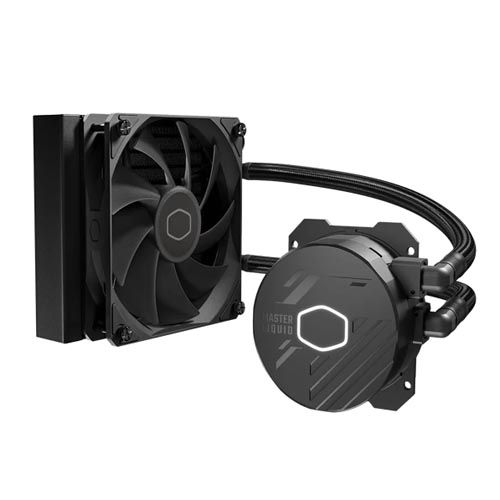

Cooler Master MasterLiquid 120L Core 120mm CPU Liquid Cooler MLW-D12M-A17PK-R1
Overview :
- New Gen S Dual Chamber Pump
- Expanded Radiator Surface
- 120mm Fan
- Clean Classic Design
- CryoFuze Performance Thermal Paste
Cooler Master has built upon the classic MasterLiquid L Series to present a redesigned and improved release of the MasterLiquid 120L Core. Featuring new design elements that bring a classic minimalist look to the series, the MasterLiquid 120L Core represents Cooler Master’s ongoing innovative spirit.
Gen S Dual Chamber Pump
Redesigned copper base targets heat spots with precision along with boosted water flow and pressure for enhanced cooling performance.
Expanded Radiator Surface
Expanded radiator fin surface accelerates heat dissipation for superior cooling.

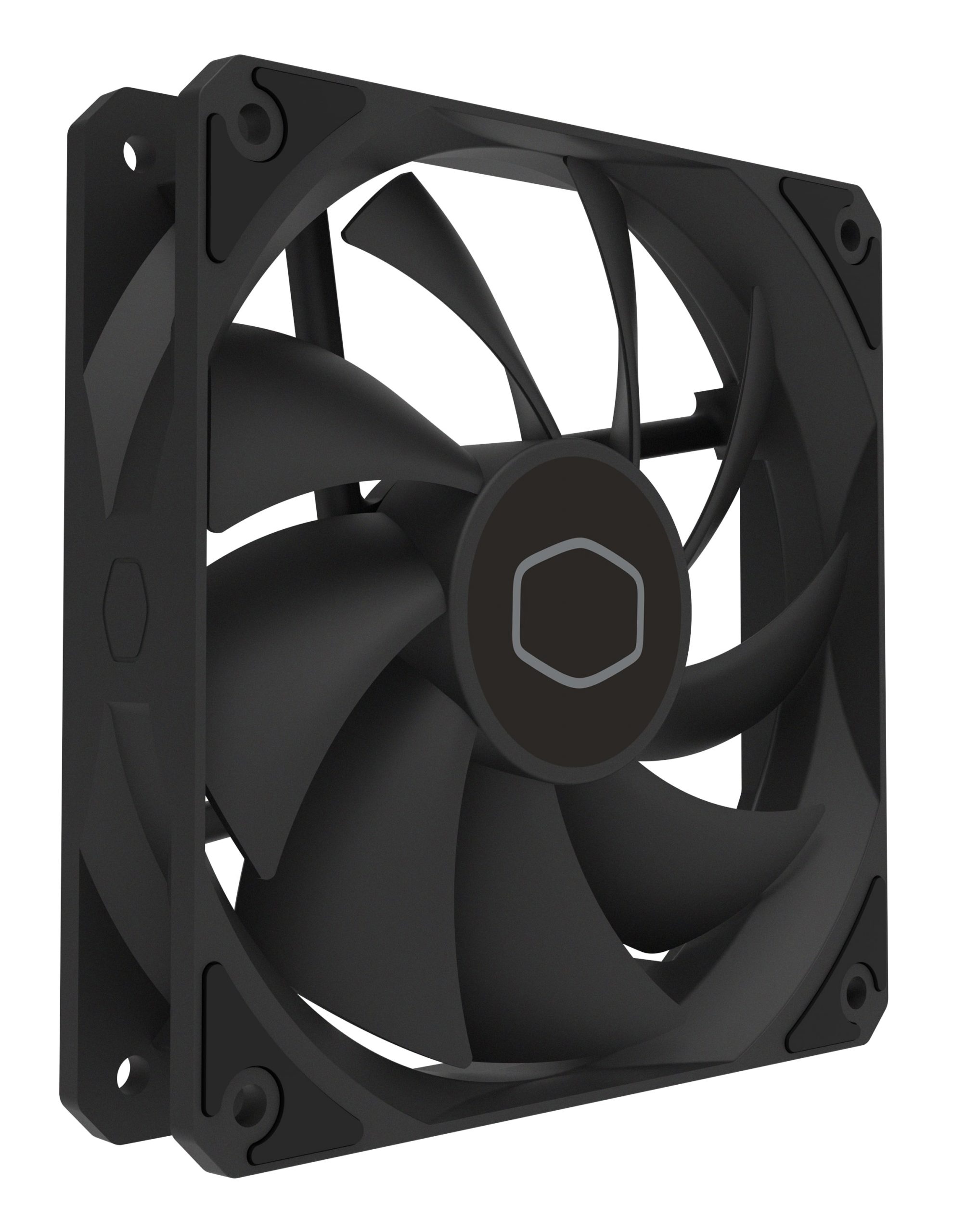

120mm Fans
An upgraded 120mm fan delivers optimal radiator performance.
CryoFuze Thermal Paste
Includes premium CryoFuze thermal paste for exceptional heat conductivity.
CLEAN CLASSIC DESIGN
Clean minimalist design brings a refreshed modern facelift to the pump cover.
Specification :
| Product Number | MLW-D12M-A17PK-R1 |
| Exterior Color | Black |
| CPU Socket | LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 157 x 119.6 x 27.2 mm / 6.2 x 4.7 x 1.1 inch |
| Pump Dimensions | 81 x 76 x 47 mm / 3.2 x 3 x 1.9 inch |
| Pump MTTF | >70,000 Hours |
| Pump Noise Level | 12 dBA (Max) |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.96W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 1 PC |
| Fan Speed | 650-1750 RPM ± 10% |
| Fan Airflow | 71.93 CFM (Max) |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Pressure | 1.86 mmH₂O (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan MTTF | >160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26A |
| Fan Safety Current | 0.37A |
| RAM Clearance | N/A |
| Series | MasterLiquid Lite |
| Cooler Type | Liquid Cooler |
| Radiator Size | 120 |
| Warranty | 3 Years |
